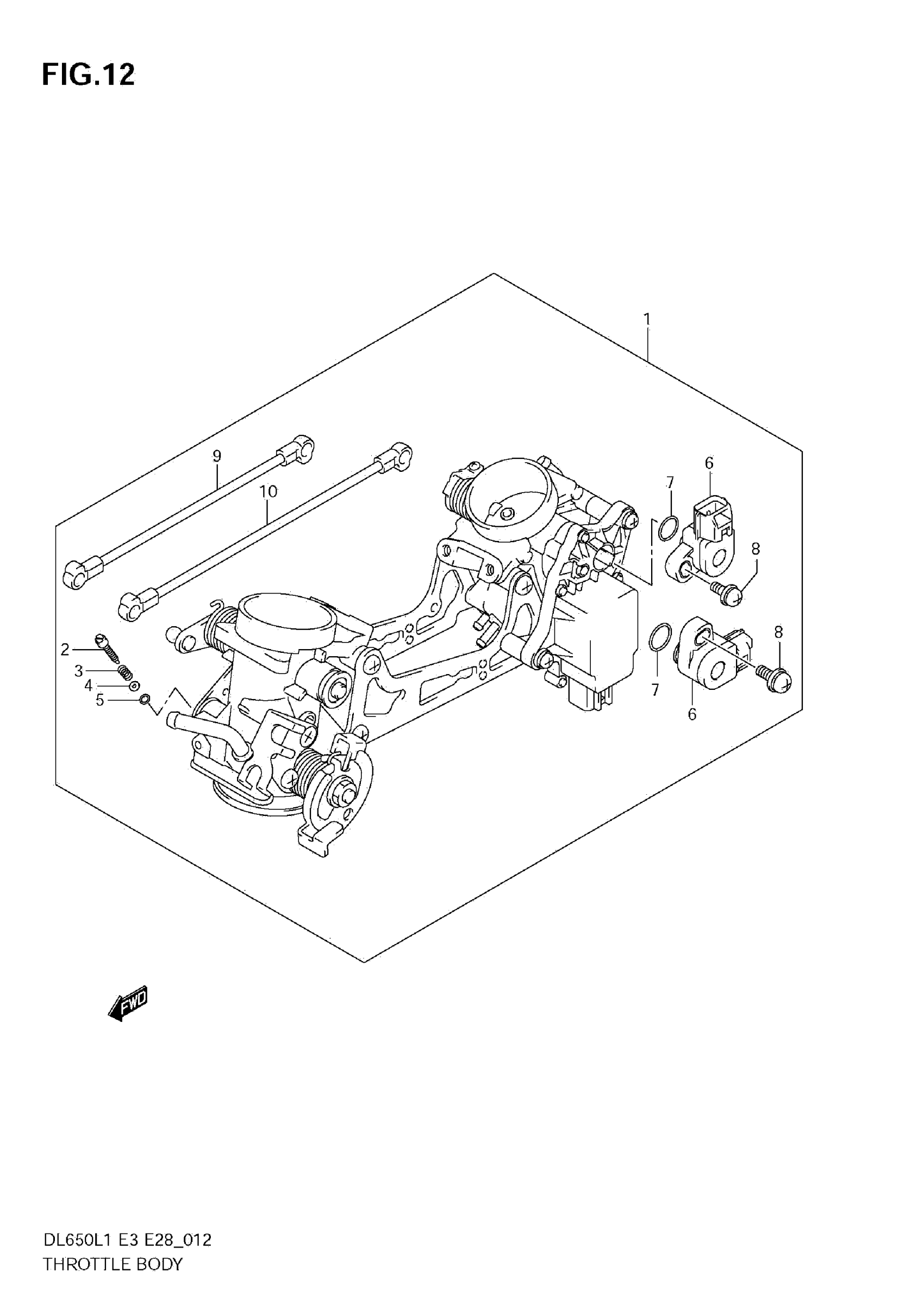

Suzuki DL650AL1 (2011) THROTTLE BODY (DL650 L1 E28) Diagram

#

Description
Price

1

THROTTLE BODY

13405-27G20

Unavailable

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING This part replaces 13295-29900.

13295-29901

$4.34

6

SENSOR ASSY

13580-27G21

$145.53

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

8

SCREW

13605-02F00

$3.71

9

ROD ASSY

13552-17G00

$29.33

10

ROD ASSY

13552-16G00

$29.33
