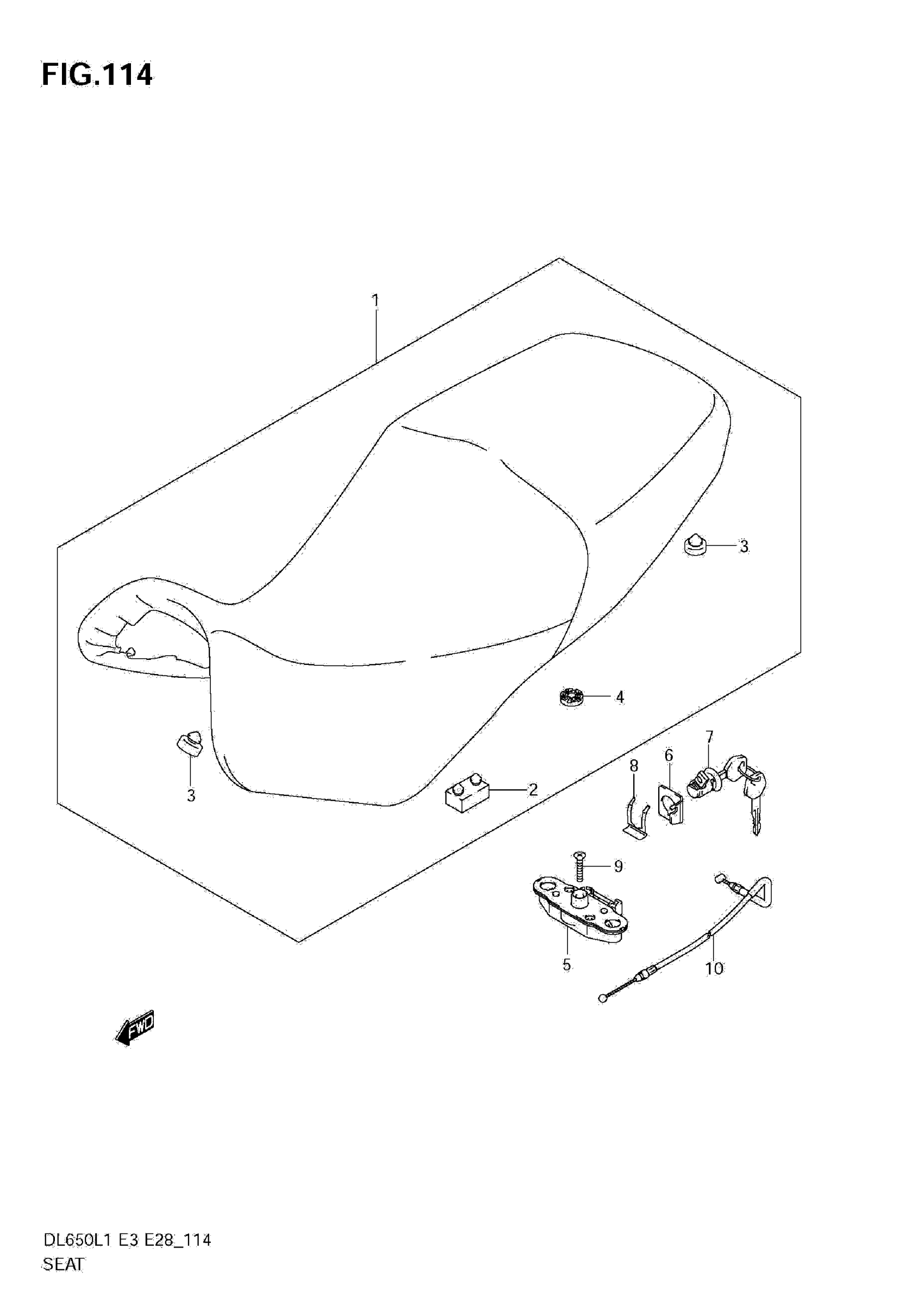

Suzuki DL650AL1 (2011) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-27G00-H1N.

45100-27G01-H1N

$451.73

2

CUSHION

45149-31300

$3.56

3

CUSHION

09321-10012

$2.92

4

CUSHION

45213-13601

$2.79

5

BRACKET, SEAT SUPPORT REAR

45220-47H00

$138.38

6

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

7

LOCK SET, SEAT

95700-14810

$107.30

8

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

9

SCREW

02122-0630B

$2.06

10

CABLE, SEAT LOCK

45280-27G00

Unavailable
