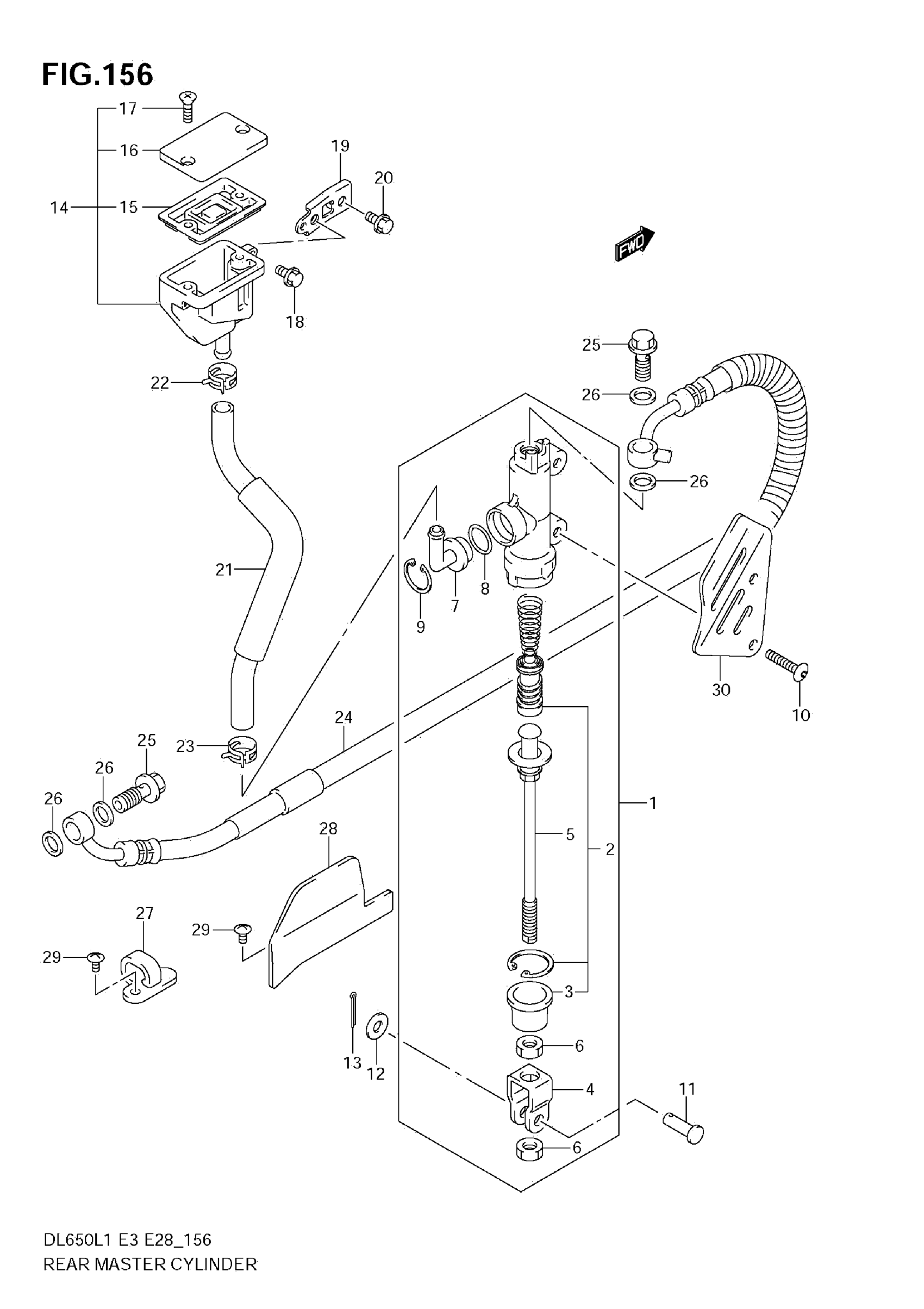

Suzuki DL650AL1 (2011) REAR MASTER CYLINDER (DL650 L1 E33) Diagram

#

Description
Price

1

CYLINDER ASSY, RR MASTER

69600-06G00

$301.50

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-19A00

$16.87

5

.ROD, PUSH

69670-03G00

$44.07

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW (6X25)

09139-06029

$5.36

11

PIN

09200-06068

$4.11

12

WASHER

08322-0106B

$2.26

13

COTTER PIN

04111-2015A

$1.49

14

TANK ASSY,RR RESERVOIR

69740-01D02

$70.49

15

DIAPHRAGM

59667-04700

$9.78

16

CAP

59669-05D00

$16.76

17

SCREW

69689-04A00

$1.78

18

BOLT

01547-0612A

$2.03

19

BRACKET, RR RESERVOIR TANK

69750-27G10

Unavailable

20

BOLT

01547-0612A

$2.03

21

HOSE, RESERVOIR TANK

69730-27G00

$31.12

22

CLIP

09401-13417

$2.26

23

CLIP

09401-12404

$2.34

24

HOSE,RR BRAKE This part replaces 69480-27G10.

69480-27G11

$126.65

25

UNION

09360-10062

$6.43

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

GUIDE, REAR BRAKE HOSE This part replaces 61196-27G00.

61196-27G10

Unavailable

28

GUIDE, RR BRAKE HOSE FR This part replaces 61196-06G00.

61196-06G10

$19.38

29

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

30

COVER, RR MASTER CYLINDER

69641-06G00

Unavailable
