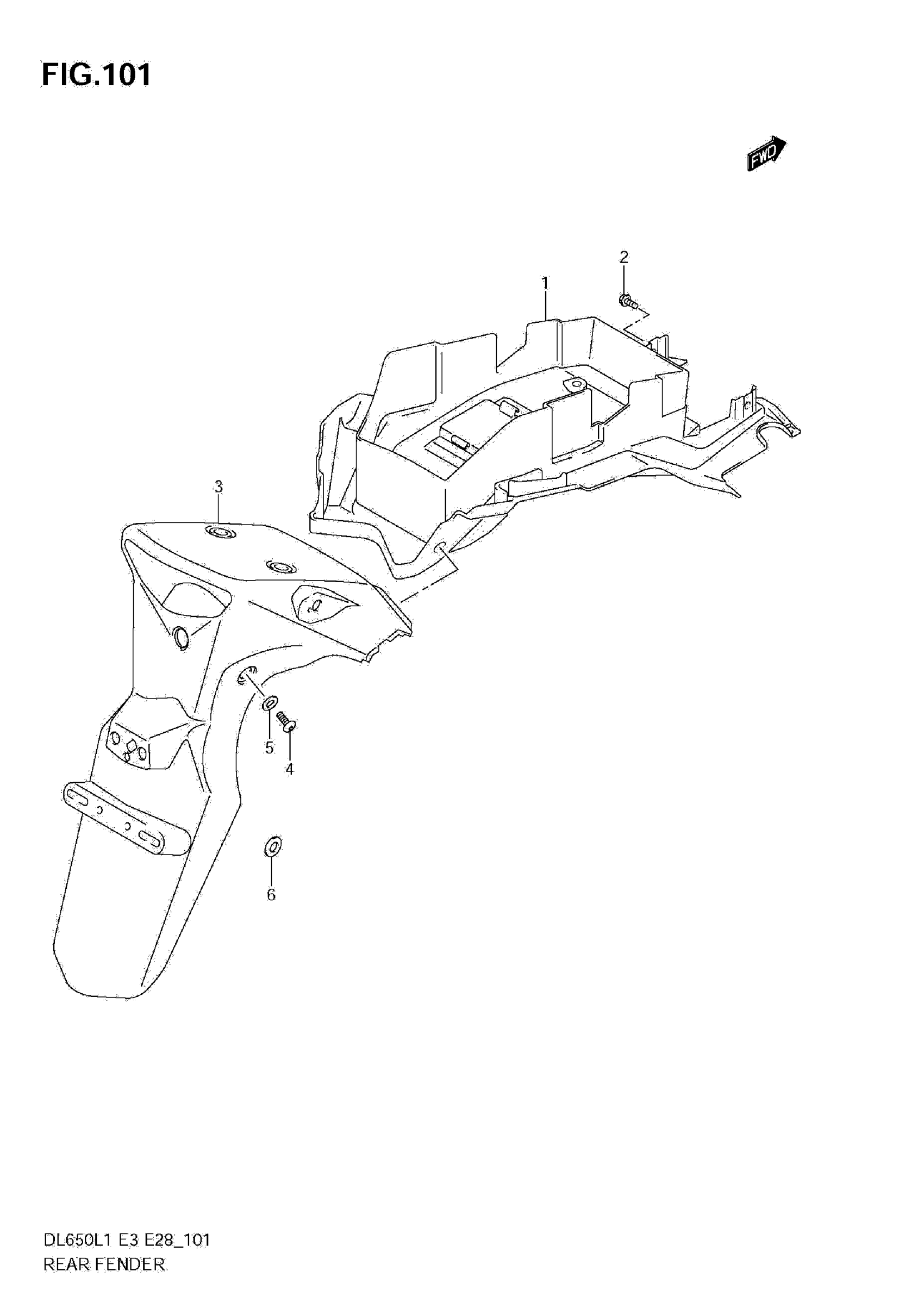

Suzuki DL650AL1 (2011) REAR FENDER (DL650A L1 E3) Diagram

#

Description

Price

1

FENDER, REAR FRONT

63111-27GA1

$197.60

2

BOLT (6X12)

09116-06210

$2.68

3

FENDER, REAR (BLACK)

63112-27G10-5PK

$173.90

4

SCREW (6X16)

09139-06140

$4.62

5

WASHER (6.5X18X1.6)

09160-06156

$2.52

6

WASHER

08322-0106B

$2.24
