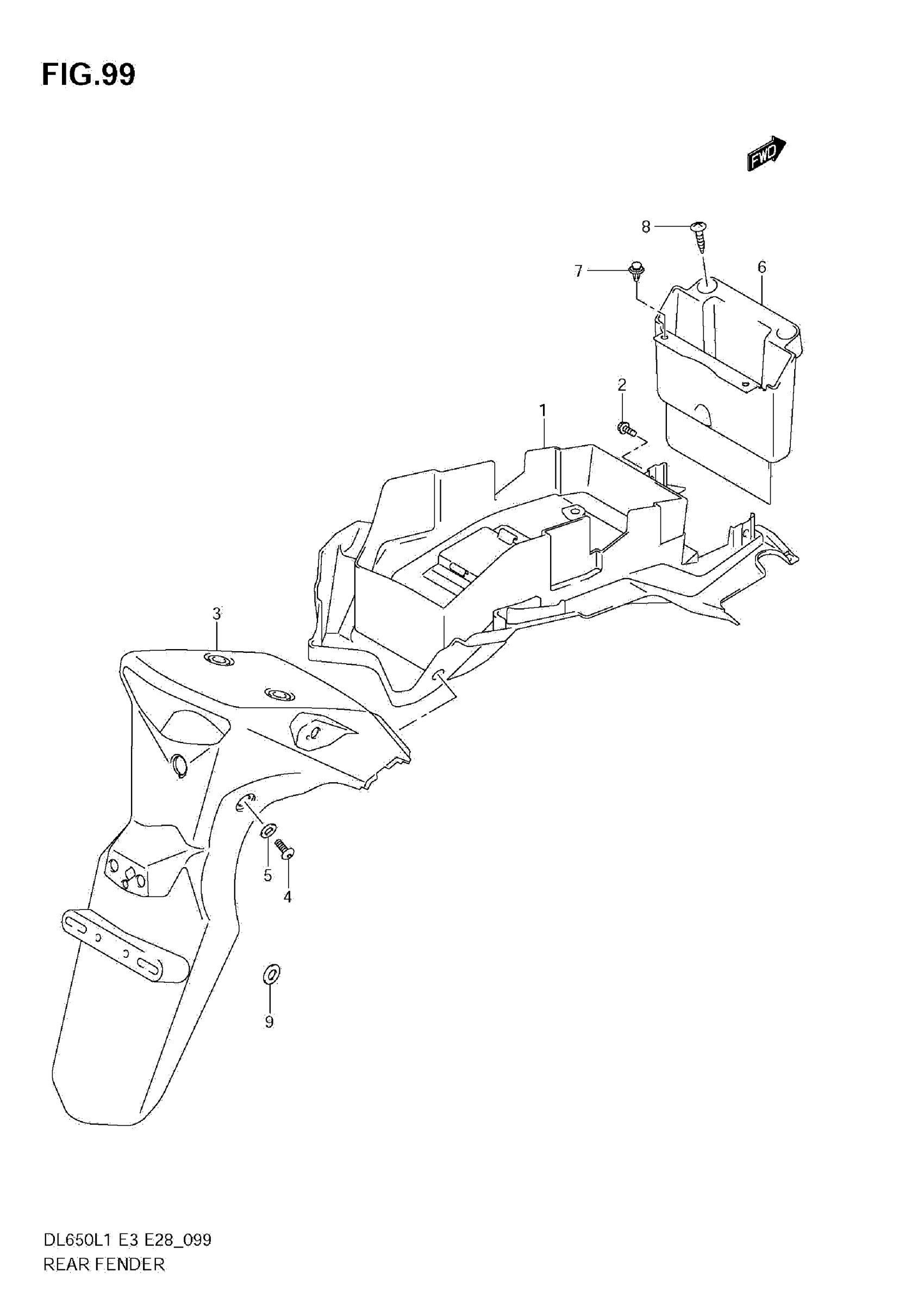

Suzuki DL650AL1 (2011) REAR FENDER (DL650 L1 E28) Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-27GA1

$197.60

2

BOLT (6X12)

09116-06210

$2.68

3

FENDER, REAR (BLACK)

63112-27G10-5PK

$173.90

4

SCREW (6X16)

09139-06140

$4.62

5

WASHER (6.5X18X1.6)

09160-06156

$2.52

6

COVER, LOWER

55667-27G00

Unavailable

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

SCREW

03541-0516A

$1.37

9

WASHER

08322-0106B

$2.24
