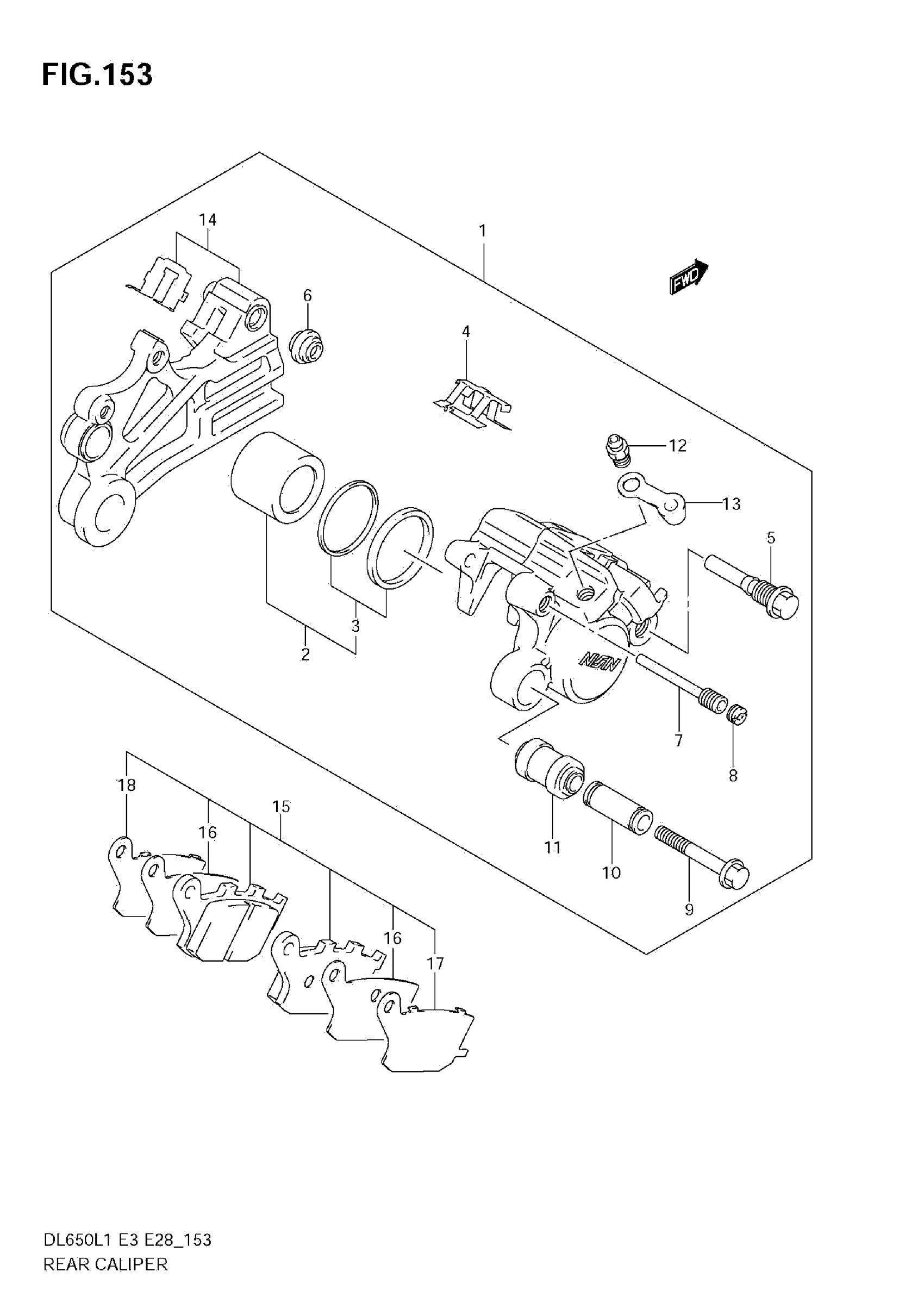

Suzuki DL650AL1 (2011) REAR CALIPER (DL650A L1 E33) Diagram

Description

Price

CALIPER ASSY, REAR

69100-27G00-999

Unavailable

PISTON SET

69100-04810

$47.22

..SEAL SET,PISTON

69100-04820

$8.77

.SPRING,PAD

69115-06G00

$13.50

BOLT

69105-04F00

$14.08

BOOT

59303-14500

$5.52

PIN, HANGER

69141-40F00

$29.48

PLUG

59146-21E10

$6.15

BOLT

69182-04F00

$9.07

SLEEVE

69185-04F00

$18.50

.BOOT,SLEEVE

69186-04F00

$13.22

BLEEDER

59121-01A00

$8.73

CAP

59122-01A00

$4.34

BRACKET

69150-27G00

Unavailable

PAD & RETAINER SET

69100-06830

$63.44

INSULATOR

69132-06G00

$20.80

RETAINER

69133-06G00

$15.75

RETAINER

69134-06G00

$15.45
