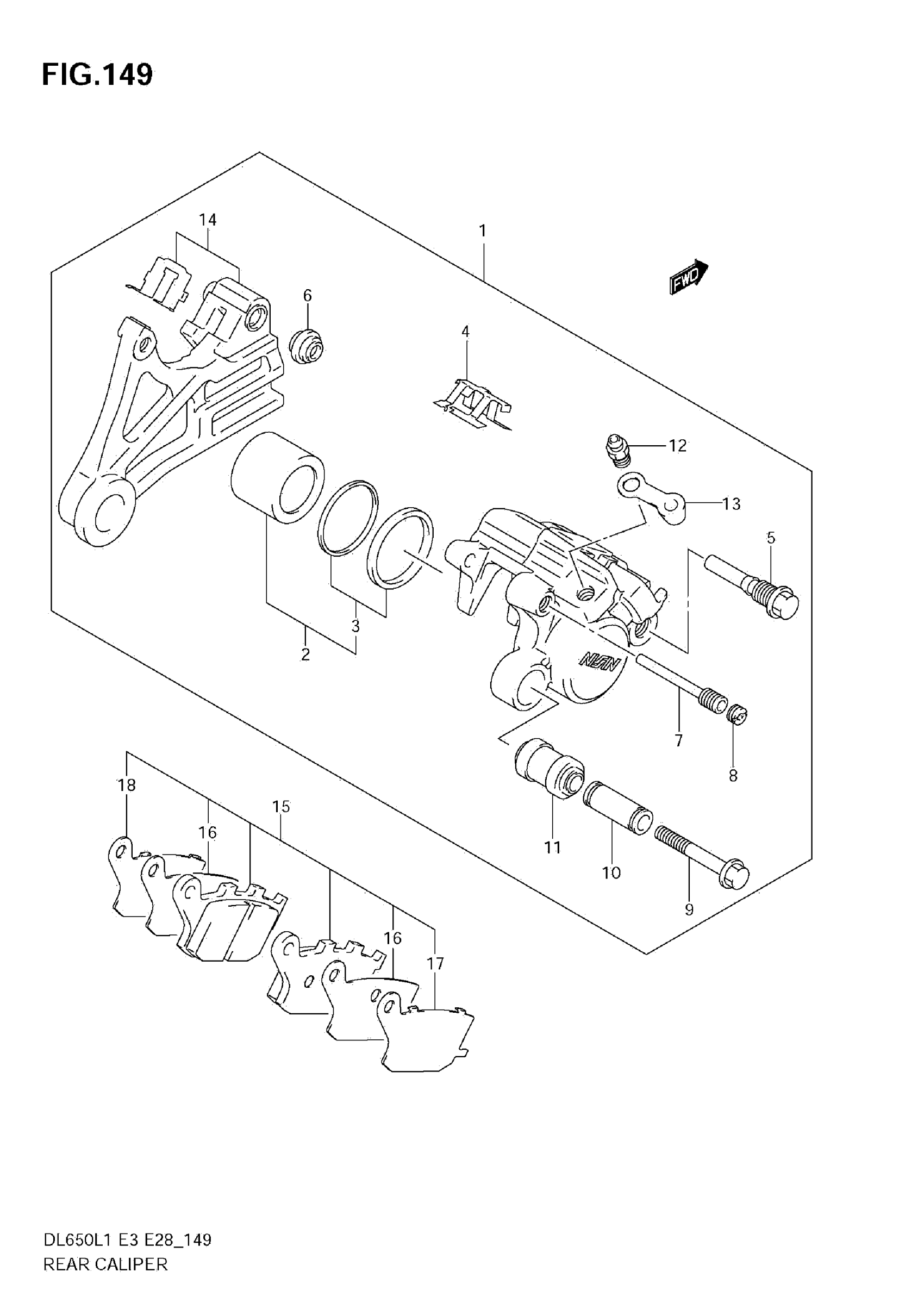

Suzuki DL650AL1 (2011) REAR CALIPER (DL650 L1 E28) Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-06G00-999

$327.83

2

PISTON SET

69100-04810

$44.45

3

..SEAL SET,PISTON

69100-04820

$8.27

4

.SPRING,PAD

69115-06G00

$12.71

5

BOLT

69105-04F00

$13.26

6

BOOT

59303-14500

$5.06

7

PIN, HANGER

69141-40F00

$27.76

8

PLUG

59146-21E10

$5.62

9

BOLT

69182-04F00

$8.54

10

SLEEVE

69185-04F00

$20.88

11

.BOOT,SLEEVE

69186-04F00

$12.45

12

BLEEDER

59121-01A00

$7.99

13

CAP

59122-01A00

$3.97

14

BRACKET

69150-06G00

$168.12

15

PAD & RETAINER SET

69100-06830

$56.40

16

INSULATOR

69132-06G00

$23.48

17

RETAINER

69133-06G00

$17.78

18

RETAINER

69134-06G00

$17.43
