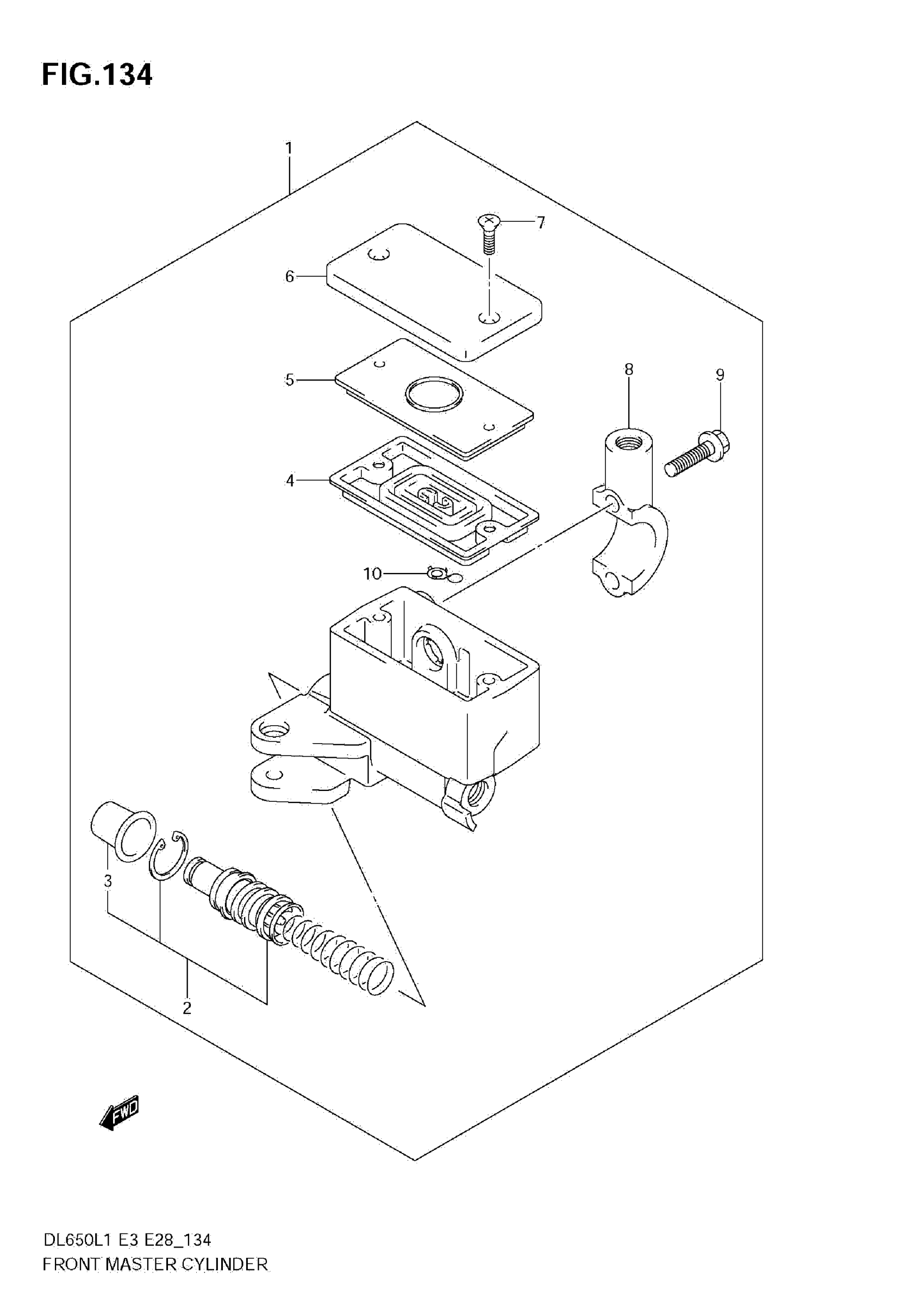

Suzuki DL650AL1 (2011) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10G10

$352.80

2

PISTON/CUP SET

59600-45850

$37.16

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-49460

$8.95

5

PLATE, DIAPHRAGM

59668-41C00

$8.54

6

CAP

59669-10G00

$43.22

7

SCREW

69689-49300

$1.81

8

HOLDER

59671-32F00

$17.87

9

BOLT (6X22)

59675-02FA0

$3.49

10

PROTECTOR

59664-32F00

$13.20
