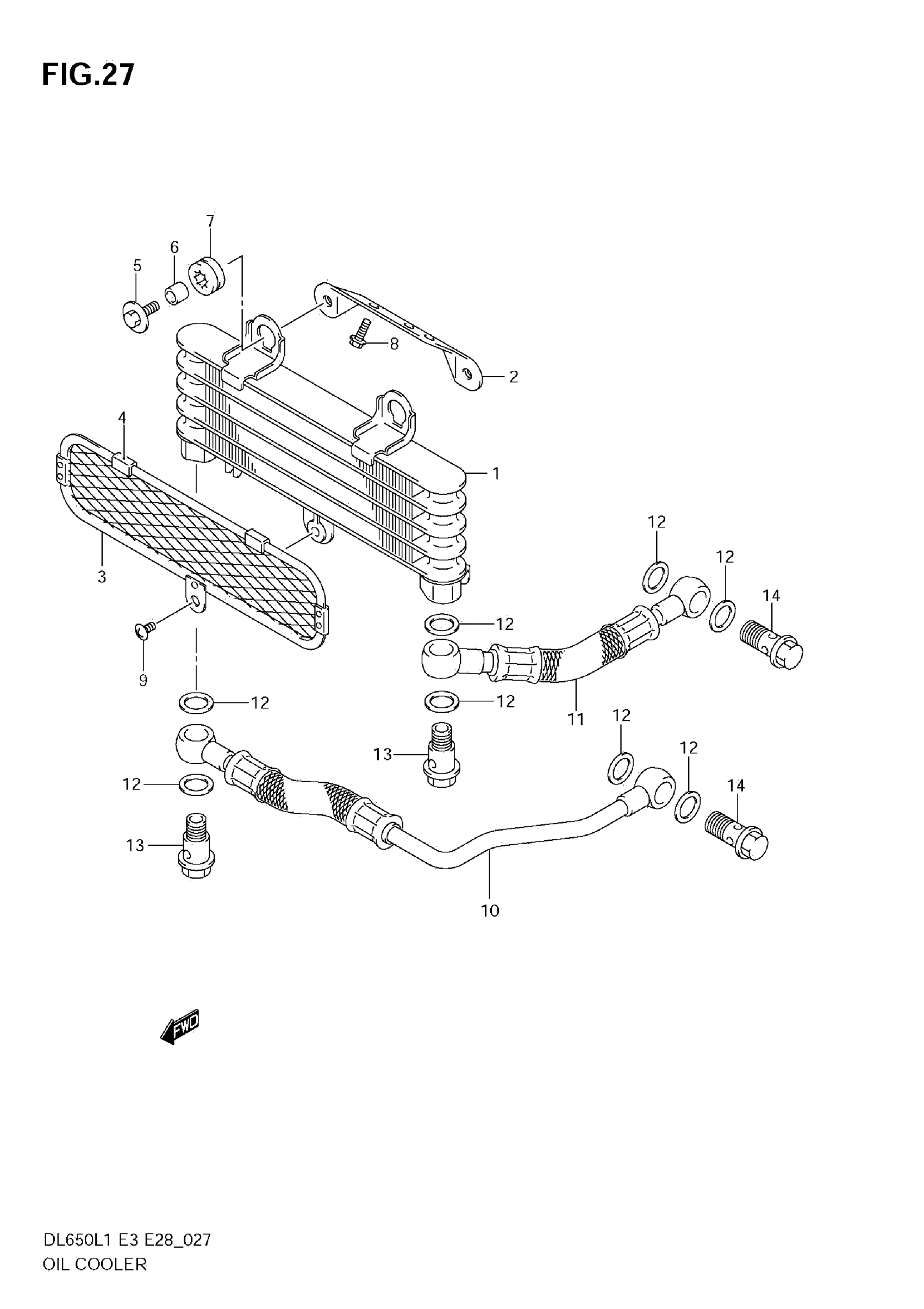

Suzuki DL650AL1 (2011) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-27G00

Unavailable

2

BRACKET, OIL COOLER

16620-27G00

$9.90

3

GUARD,OIL COOLE This part replaces 16650-27G01.

16650-27G02

$30.92

4

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

5

BOLT (6X20)

09116-06167

$2.19

6

SPACER (6.5X10X10)

09180-06310

$1.91

7

CUSHION

09320-10055

$4.50

8

BOLT

01550-0616A

$1.97

9

SCREW This part replaces 02142-0510A.

02142-0510B

$1.78

10

HOSE,OIL COOLER This part replaces 16460-17G00.

16460-17G01

$167.60

11

HOSE, OIL COOLER LH

16470-17G00

$124.28

12

.GASKET (14X20X1.5)

09168-14015

$2.03

13

UNION

09360-12012

$11.57

14

UNION

09360-14012

$10.86
