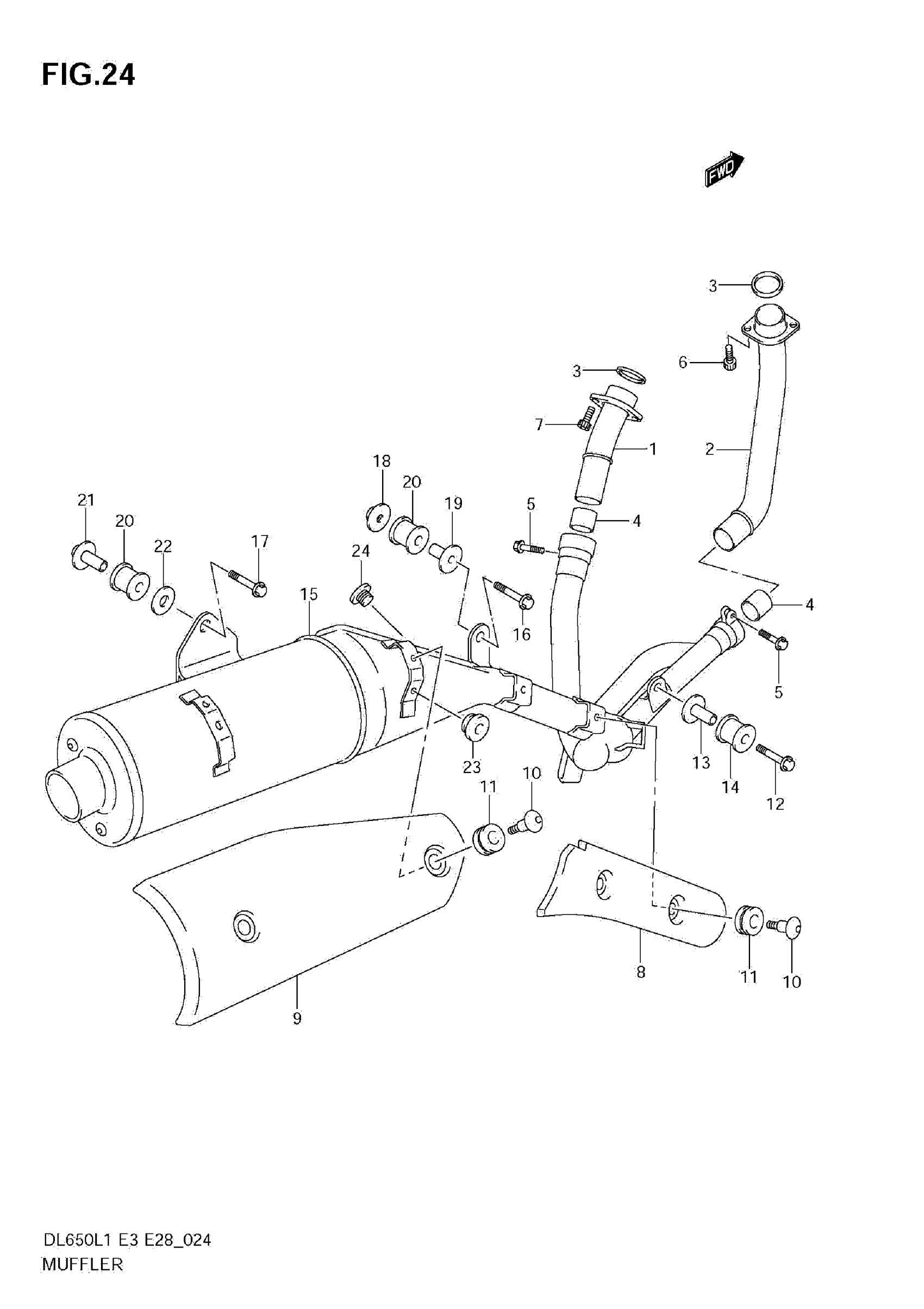

Suzuki DL650AL1 (2011) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST REAR

14150-27G00

Unavailable

2

PIPE, EXHAUST FRONT

14160-17G00

$245.72

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

CONNECTOR, MUFFLER

14771-32E00

$21.84

5

BOLT (8X35)

09103-08365

$3.91

6

BOLT (8X25)

09106-08165

$4.03

7

BOLT

07130-0825A

$3.04

8

COVER, MUFFLER FRONT

14771-27G10

$39.60

9

COVER, MUFFLER | FOR YAY/YME

14781-27G10-YKV

Unavailable

9

COVER, MUFFLER | FOR YHG/YPA

14781-27G10-YYF

$194.25

10

SCREW (6X20)

09139-06126

$4.04

11

CUSHION

09320-08070

$11.57

12

BOLT (8X45)

09118-08152-A05

$5.24

13

SPACER (8.6X12X24.2)

09180-08152

$5.83

14

CUSHION

09320-12048

$5.11

15

MUFFLER

14305-27G60-H01

Unavailable

16

BOLT

01550-0845A

$3.14

17

BOLT (8X45)

09103-08358

$3.42

18

NUT, MUFFLER SPRT

14414-27G00

Unavailable

19

SPACER

09180-08156

$6.70

20

CUSHION

09320-12049

$10.68

21

NUT, MUFFLER SPRT

14414-06G00

Unavailable

22

WASHER (8.5X33X1.5)

09160-08146

$2.60

23

CUSHION

09321-10018

$5.45

24

PLUG

09248-18011

$7.35
