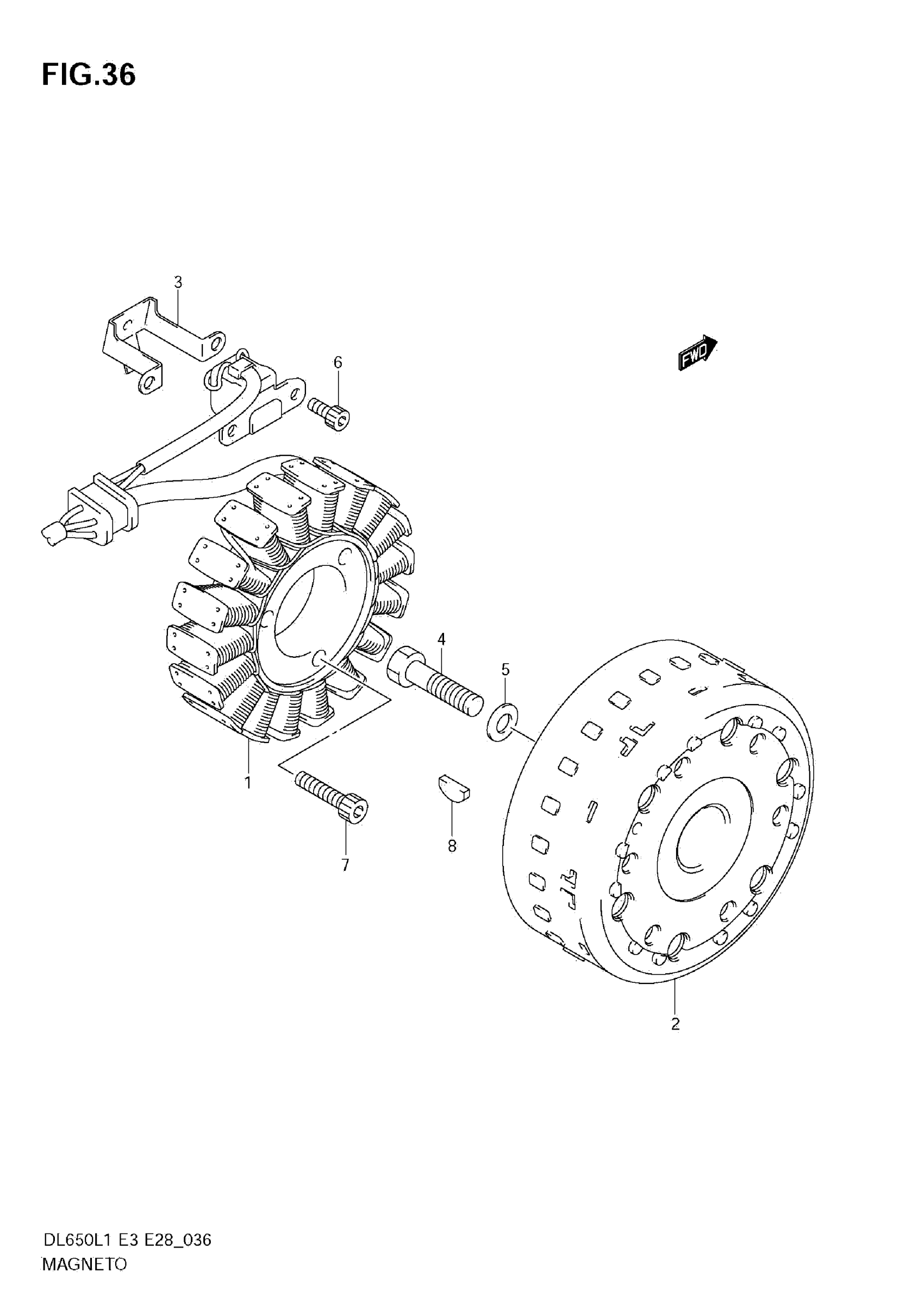

Suzuki DL650AL1 (2011) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-17G10.

32101-17G13

$402.88

2

ROTOR ASSY

32102-17G10

Unavailable

3

CLAMP, MAGNETO LEAD

32371-19F00

$5.78

4

BOLT (12X40)

09103-12004

$4.00

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$3.16

8

KEY

09420-04008

$3.42
