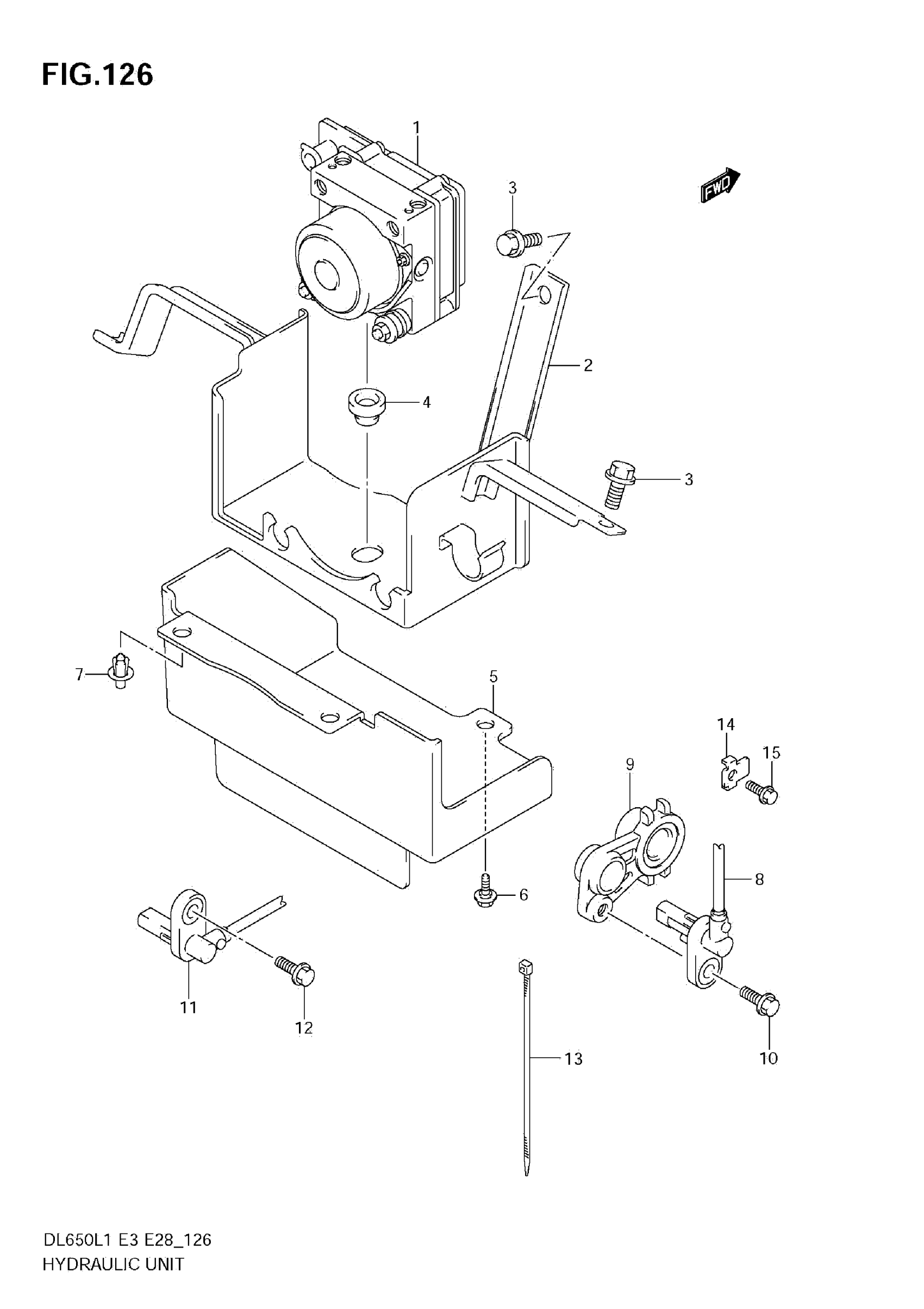

Suzuki DL650AL1 (2011) HYDRAULIC UNIT (DL650A L1 E33) Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-27G01

$3,102.88

2

HOLDER, HYDRAULIC UNIT ABS

55660-27G00

Unavailable

3

BOLT, HOLDER

01550-0616A

$1.97

4

RUBBER, UNIT MOUNTING

56121-58J00

Unavailable

5

COVER, HYDR ABS UNIT This part replaces 55667-27G10.

55667-27G20

$30.67

6

BOLT (6X16)

09111-06065

$3.05

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

SENSOR, FR WHEEL ABS

55710-27G00

Unavailable

9

BRACKET, SENSOR FR

55720-27G00

Unavailable

10

BOLT (8X16)

01550-0816A

$2.32

11

SENSOR, RR WHEEL ABS

65710-27G00

$317.10

12

BOLT (8X16)

01550-0816A

$2.32

13

CLAMP (L:145)

09407-14407

$3.57

14

GUIDE, SENSOR LEAD

34938-14F00

$6.30

15

BOLT

01547-0612B

$1.49
