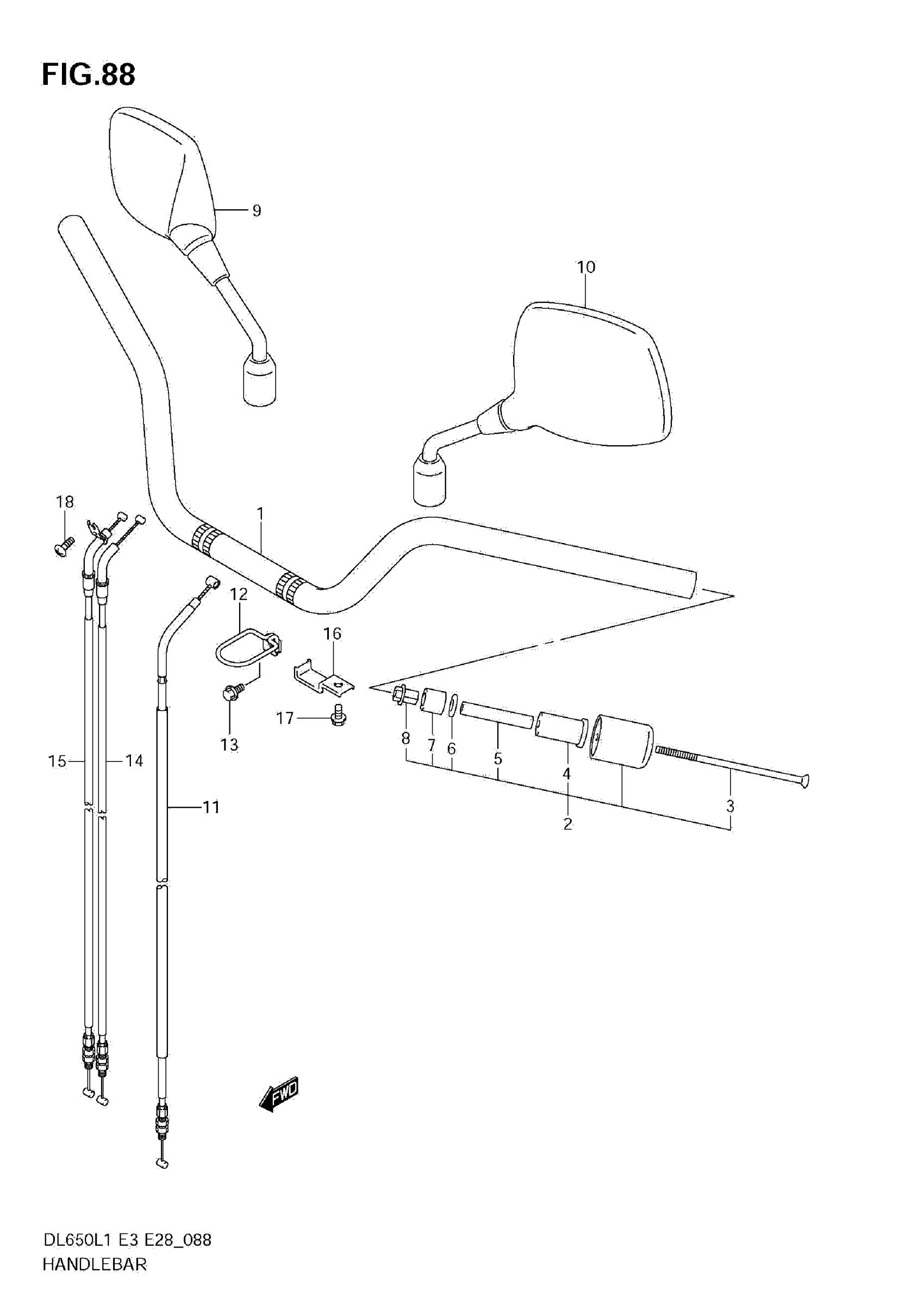

Suzuki DL650AL1 (2011) HANDLEBAR (DL650 L1 E33) Diagram

#

Description
Price

1

HANDLEBAR

56111-27G20

$172.05

2

BALANCER SET, HANDLEBAR This part replaces 56200-16841.

56200-16843

$36.13

3

SCREW (6X110)

09127-06018

$3.38

4

EXPANDER, OUTER

56272-06G00

$8.13

5

SPACER

56276-17D00

$5.07

6

WASHER (6.5X16X4)

09160-06131

$2.50

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

8

NUT

56273-10G10

$8.65

9

MIRROR ASSY, REAR VIEW RH This part replaces 56500-04F22.

56500-04F23

$155.94

10

MIRROR ASSY, REAR VIEW LH This part replaces 56600-04F22.

56600-04F23

$172.99

11

CABLE ASSY, CLUTCH

58200-27G00

$28.79

12

GUIDE, CLUTCH CABLE

58620-27G20

Unavailable

13

BOLT

01547-0612A

$2.03

14

CABLE ASSY,THRO This part replaces 58300-27G30.

58300-27G31

$44.38

15

CABLE ASSY,THRO This part replaces 58300-27G40.

58300-27G41

$40.62

16

GUIDE, CABLE

58621-27G10

Unavailable

17

BOLT

01547-0612B

$1.49

18

SCREW (5X10)

09125-05042

$1.96
