2011 Suzuki DL650AL1 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2011 Suzuki DL650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

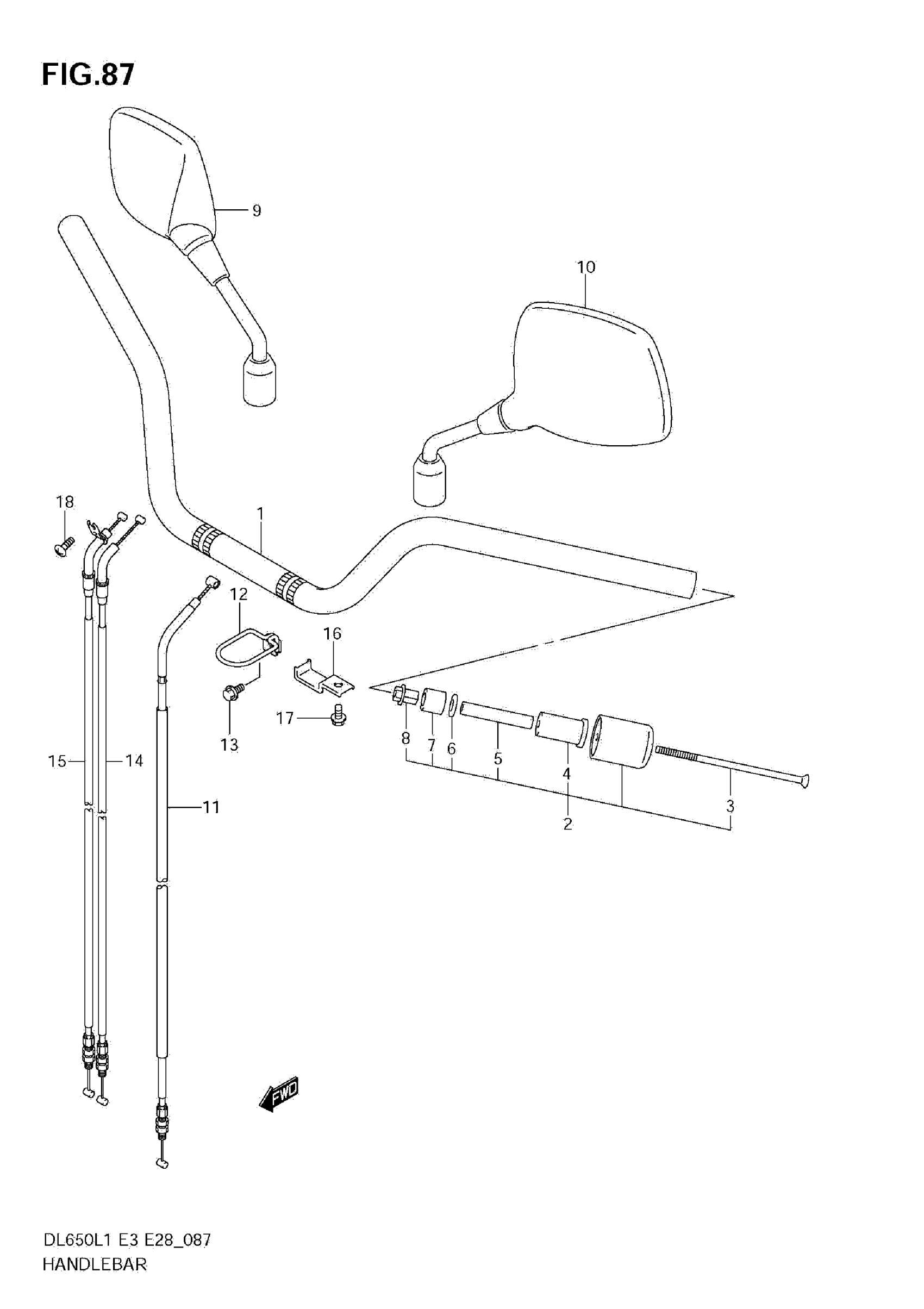

2011 Suzuki DL650AL1 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-27G20

1

$191.46

In stock

2

BALANCER SET, HANDLEBAR This part replaces 56200-16841.

56200-16843

2
Out of stock

3

SCREW (6X110)

09127-06018

2

$3.35

In stock

4

EXPANDER, OUTER

56272-06G00

2
Out of stock

5

SPACER

56276-17D00

2

$5.21

In stock

6

WASHER (6.5X16X4)

09160-06131

2
Out of stock

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

2
Out of stock

8

NUT

56273-10G10

2
Out of stock

11

CABLE ASSY, CLUTCH

58200-27G00

1

$29.52

In stock

12

GUIDE, CLUTCH CABLE

58620-27G20

1
Out of stock

13

BOLT

01547-0612A

1
Out of stock

14

1

$50.10

In stock

15

1

$45.83

In stock

16

GUIDE, CABLE

58621-27G10

1
Out of stock

17

BOLT

01547-0612B

1

$1.31

In stock

18

SCREW (5X10)

09125-05042

1
Out of stock
