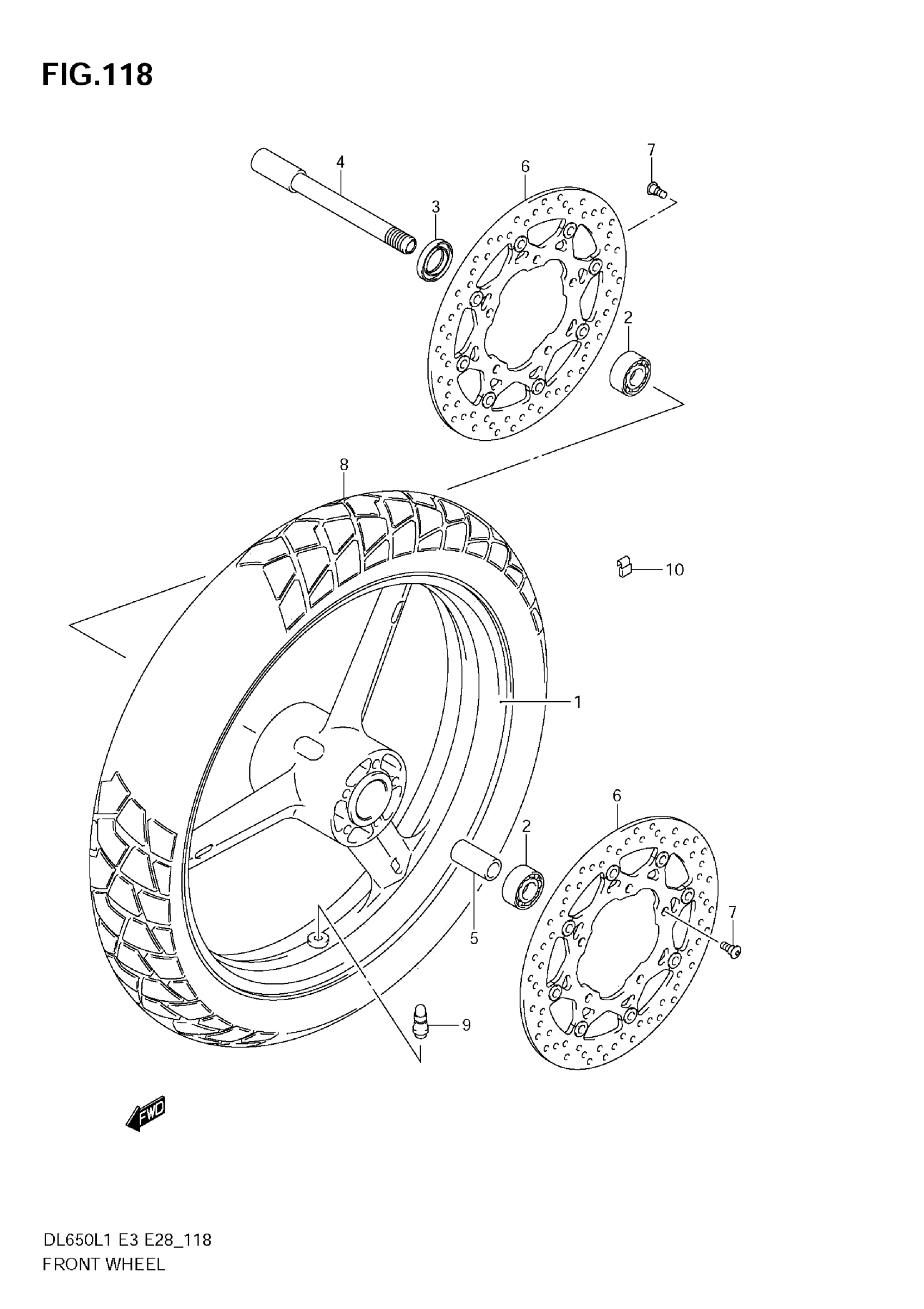

Suzuki DL650AL1 (2011) FRONT WHEEL (DL650 L1 E3) Diagram

#

Description

Price

1

WHEEL,FR(19M/CX | FOR YAY/YME This part replaces 54111-27G10-019.

54111-27G30-019

$1,109.13

1

WHEEL,FRONT(19M | FOR YHG/YPA This part replaces 54111-27G10-YD8.

54111-27G30-YD8

$860.05

2

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

3

OIL SEAL (22X40X7)

09285-22004

$5.51

4

AXLE,FR

54711-08F00

$117.03

5

SPACER (17.5X25X88)

09180-17067

$25.05

6

DISC,FR BRAKE

59210-44G11

$462.72

7

BOLT (8X21)

09106-08160

$3.22

8

TIRE,FR(110/80R | TRAIL WING 101 RADIAL This part replaces 55110-06G10.

55110-06G12

$204.87

9

VALVE ASSY, WHEEL RIM

43130-24A00

$8.10

10

BALANCER, WHEEL NO.1

43222-73H10

$6.57

10

BALANCER, WHEEL NO.2

43224-73H10

$4.02

10

BALANCER, WHEEL NO.3

43226-73H10

$4.69
