Description

Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01-291.

57110-29G02-291

$27.40

2

LEVER ASSY, FR BRAKE This part replaces 57300-44G11.

57300-44G12

$50.00

3

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

$6.72

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$13.32

8

LEVER ASSY,CLUT This part replaces 57500-10D20.

57500-10D22

$89.77

9

LEVER

57620-45C00

$29.20

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$8.94

11

NUT

08319-2106B

$2.31

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.29

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

14

..BOLT

01547-0620B

$2.43

15

.SWITCH ASSY,CLUTCH

57560-05A10

$29.04

16

.SCREW,CLUTCH SWITCH This part replaces 57562-41G00.

57562-41G01

$10.82

17

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.47

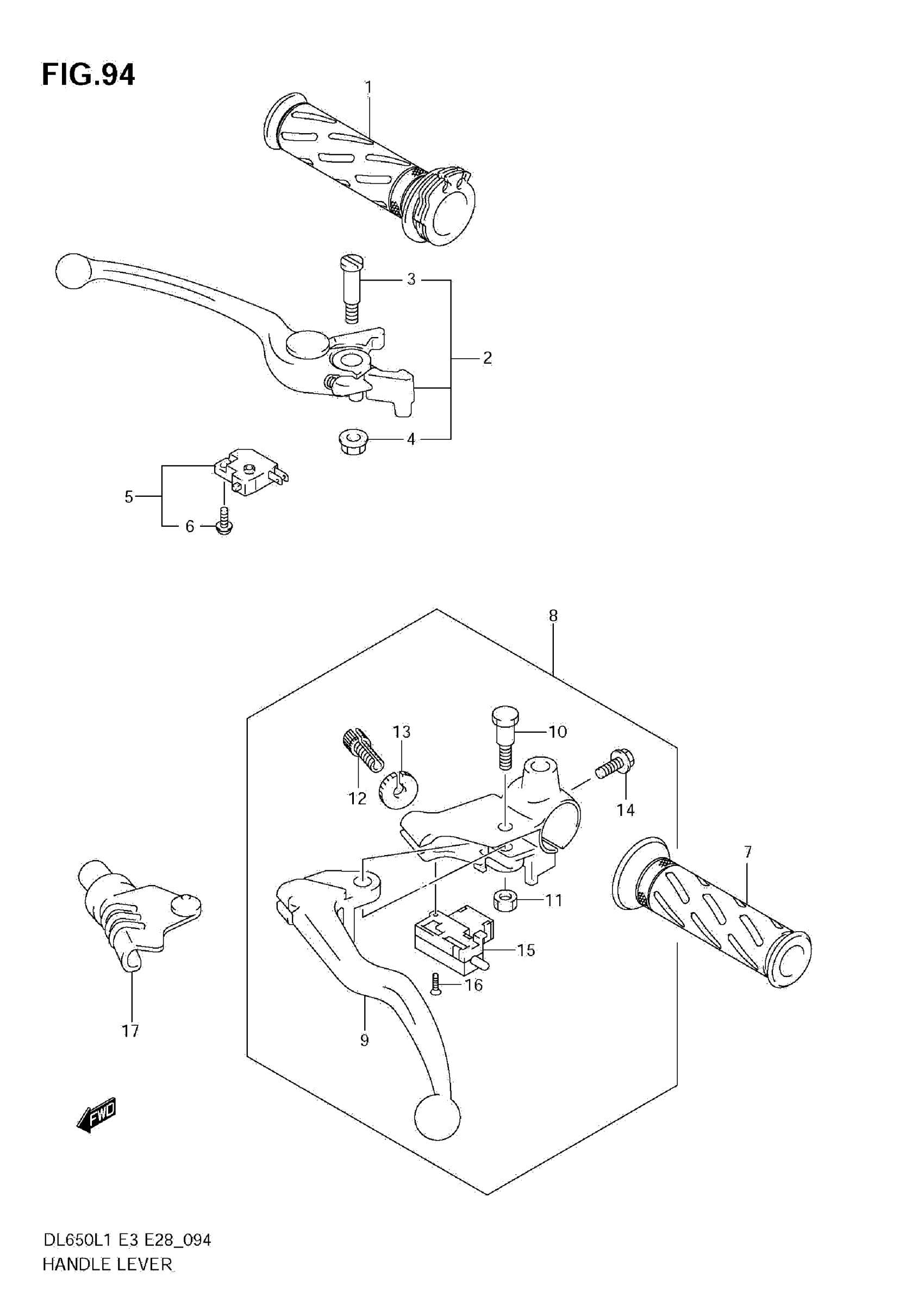

Suzuki DL650AL1 (2011) HANDLE LEVER (DL650 L1 E33) Diagram
