Description

Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01-291.

57110-29G02-291

$29.93

2

LEVER ASSY, FR BRAKE This part replaces 57300-44G11.

57300-44G12

$56.24

3

.BOLT, PIVOT This part replaces 57431-17H01.

57431-17H02

$7.13

4

NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$14.55

8

LEVER ASSY,CLUT This part replaces 57500-10D20.

57500-10D22

$83.00

9

LEVER

57620-45C00

$26.78

10

..BOLT,LEVER PIVOT This part replaces 57431-45C01.

57431-21D11

$9.76

11

NUT

08319-2106B

$2.32

12

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$9.05

13

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$8.41

14

..BOLT

01547-0620B

$2.45

15

.SWITCH ASSY,CLUTCH

57560-05A10

$30.85

16

.SCREW,CLUTCH SWITCH This part replaces 57562-41G00.

57562-41G01

$9.58

17

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.93

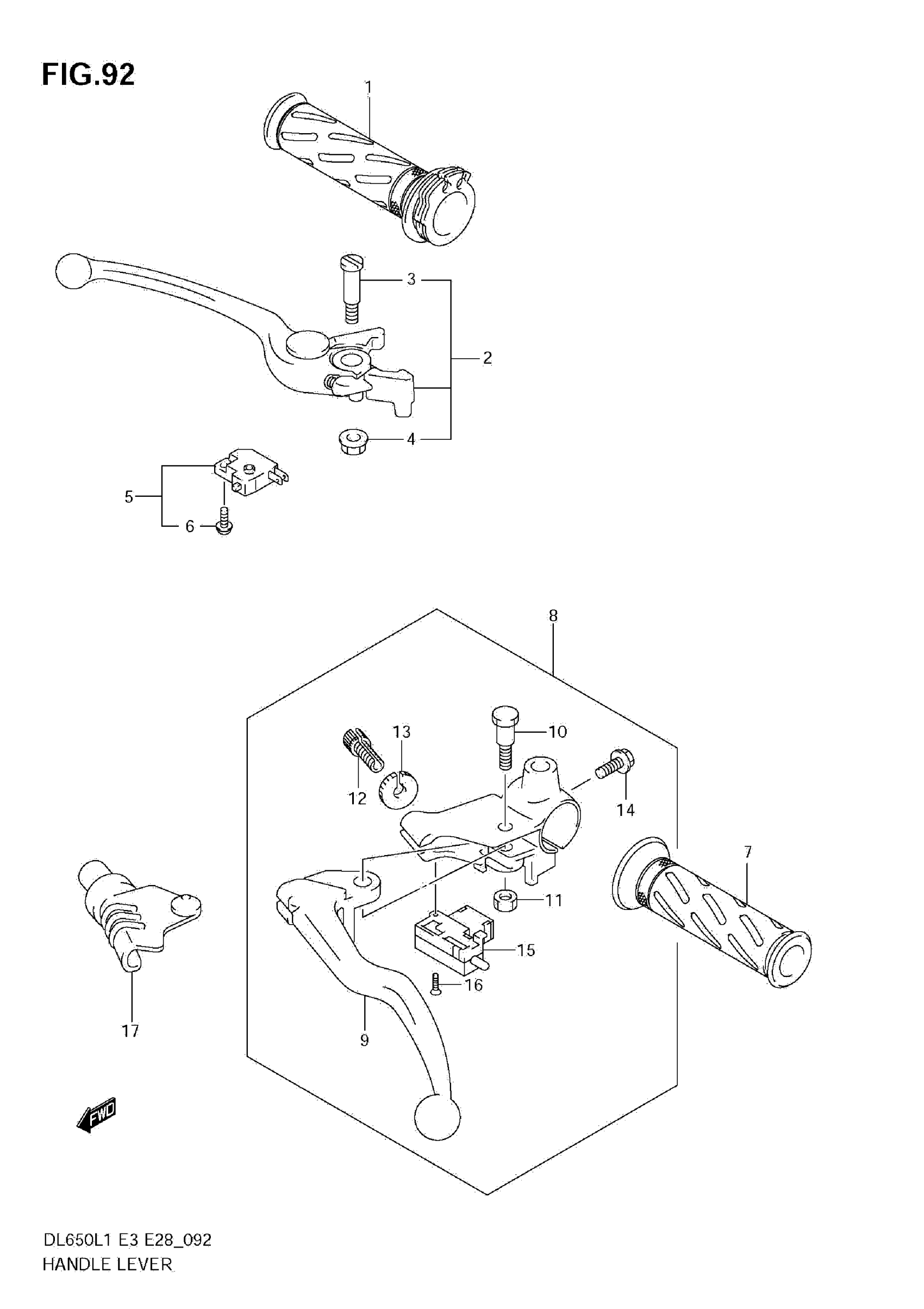

Suzuki DL650AL1 (2011) HANDLE LEVER (DL650 L1 E3) Diagram
