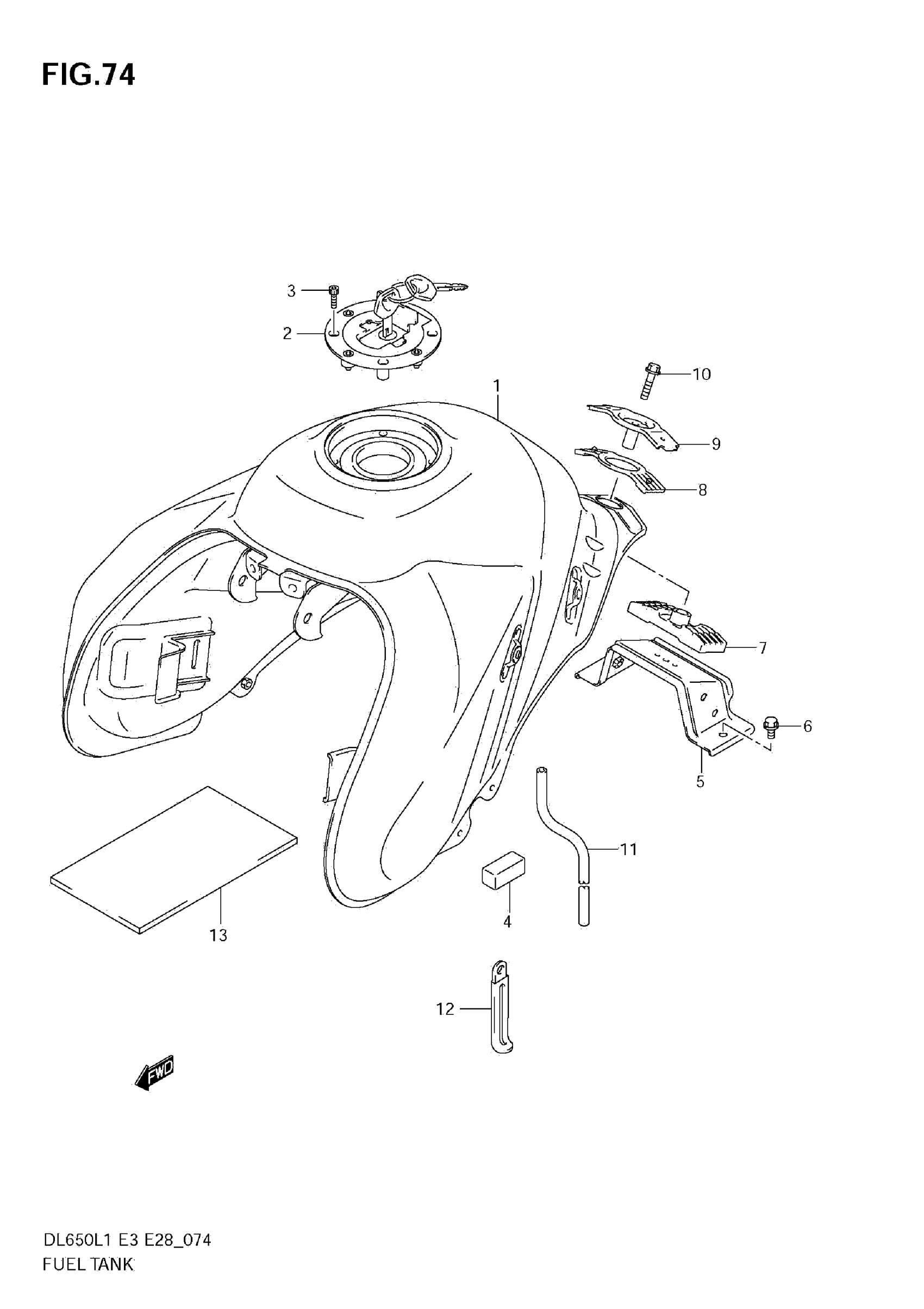

Suzuki DL650AL1 (2011) FUEL TANK (DL650A L1 E33) Diagram

#

Description

Price

1

TANK ASSY, FUEL This part replaces 44100-06G50-YAY.

44100-06G51-YAY

Unavailable

1

TANK ASSY,FUEL( This part replaces 44100-06G50-YPA.

44100-06G51-YPA

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-33830.

44200-33831

$318.75

3

BOLT (5X20)

09106-05017

$2.83

4

CUSHION, SIDE

44541-06G00

$10.62

5

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

6

BOLT (8X16)

01550-0816A

$2.32

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT

01550-0835B

$3.95

11

HOSE,FUEL TANK This part replaces 44423-06G00.

44423-06G01

$17.92

12

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

13

SHIELD, TANK CENTER

44194-27G00

$36.17
