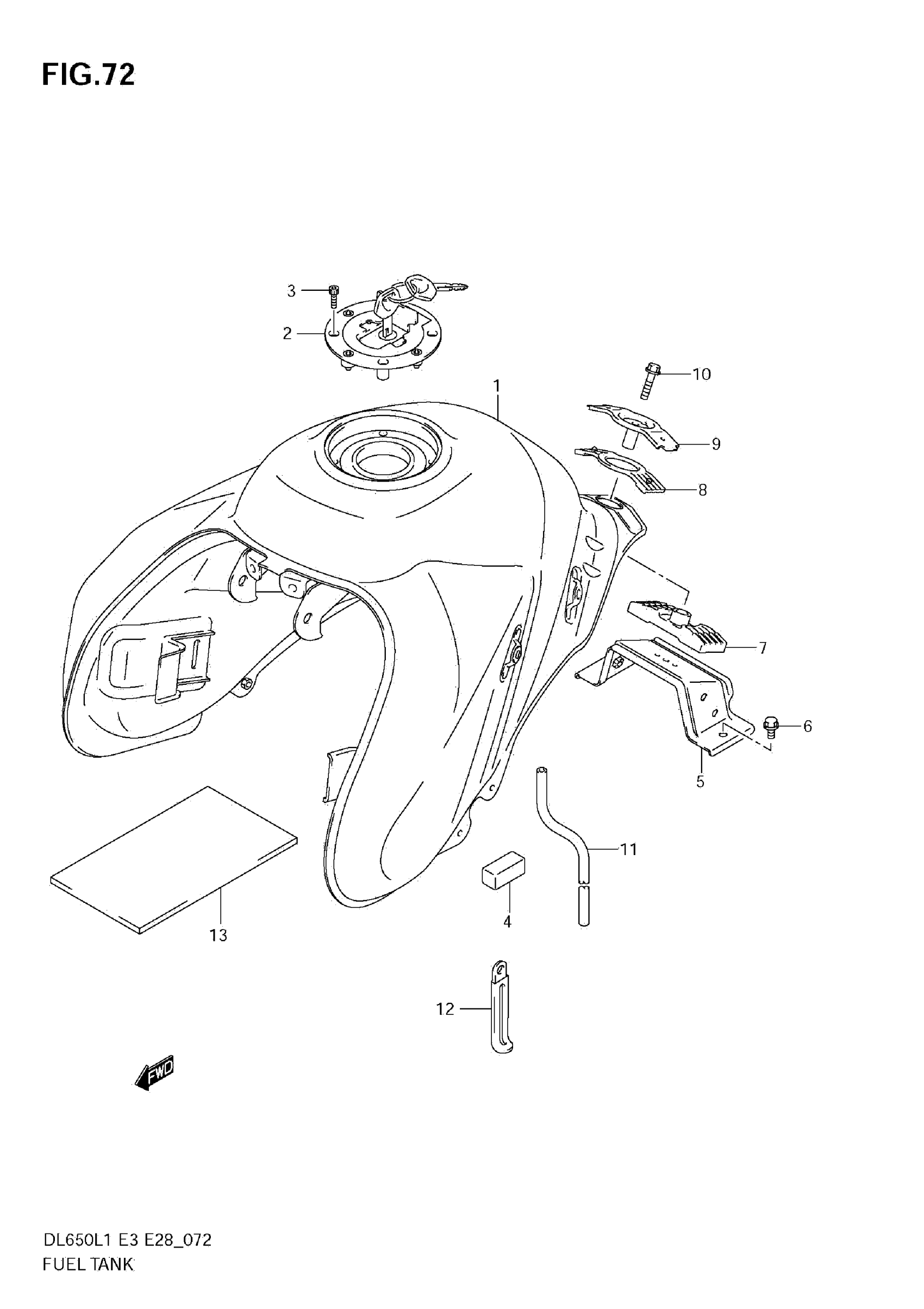

Suzuki DL650AL1 (2011) FUEL TANK (DL650A L1 E3) Diagram

#

Description

Price

1

TANK ASSY,FUEL( This part replaces 44100-06G30-YAY.

44100-06G31-YAY

$1,906.35

1

TANK, FUEL (WHITE)

44100-06G30-YPA

Unavailable

2

CAP SET,FUEL TA This part replaces 44201-33820.

44201-33822

$142.03

3

BOLT (5X20)

09106-05017

$2.80

4

CUSHION, SIDE

44541-06G00

$11.98

5

BRACKET, FUEL TANK RR

44550-06G10

Unavailable

6

BOLT (8X16)

01550-0816A

$2.31

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT

01550-0835B

$4.42

11

HOSE,FUEL TANK This part replaces 44423-06G00.

44423-06G01

$20.23

12

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

13

SHIELD, TANK CENTER

44194-27G00

$40.83
