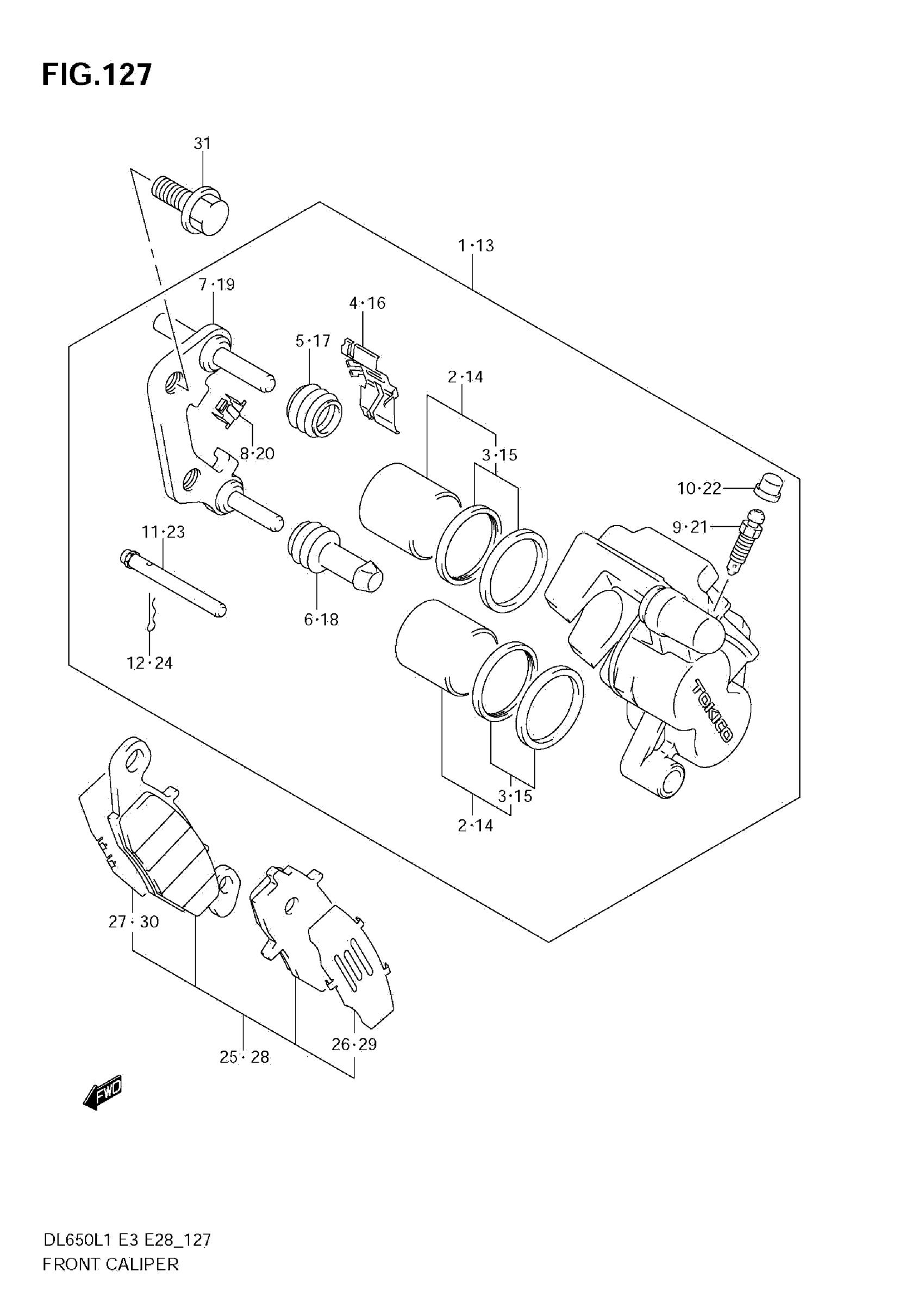

Suzuki DL650AL1 (2011) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH This part replaces 59100-33DF1-999.

59100-33DJ0-999

Unavailable

2

PISTON SET

59300-01820

$90.23

3

..SEAL SET, PISTON

59100-04851

$28.97

4

.SPRING, PAD RH

59115-33D00

$14.90

5

BOOT

59112-44B00

$8.91

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.CARRIER, CALIPER RH

59150-33D01

$109.85

8

.GUIDE, PAD

59116-33D00

$7.97

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

.PIN, PAD

59141-44B01

$9.09

12

.CLIP, PAD PIN

69142-45000

$4.34

13

CALIPER ASSY, FRONT LH This part replaces 59300-33DF1-999.

59300-33DJ0-999

Unavailable

14

PISTON SET

59300-01820

$90.23

15

..SEAL SET, PISTON

59100-04851

$28.97

16

.SPRING, PAD LH

59315-33D00

$14.90

17

BOOT

59112-44B00

$8.91

18

.INSULATOR, AXLE

59313-36500

$5.99

19

.CARRIER, CALIPER LH

59350-33D01

$109.85

20

.GUIDE, PAD

59116-33D00

$7.97

21

BLEEDER

59121-18410

$8.73

22

CAP

55156-66310

$5.17

23

.PIN, PAD

59141-44B01

$9.09

24

.CLIP, PAD PIN

69142-45000

$4.34

25

PAD & SHIM SET RH

59102-33870

$60.32

26

.SHIM, PAD

59171-33D00

$14.85

27

.SHIM, PAD NO.2

59172-33D00

$16.78

28

PAD & SHIM SET LH

59302-33850

$60.25

29

.SHIM, PAD

59171-33D00

$14.85

30

.SHIM, PAD NO.2

59172-33D00

$16.78

31

BOLT (10X20)

01550-1025A

$3.05
