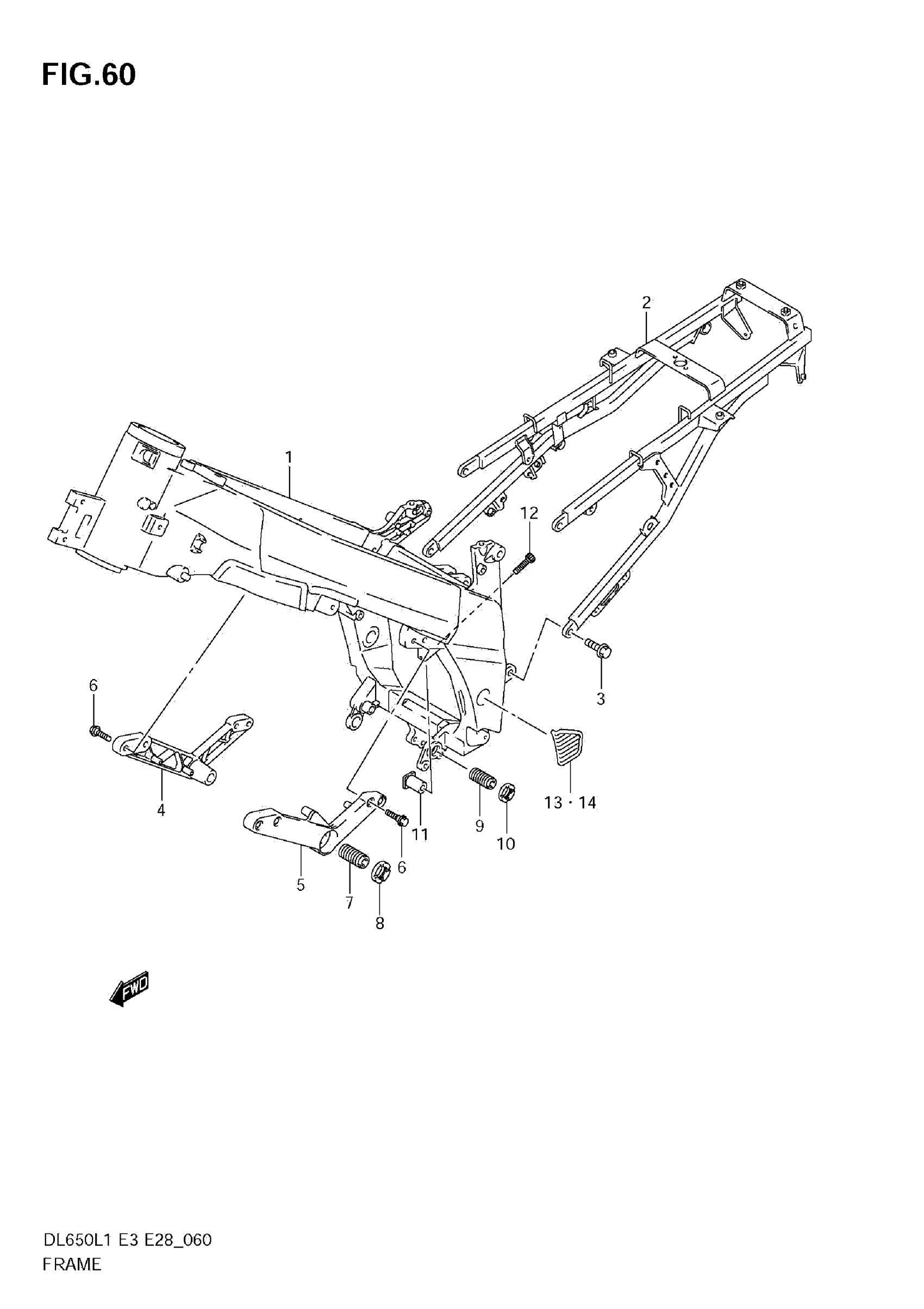

Suzuki DL650AL1 (2011) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-27G10-YAP

Unavailable

2

RAIL, SEAT

41200-06G60

Unavailable

3

BOLT (10X30)

09103-10379

$4.52

4

BRACKET, MOUNT RH (BLACK)

41911-06G80-YAP

Unavailable

5

BRACKET, MOUNT LH (BLACK)

41912-06G80-YAP

Unavailable

6

BOLT (8X30)

09106-08175

$4.10

7

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$31.28

8

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90

9

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

10

NUT, ADJUSTER LOWER

41922-33E00

$22.52

11

SPACER, ADJUSTER UPPER

41941-19F01

$40.33

12

BOLT (8X38)

09106-08168

$3.93

13

COVER, PIVOT, R

43585-27G00

$24.42

14

COVER, PIVOT LH

43595-27G00

$19.98
