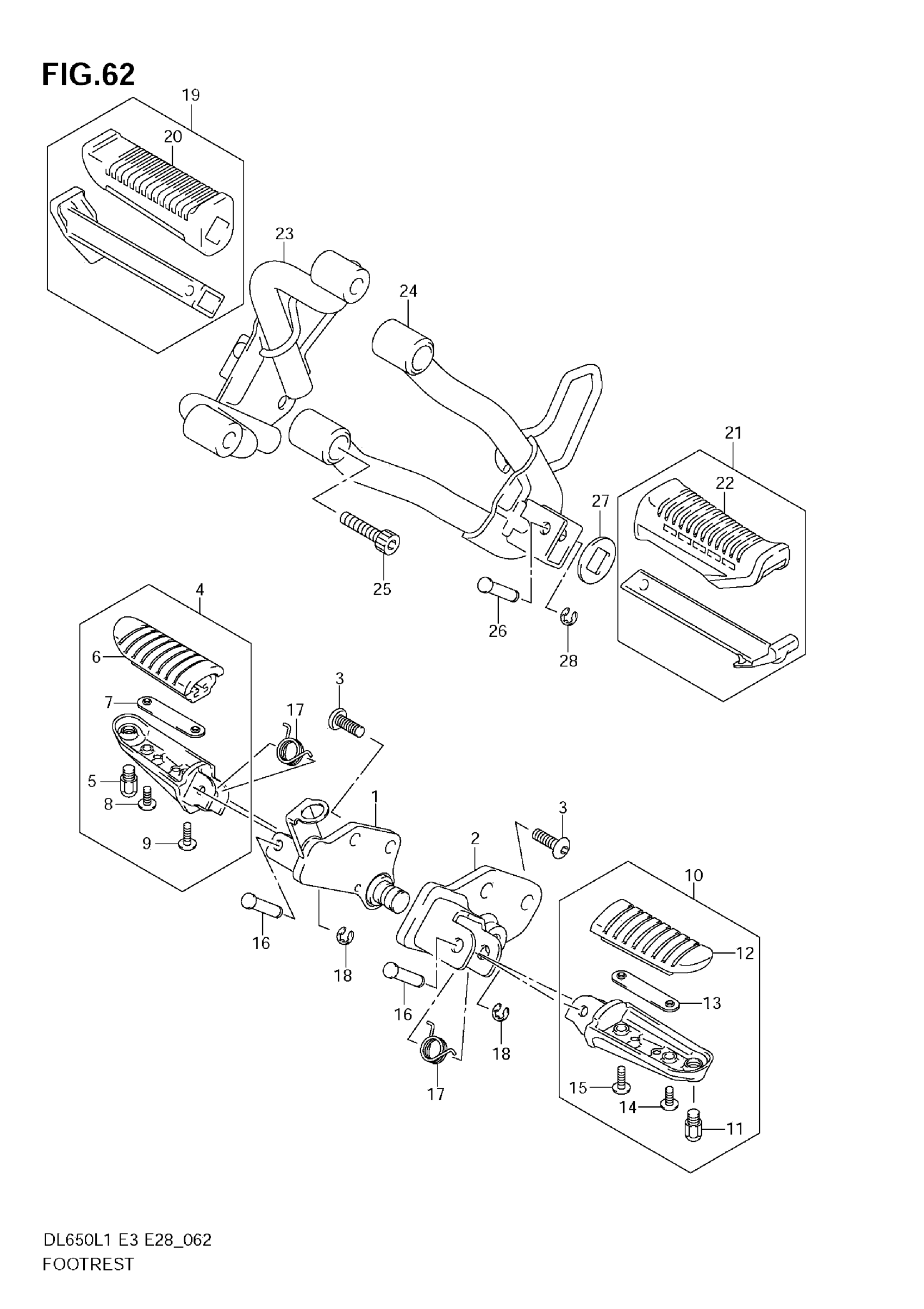

Suzuki DL650AL1 (2011) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH This part replaces 43510-27G01-YAP.

43510-11J00-YAP

$82.00

2

BRACKET, FR FOOTREST LH This part replaces 43520-27G01-YAP.

43520-11J00-YAP

$64.48

3

BOLT (8X23)

09106-08150

$3.42

4

FOOTREST ASSY RH

43501-06G01

$118.35

5

.BOLT,BANK SENSOR

43576-07D01

$8.85

6

RUBBER

43551-06G00

$14.02

7

PLATE

43552-06G00

$12.82

8

SCREW

02142-0516B

$1.93

9

SCREW

02142-0520B

$1.78

10

FOOTREST ASSY, LH

43502-06G01

$118.35

11

.BOLT,BANK SENSOR

43576-07D01

$8.85

12

RUBBER

43551-06G00

$14.02

13

PLATE

43552-06G00

$12.82

14

SCREW

02142-0516B

$1.93

15

SCREW

02142-0520B

$1.78

16

PIN

09208-08010

$2.91

17

SPRING

09448-18022

$3.79

18

E-RING

08332-1106B

$2.00

19

FOOTREST ASSY,P This part replaces 43600-12B00.

43600-12B01

$23.93

20

RUBBER, FOOTREST

43551-29B21

$20.50

22

FOOTREST ASSY,P This part replaces 43700-12B00.

43700-12B01

$22.58

21

RUBBER, FOOTREST

43551-29B21

$20.50

23

BRACKET, PILLION RH (BLACK)

43810-27G10-019

$166.88

24

BRACKET, PILLION LH (BLACK)

43820-27G01-019

$151.97

25

BOLT (8X40)

09106-08074

$3.85

26

PIN

09208-06008

$2.92

27

PLATE, FOOTREST LH

43631-34A01

$4.52

28

E RING

08332-1104A

$1.49
