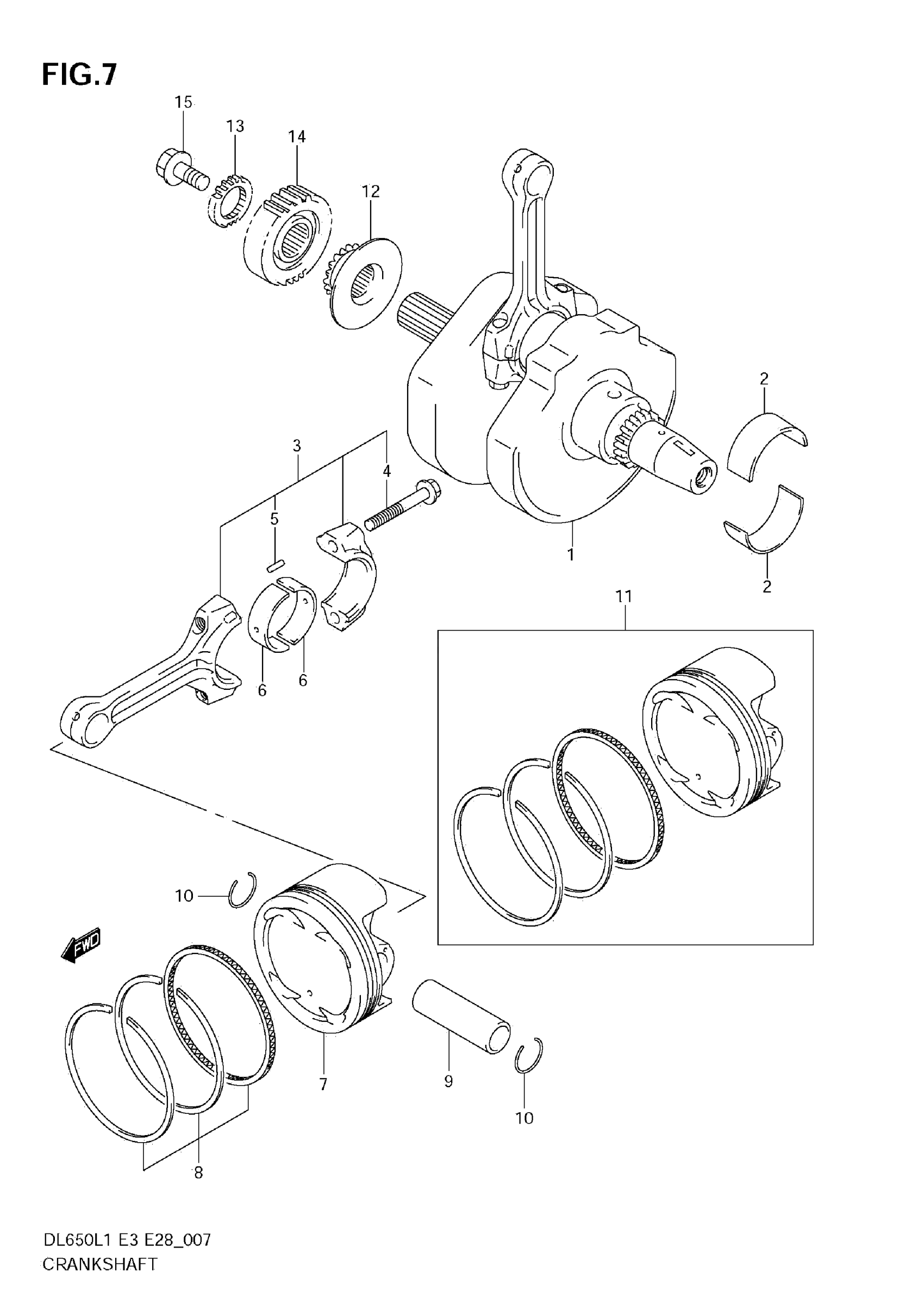

Suzuki DL650AL1 (2011) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12220-17G00

$1,423.62

2

BEARING,CRANKSHAFT (GREEN) This part replaces 12229-44H00-0A0.

12229-44H10-0A0

$19.02

2

BEARING,CRANKSHAFT (BLACK) This part replaces 12229-44H00-0B0.

12229-44H10-0B0

$19.02

2

BEARING, CRANKSHAFT (BROWN)

12229-44H00-0C0

Unavailable

3

CONNECTING ROD ASSY

12160-17G10

$206.73

4

.BOLT,CONNECTING ROD

12163-24F10

$16.45

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

$16.80

6

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

$16.80

6

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

$17.30

6

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

$17.30

7

PISTON

12111-20F10-0F0

$145.32

8

RING SET, PISTON

12140-17G20

$83.65

9

PIN,PISTON

12151-05A00

$15.61

10

CIRCLIP

09381-20004

$1.65

11

PISTON SET (OS:0.5) | OPT

12100-17G20-050

$217.48

12

SPROCKET,CAM CHAIN DRIVE (NT:

12731-19F00

Unavailable

13

GEAR,WATER PUMP DRIVE (NT:17)

17451-17G00

Unavailable

14

GEAR, PRIMARY DRIVE

21111-20F10

Unavailable

15

BOLT (10X19)

09103-10338

$8.12
