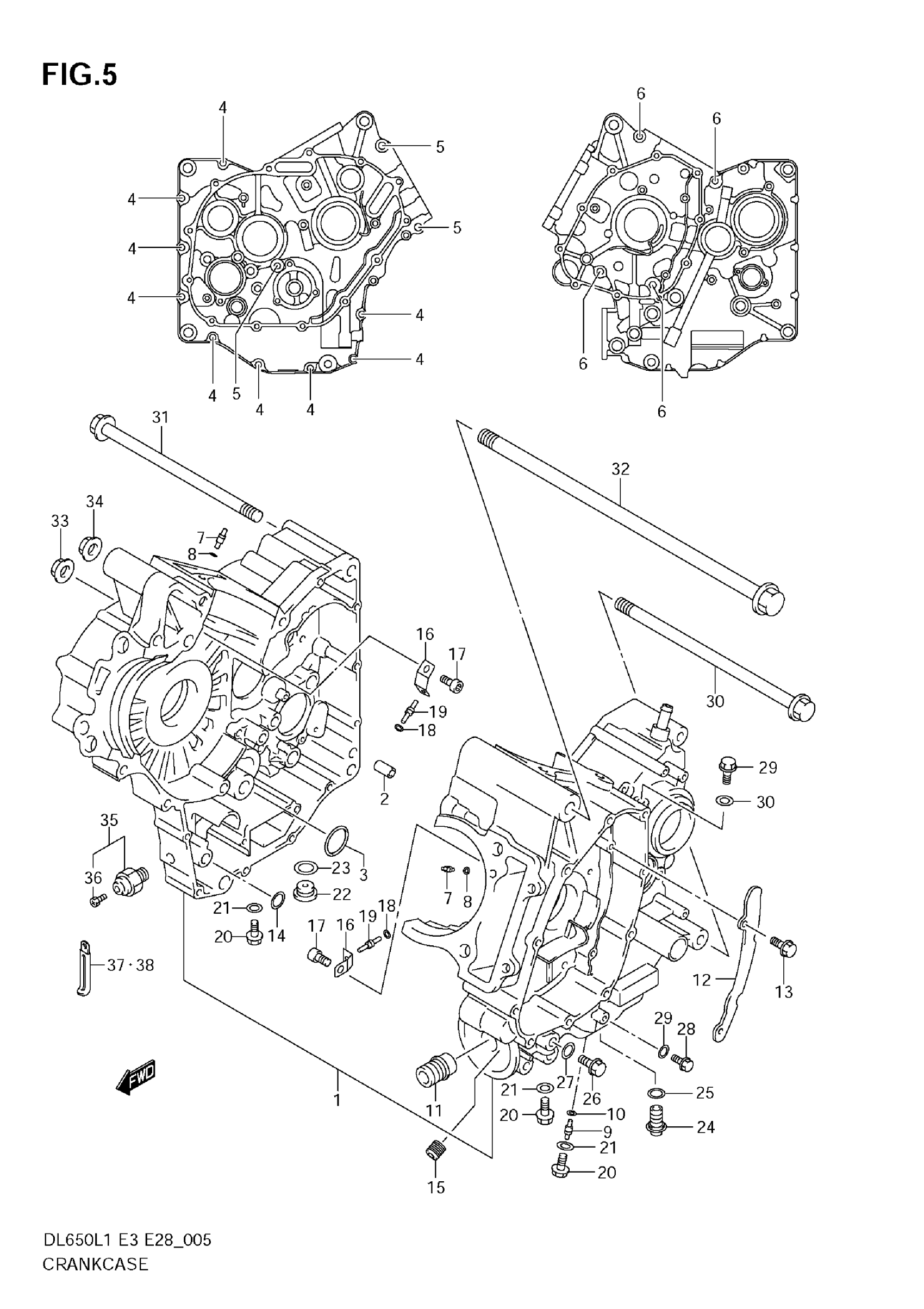

Suzuki DL650AL1 (2011) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-20883

Unavailable

2

PIN

09206-11007

$2.37

3

O-RING (D:2.4,ID:15.8)

09280-15007

$1.70

4

BOLT

01547-0650A

$2.46

5

BOLT

07120-0855A

$4.32

6

BOLT

07120-0880A

$4.77

7

JET

09493-28010

$16.57

8

O RING (D:1.2,ID:4)

09280-04004

$1.91

9

JET

09493-28010

$16.57

10

O RING (D:1.2,ID:4)

09280-04004

$1.91

11

UNION,OIL STAND

16591-06B01

$7.05

12

PLATE,OIL SEPARATOR

11323-19F00

Unavailable

13

BOLT

01547-0612A

$2.03

14

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

15

JET, OIL GALLERY

11329-17G00

Unavailable

16

PLATE,PISTON COOLING JET

16438-19F00

Unavailable

17

BOLT (6X12)

09106-06075

$2.48

18

O RING (D:1.2,ID:4)

09280-04004

$1.91

19

JET (130)

09493-26007

Unavailable

20

BOLT (8X12)

01550-0812A

$2.32

21

GASKET (8.2X14X1)

09168-08016

$1.65

22

PLUG

09248-16012

$4.64

23

GASKET (16X22X2)

09168-16002

$1.91

24

PLUG

09247-12011

$4.64

25

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

26

PLUG

09247-12006

$2.82

27

GASKET (12X17X1)

09168-12017

$1.95

28

PLUG

01547-0610A

$2.45

29

GASKET (5.8X13X1.2)

09168-06023

$2.35

30

BOLT (10X275)

09103-10347

$21.83

31

BOLT (10X225)

09103-10205

$19.52

32

BOLT (12X310)

09103-12054

$25.67

33

NUT

08319-3110A

$2.73

34

NUT

09159-12054

$7.44

35

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

36

BOLT

37822-33D00

$4.35

37

CLAMP (L:45)

09404-06429

$1.83

38

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
