2011 Suzuki DL650AL1 Cowling Body Diagram

← All diagrams

Find the part on the Cowling Body diagram for your 2011 Suzuki DL650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

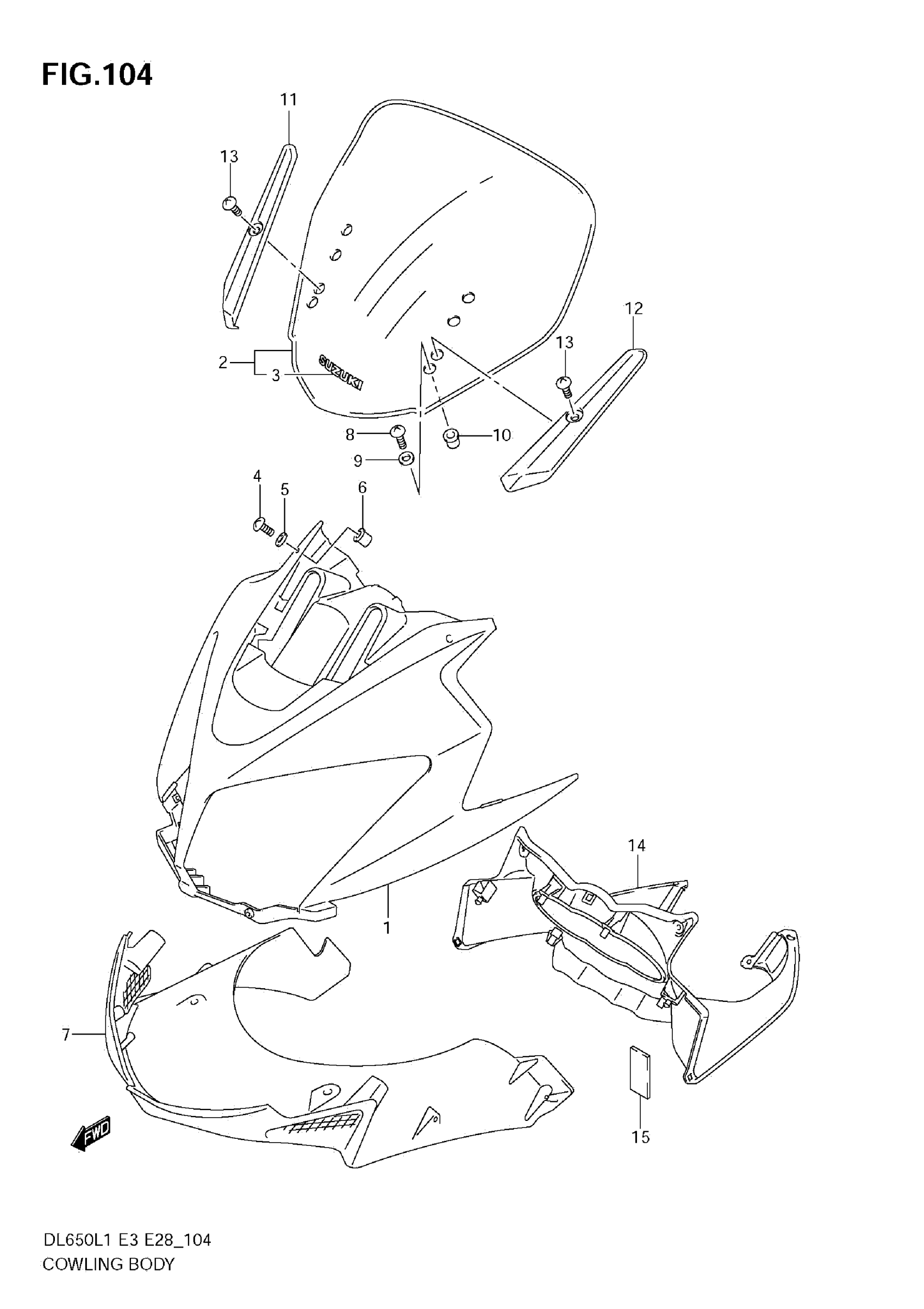

2011 Suzuki DL650AL1 Cowling Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, COWLING (BLACK)

94410-27G01-YAY

1

$491.30

In stock

2

1

$582.95

In stock

3

1

$82.83

In stock

4

SCREW (5X22)

09139-05075

2

$2.80

In stock

5

WASHER

08322-0105B

2
Out of stock

6

NUT

94619-36A00

2

$8.06

In stock

7

COVER, COWL INNER

94461-27G00

1

$183.00

In stock

8

SCREW, UPPER

02142-0520B

4
Out of stock

9

WASHER (5.2X14X1.5)

09161-05017

4

$2.92

In stock

10

NUT

09159-05019

4
Out of stock

11

1

$17.23

In stock

12

1

$21.68

In stock

13

SCREW (5X16)

09132-05053

2

$2.44

In stock

14

PANEL, METER (BLACK)

94630-27G00-291

1

$166.73

In stock

15

CUSHION

44885-38A00

1

$5.18

In stock
