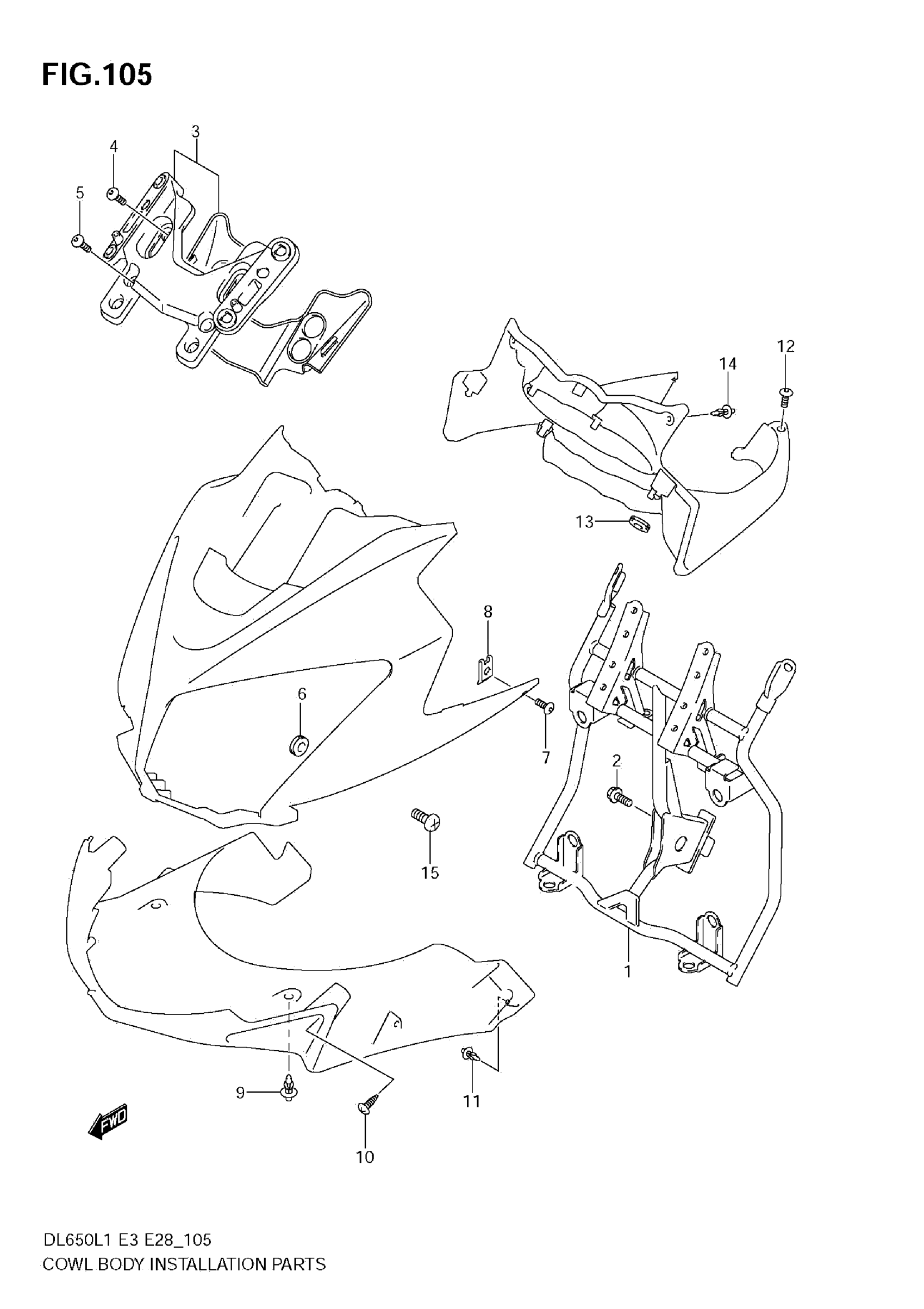

Suzuki DL650AL1 (2011) COWL BODY INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING

94510-27G01

$440.68

2

BOLT

01550-0820B

$2.80

3

BRACE, WINDSCREEN

94600-27G00

$107.83

4

SCREW (6X20)

09139-06126

$3.65

5

SCREW (6X16)

09139-06120

$2.80

6

CUSHION

09320-08028

$2.80

7

SCREW (5X13)

09139-05064

$2.56

8

NUT

09148-05038

$1.97

9

CLIP

09409-07333

$2.29

10

SCREW, INNER COVER

03241-0516B

$1.68

11

CLIP, SIDE (BLACK)

09409-06314-5PK

$2.80

12

SCREW (6X10)

09139-06122

$2.80

13

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

14

CLIP (BLACK)

09409-06314-5PK

$2.80

15

SCREW (5X16)

09132-05057

$2.62
