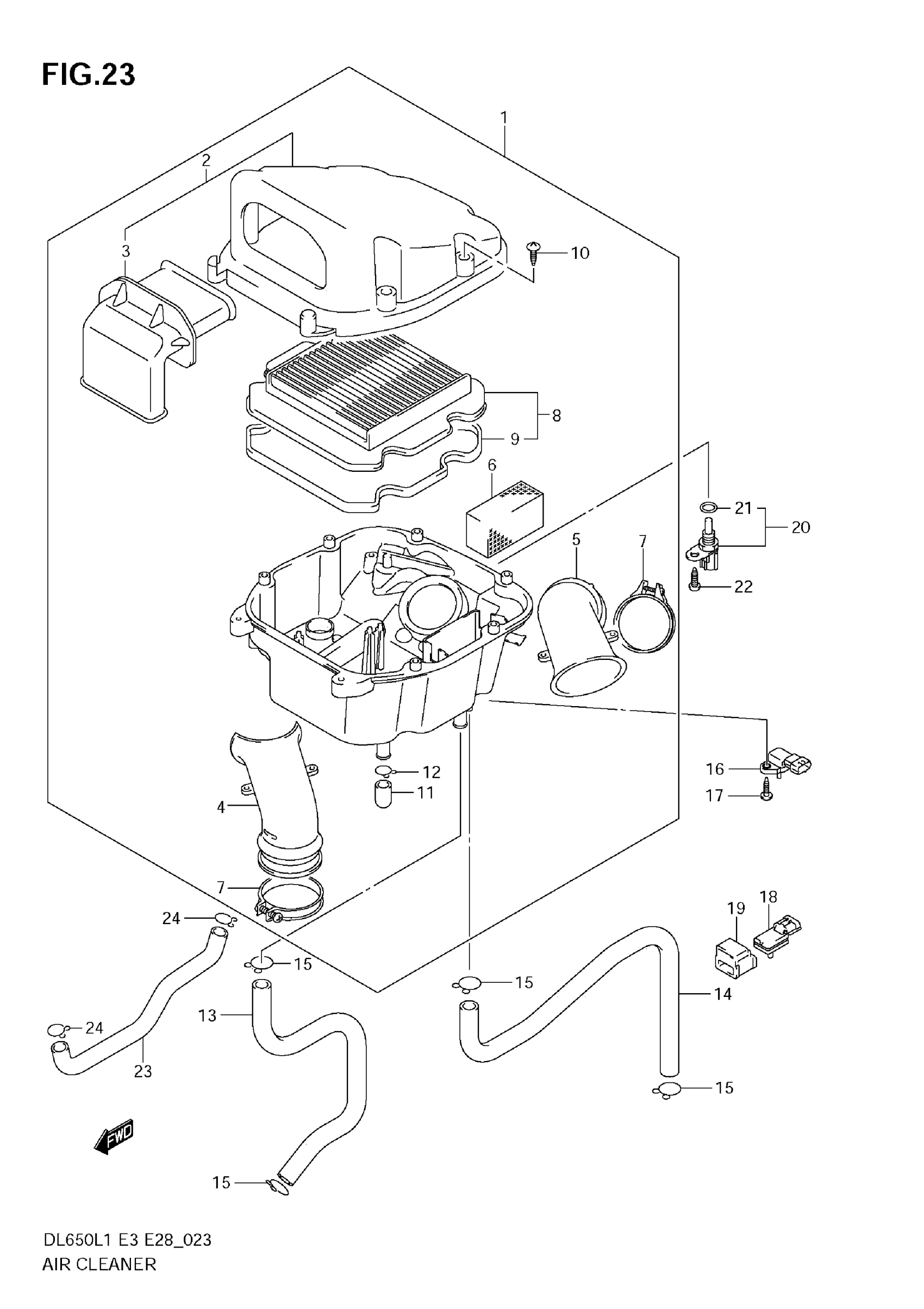

Suzuki DL650AL1 (2011) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-27G10

Unavailable

2

CAP, AIR CLEANER

13740-27G00

Unavailable

3

..TUBE, INLET This part replaces 13891-27G00.

13891-27G01

$44.45

4

.TUBE, OUTLET A This part replaces 13881-27G10.

13881-27G11

$21.28

5

.TUBE, OUTLET B This part replaces 13882-27G10.

13882-27G11

$21.28

6

FILTER, BREATHER

13788-27G10

$14.59

7

CLAMP, OUTLET TUBE REAR

13826-17G00

$5.64

8

FILTER, AIR CLEANER

13780-27G10

$51.22

9

..GASKET, AIR CLEANER

13746-06G00

$16.58

10

SCREW

03141-0516A

$1.49

11

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

12

CLIP

09401-14301

$2.35

13

TUBE, BREATHER CRANKCASE

13851-27G00

Unavailable

14

TUBE, BREATHER CRANKCASE

13852-27G10

Unavailable

15

CLIP

09401-15101

$2.26

16

SENSOR, BOOST RH

18590-17G01

$382.13

17

SCREW

03541-0516A

$1.49

18

SENSOR, BOOST LH

18591-41F00

Unavailable

19

HOLDER

18595-41F00

Unavailable

20

SENSOR AIR TEMP

13650-41F10

$63.25

21

O-RING

13655-41F10

Unavailable

22

SCREW

03511-0516A

$1.86

23

HOSE, ISC VALVE

13865-27G00

Unavailable

24

CLIP

09401-15101

$2.26
