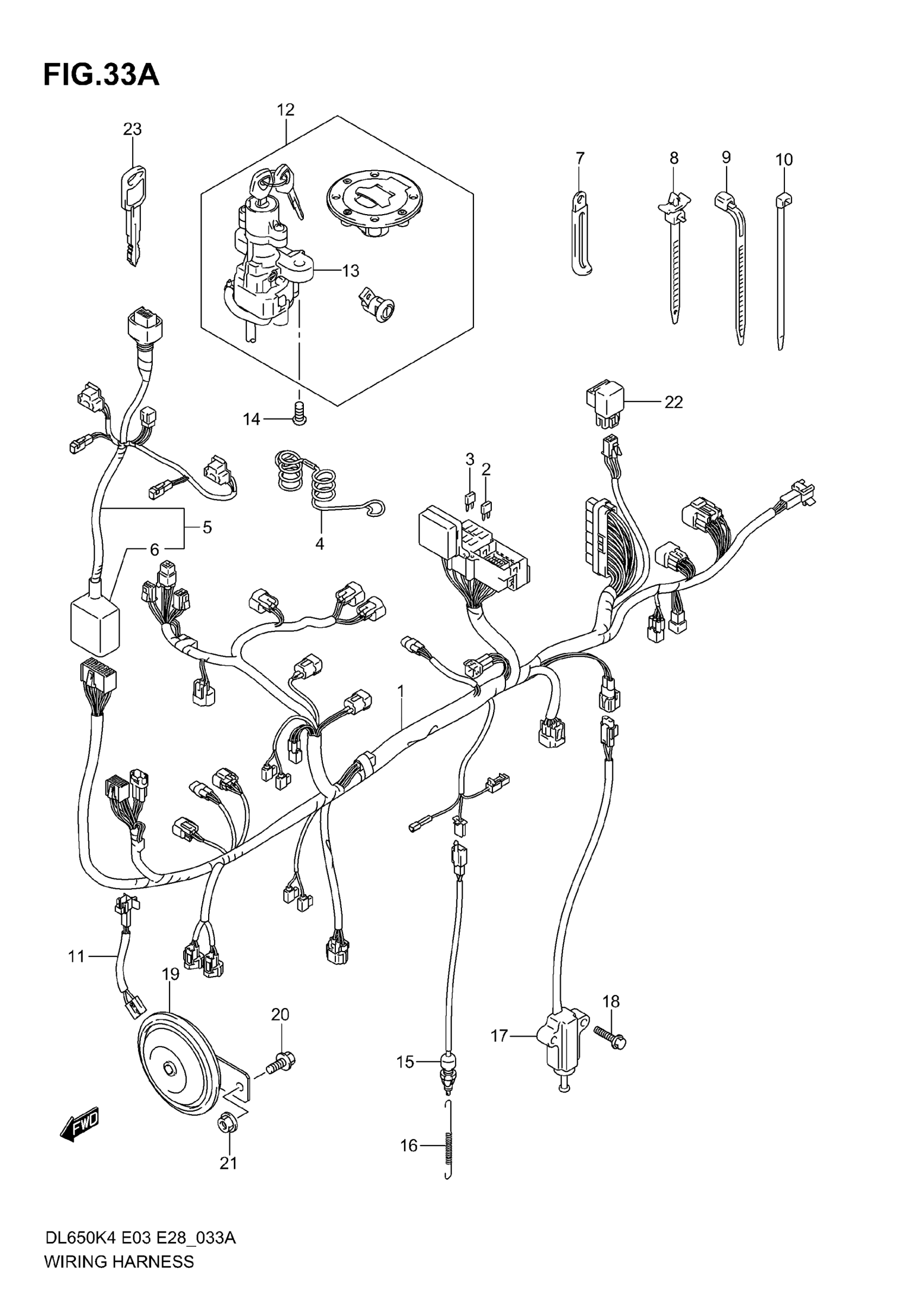

Suzuki DL650 (2006) WIRING HARNESS (MODEL K5/K6) Diagram

#

Description
Price

1

HARNESS,WIRING | Includes Item(s) 2 - 3 This part replaces 36610-27G80.

36610-27GV2

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

GUIDE, WIRING HARNESS

36619-06G01

$19.57

5

HARNESS, WIRING, NO.2 | Includes Item(s) 6

36620-27G30

Unavailable

6

COVER, CONNECTOR

36618-18G10

Unavailable

7

CLAMP (L:45)

09404-06429

$1.83

7

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

8

CLAMP

09407-11402

$1.80

9

CLAMP (L:95)

09407-11401

$2.63

9

CLAMP (L:125)

09407-14403

$2.26

10

CLAMP (L:145)

09407-14407

$3.57

11

WIRE, HORN LEAD

36852-06G00

$17.43

12

LOCK SET This part replaces 37000-27860.

37000-27862

$422.70

12

LOCK SET | E33; Includes Item(s) 13 This part replaces 37000-27870.

37000-27873

$382.53

13

LOCK ASSY,STEER This part replaces 37100-27G00.

37100-27G01

$194.80

14

BOLT (8X20)

09139-08016

$3.37

15

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

16

SPRING

09443-06012

$3.16

17

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

$60.37

18

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

19

HORN ASSY

38500-27G00

Unavailable

20

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

21

NUT This part replaces 08316-10083.

08316-1008B

$2.66

22

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

23

KEY, BLANK | OPT

37146-33E00

$21.21
