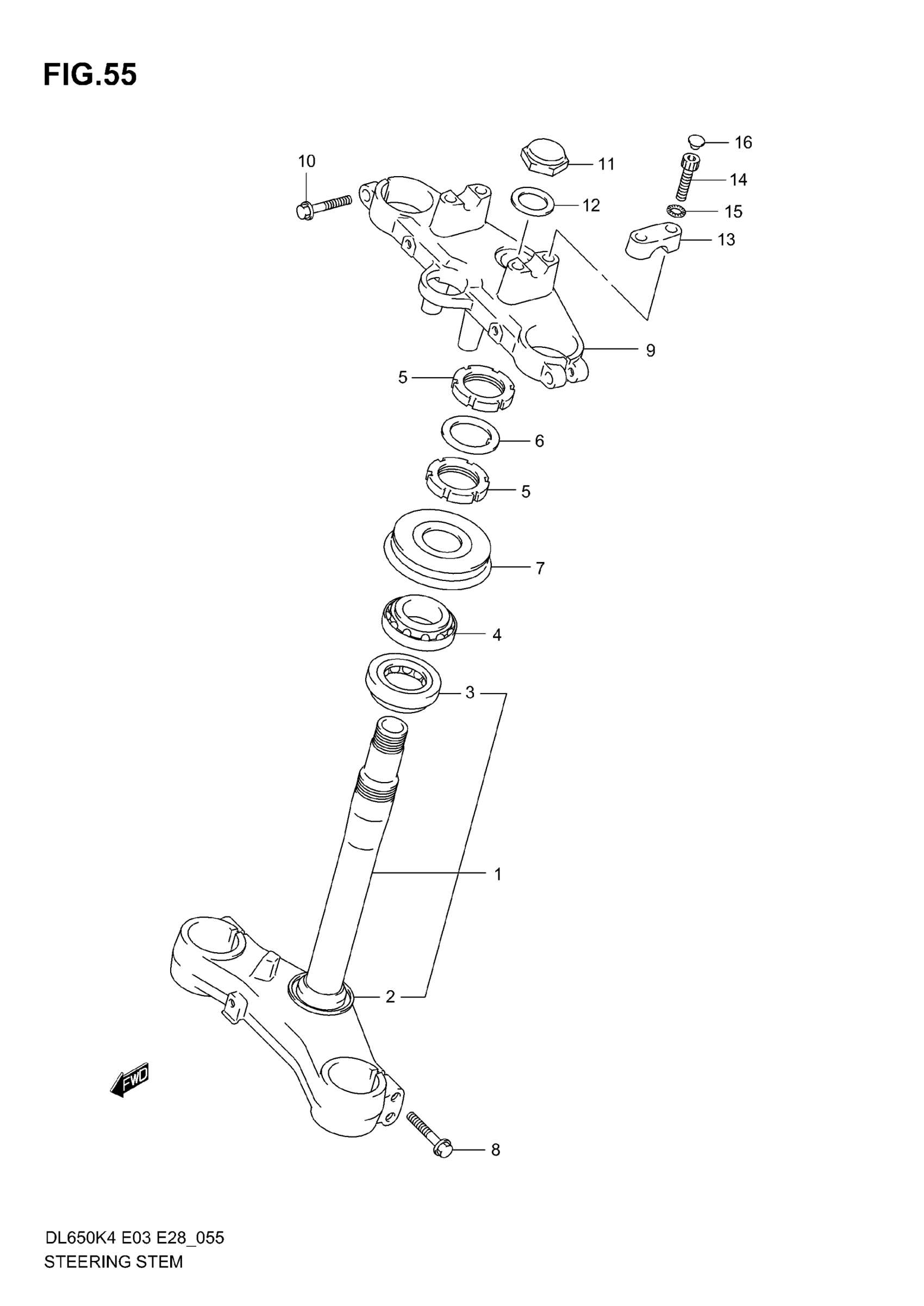

Suzuki DL650 (2006) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-27G00

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BEARING, UPPER (30X55X17)

09267-30010

$48.11

5

NUT

51631-33E00

$23.64

6

WASHER

51641-33E00

$6.20

7

SEAL, STEERING UPR DUST

51643-33E00

$16.01

8

BOLT

51166-35F00

$7.50

9

HEAD, STEERING STEM

51311-27G00

Unavailable

10

BOLT

51166-35F00

$7.50

11

NUT

51353-27G00

$33.80

12

WASHER

51354-06G00

$11.78

13

HOLDER, HANDLE UPPER

56211-32F00

Unavailable

14

BOLT

51321-06G00

$9.17

15

WASHER

09164-08015

$3.21

16

CAP

09250-06011

$2.50
