Description

Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-27G10-YAP

Unavailable

2

SPACER, REAR SWINGING ARM

09180-20118

$26.47

3

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$28.89

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$20.23

5

SPACER,PIVOT BEARING

61251-31E00

$66.87

6

SHAFT, RR SWINGINGARM PIVOT

61211-06G00

Unavailable

7

NUT, RR SWGARM PIVOT BOLT This part replaces 61214-19F00.

61214-19F10

$24.17

8

NUT This part replaces 08319-31188.

08319-3118A

$26.62

9

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-27G00.

61273-27G01

$38.87

10

BOLT (6X20)

09116-06152

$2.21

11

SPACER (6.5X10X7)

09180-06283

$1.97

12

ADJUSTER, CHAIN

61410-03F00

$44.20

13

PLATE, CHAIN ADJUSTER GUIDE R

61421-33D01

$37.23

13

PLATE, CHAIN ADJUSTER GUIDE L

61422-33D01

$37.23

14

WASHER, CHAIN ADJUSTER, R

64712-03F00

$7.57

14

WASHER, CHAIN ADJUSTER, L

64713-03F00

$5.61

15

BOLT

09106-08119

$3.83

16

WASHER

09164-08015

$3.00

17

CASE,CHAIN

61310-16G00

$111.05

18

SCREW

09139-06083

$2.31

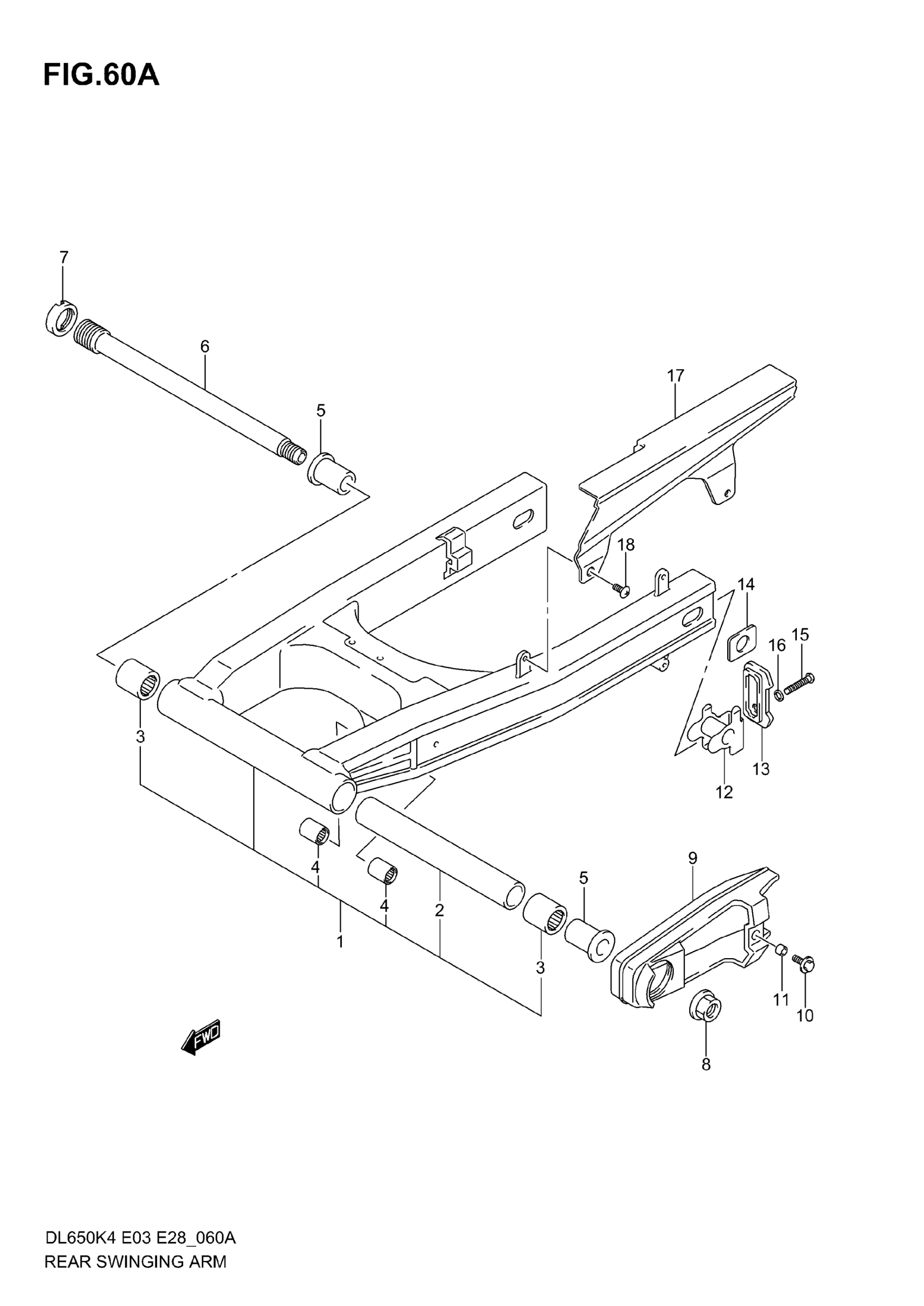

Suzuki DL650 (2006) REAR SWINGING ARM (MODEL K5/K6) Diagram
