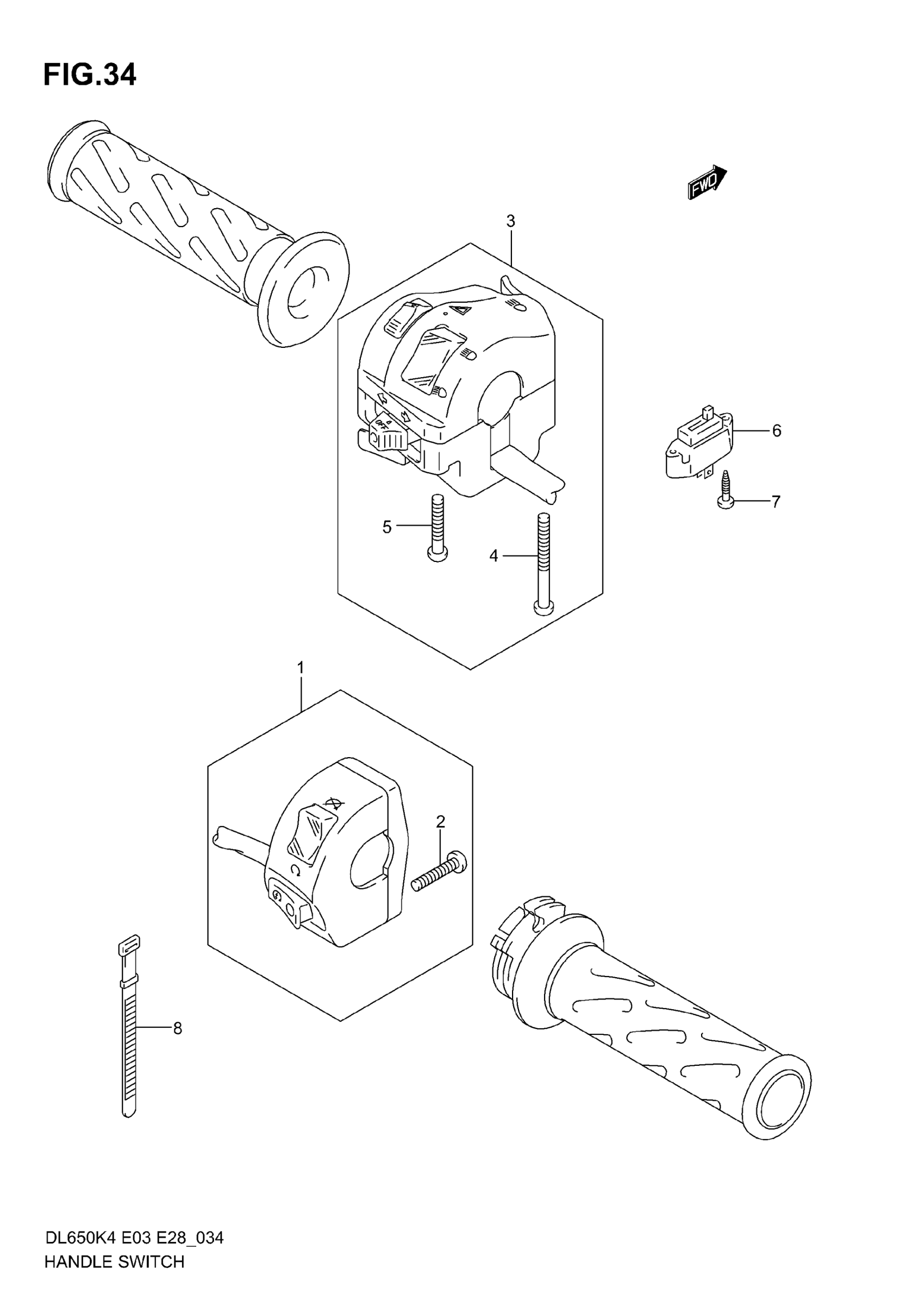

Suzuki DL650 (2006) HANDLE SWITCH (MODEL K4) Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2

37200-06G30

$182.62

2

SCREW

02112-05223

Unavailable

3

SWITCH ASSY, HANDLE LH | Includes Item(s) 4 - 5

37400-27G10

Unavailable

4

SCREW This part replaces 02112-05403.

02112-0540B

$2.70

5

SCREW This part replaces 02112-05303.

02112-0530A

$2.05

6

SWITCH ASSY, CLUTCH

37560-31F00

$18.50

7

SCREW (3X14)

09132-03017

$2.11

8

CLAMP (L:120)

09407-12402

$3.04
