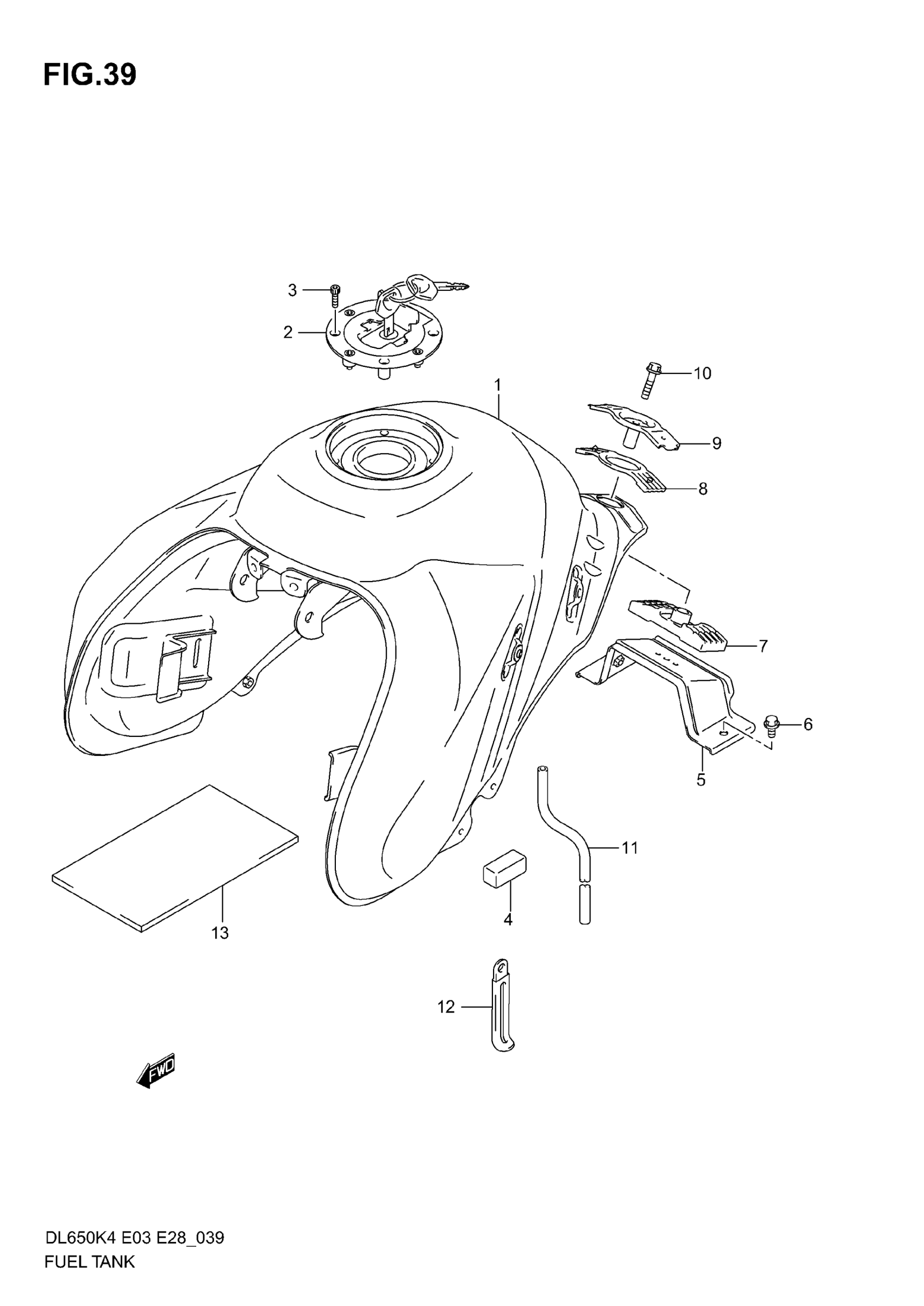

Suzuki DL650 (2006) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL (SILVER) | MODEL K4 E3,E28

44110-06G00-YDZ

Unavailable

1

TANK ASSY,FUEL( | MODEL K4 E3,E28 This part replaces 44110-06G00-YAY.

44100-06G31-YAY

$1,746.07

1

TANK, FUEL (BLUE) | MODEL K4 E3,E28

44110-06G00-YBB

Unavailable

1

TANK, FUEL (SILVER) | MODEL K4 E33

44110-06G20-YDZ

Unavailable

1

TANK ASSY, FUEL | MODEL K4 E33 This part replaces 44110-06G20-YAY.

44100-06G51-YAY

Unavailable

1

TANK, FUEL (BLUE) | MODEL K4 E33

44110-06G20-YBB

Unavailable

1

TANK, FUEL (BLUE) | MODEL K5/K6 E3,E28

44110-06G00-YC2

Unavailable

1

TANK, FUEL (SILVER) | MODEL K5 E3,E28

44110-06G00-YD8

Unavailable

1

TANK ASSY,FUEL( | MODEL K5/K6 E3,E28 This part replaces 44110-06G00-YU7.

44110-06G32-13L

$1,004.37

1

TANK ASSY,FUEL( | MODEL K5 E3,E28 This part replaces 44110-06G00-YAY.

44100-06G31-YAY

$1,746.07

1

TANK, FUEL (BLUE) | MODEL K5/K6 E33

44110-06G20-YC2

Unavailable

1

TANK, FUEL (SILVER) | MODEL K5 E33

44110-06G20-YD8

Unavailable

1

TANK, FUEL (RED) | MODEL K5/K6 E33

44110-06G20-YU7

Unavailable

1

TANK ASSY, FUEL | MODEL K5 E33 This part replaces 44110-06G20-YAY.

44100-06G51-YAY

Unavailable

1

TANK, FUEL (SILVER) | MODEL K6 E3,E28

44110-06G00-YDV

Unavailable

1

TANK, FUEL (BLACK) | MODEL K6 E3,E28

44110-06G00-YKV

Unavailable

1

TANK, FUEL (SILVER) | MODEL K6 E33

44110-06G20-YDV

Unavailable

1

TANK, FUEL (BLACK) | MODEL K6 E33

44110-06G20-YKV

Unavailable

2

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33820.

44201-33822

$152.27

2

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

3

BOLT

09106-05017

$2.83

4

CUSHION, SIDE

44541-06G00

$10.62

5

BRACKET, FUEL TANK RR This part replaces 44550-06G01.

44550-06G10

Unavailable

6

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

7

CUSHION,FUEL TANK RR LWR

44545-06G00

$18.25

8

CUSHION,FUEL TANK RR UPR

44542-06G00

$16.78

9

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

10

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

11

HOSE,FUEL TANK This part replaces 44423-06G00.

44423-06G01

$17.92

12

CLAMP

09404-06429

$1.83

13

SHIELD, TANK CENTER

44194-27G00

$36.17
