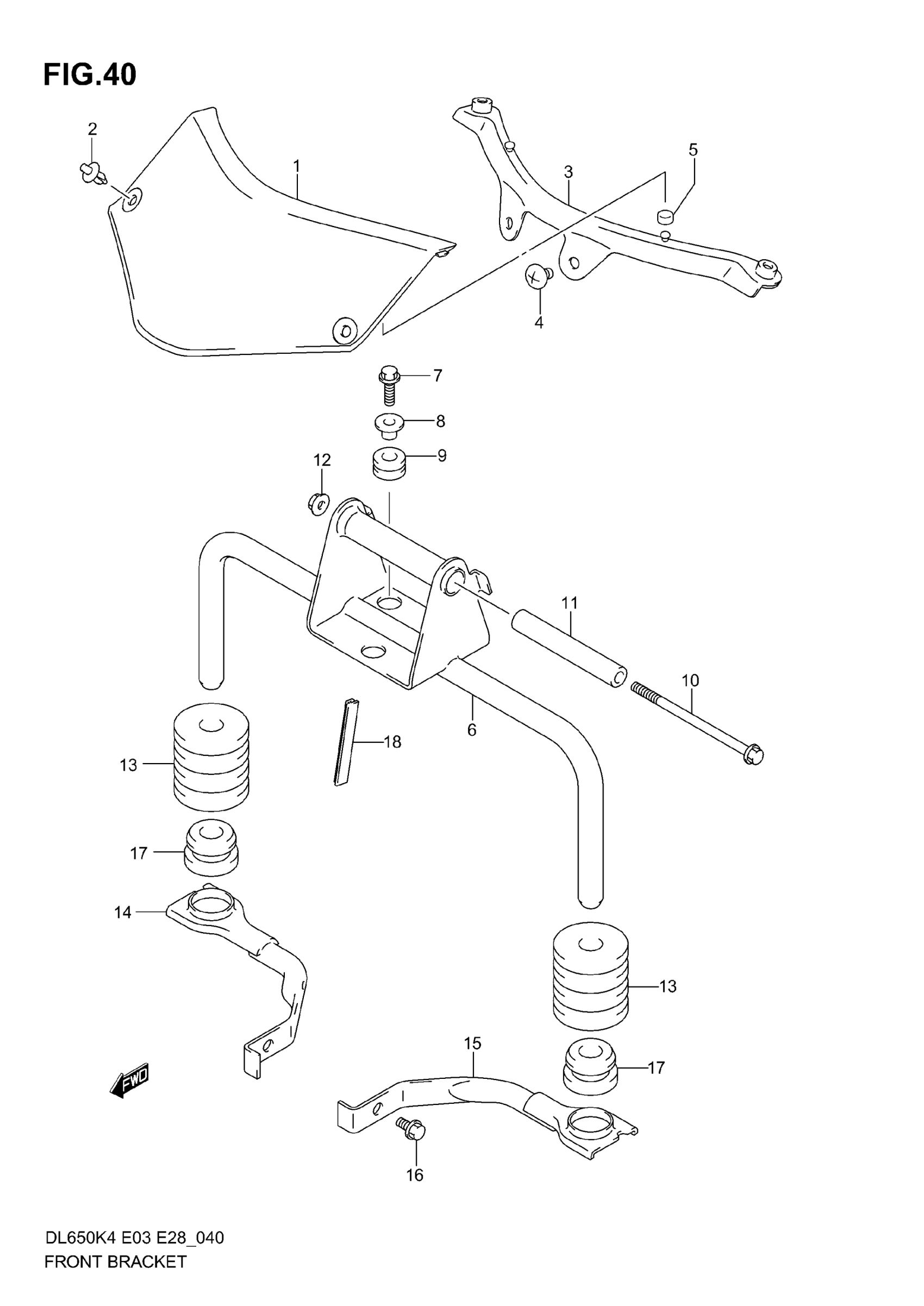

Suzuki DL650 (2006) FRONT BRACKET Diagram

COVER, FRONT (BLACK)

44171-06G10-291

$27.96

CLIP (BLACK)

09409-06314-5PK

$2.78

BRACKET, COVER

44160-06G00

$48.38

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

CUSHION, COVER

44164-06G00

$6.72

BRACKET, FRONT

44520-06G00

Unavailable

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

SPACER

09169-06062

$2.50

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

BOLT This part replaces 01550-06953.

01550-0695B

$3.91

SPACER

44561-35F00

$13.88

NUT This part replaces 08319-31063.

08319-3106A

$2.03

CUSHION

44511-06G00

Unavailable

BRACKET,FR SIDE This part replaces 44560-06G00.

44560-06G01

$31.27

BRACKET, SIDE LH

44570-06G00

Unavailable

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

CUSHION

09320-12054

Unavailable

MOLDING, BRACKET

68241-04X50-00B

$27.30

MOLDING, COVER

68241-04X50-300

$7.32
