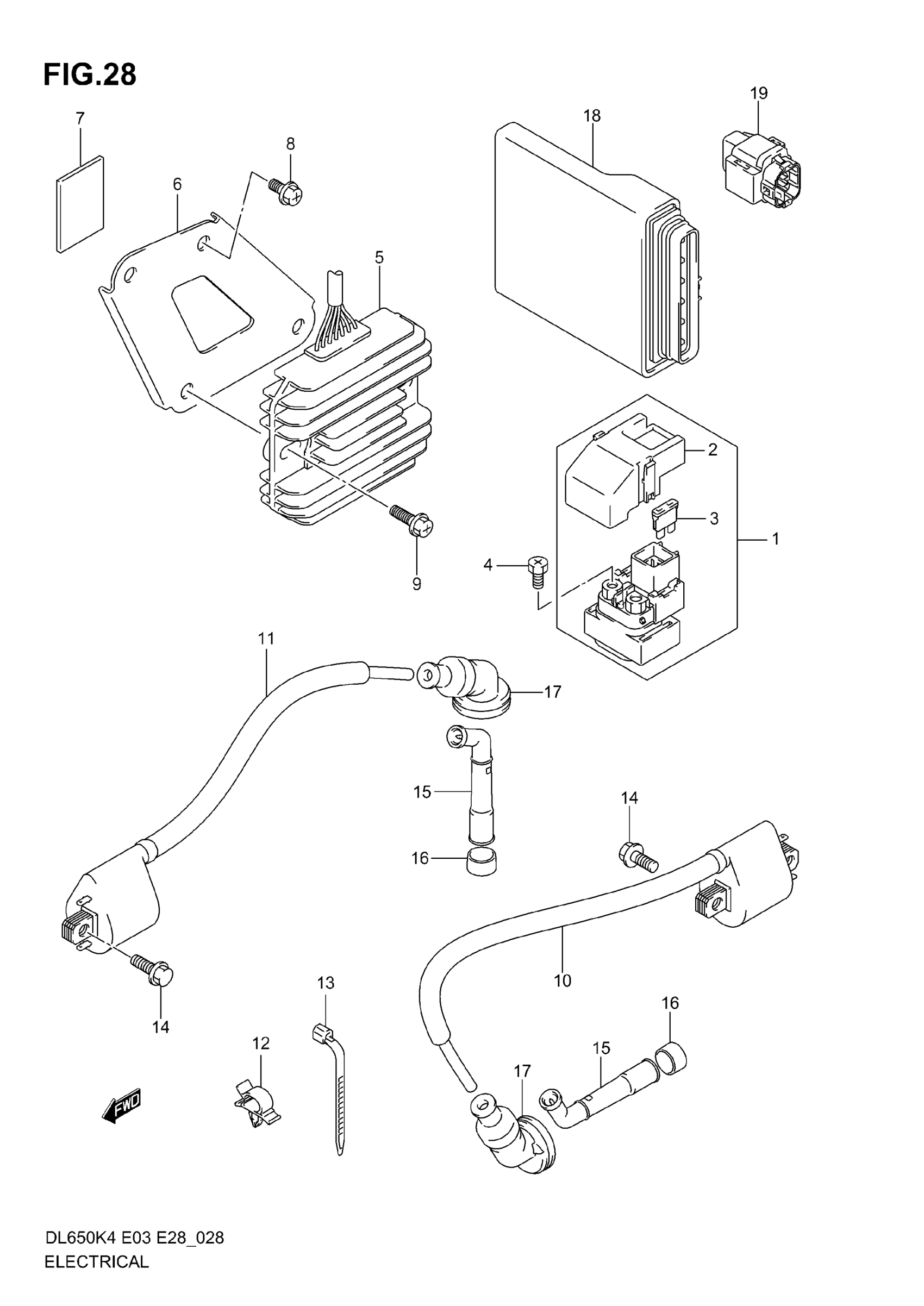

Suzuki DL650 (2006) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-06G00.

31800-06G02

$67.32

2

COVER, RELAY ASSY

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-16G00.

32800-16G02

$243.97

6

BRACKET, RECT FTG

32831-27G00

Unavailable

7

PROTECTOR (170X95X3.0) | CUT AS REQUIRED PROFILE (30X40)

33651-37000

$4.48

8

BOLT

02162-06103

Unavailable

9

BOLT This part replaces 02162-06203.

02162-0620C

$1.71

10

COIL ASSY, IGNITION This part replaces 33410-17G00.

33410-17G01

$72.92

11

COIL ASSY,IGNIT This part replaces 33420-17G00.

33420-17G01

$92.78

12

CLAMP

09403-10319

Unavailable

13

CLAMP (L:165)

09407-18402

$2.19

14

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

15

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

16

SEAL, SPARK PLUG CAP

33541-23E01

$6.34

17

SEAL,HIGH TENSION CORD CTR This part replaces 33542-17G00.

33542-17G01

$8.12

18

CONTROL UNIT, FI | MODEL K4/K5 E3,E28

32920-27G20

Unavailable

18

CONTROL UNIT, FI | MODEL K4/K5 E33

32920-27G40

Unavailable

18

CONTROL UNIT, FI | MODEL K6 E3,E28,E33

32920-27G40

Unavailable

19

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88
