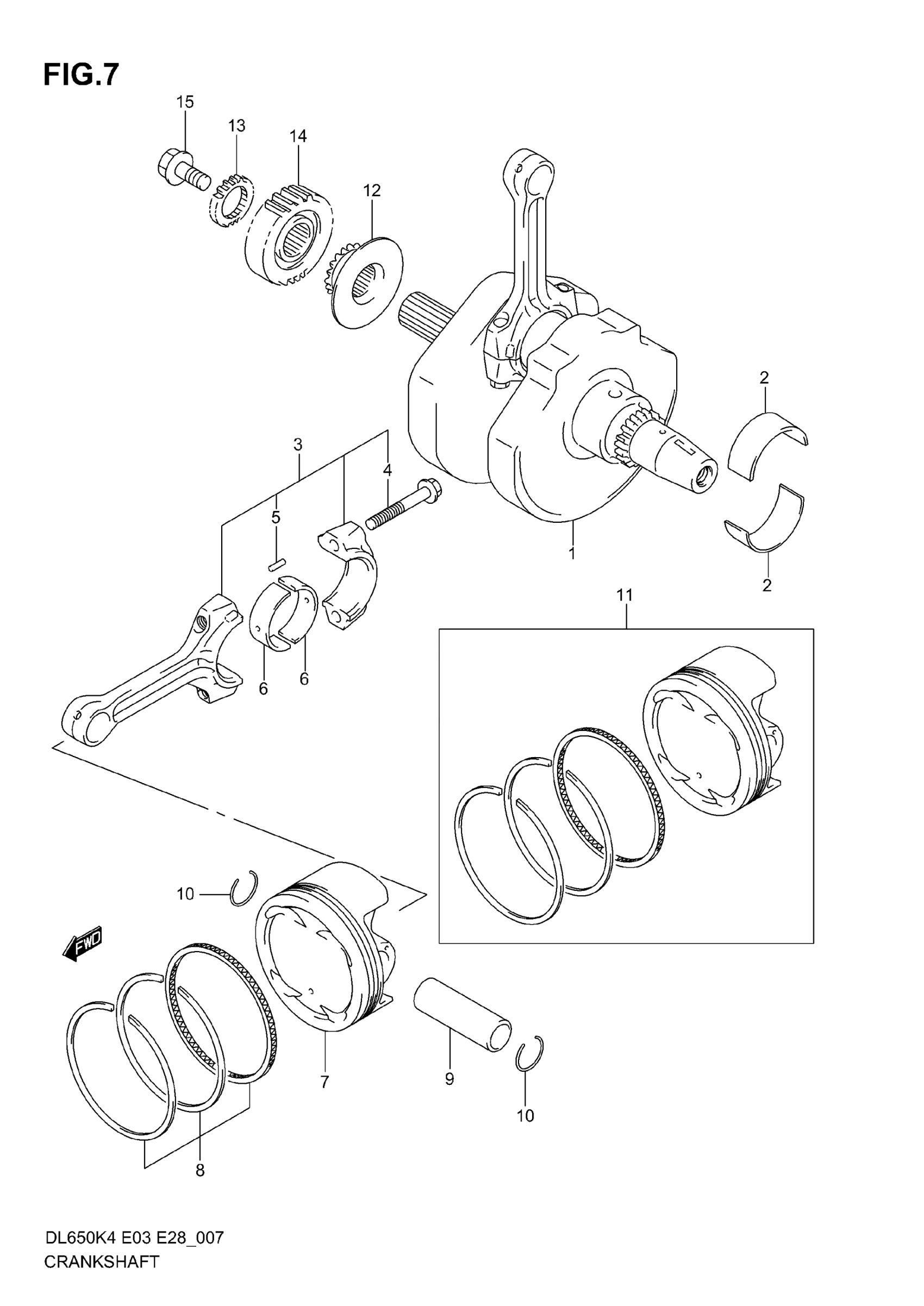

Suzuki DL650 (2006) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12220-17G00

$1,423.62

2

BEARING, CRANKSHAFT (GREEN)

12229-27G00-0A0

$23.32

2

BEARING, CRANKSHAFT (BLACK)

12229-27G00-0B0

$18.73

2

BEARING, CRANKSHAFT (BROWN)

12229-27G00-0C0

$22.87

3

CONNECTING ROD ASSY | Includes Item(s) 4 - 5 This part replaces 12160-17G00.

12160-17G10

$206.73

4

BOLT, CONNECTING ROD

12163-24F00

$16.45

5

PIN, CONNECTING ROD

12165-27A50

$1.54

6

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

$16.80

6

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

$16.80

6

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

$17.30

6

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

$17.30

7

PISTON

12111-20F00-0F0

$121.00

8

RING SET, PISTON

12140-17G00

$52.60

9

PIN,PISTON

12151-05A00

$15.61

10

CIRCLIP

09381-20004

$1.65

11

PISTON SET (OS:0.5) | OPT

12100-17G00-050

$285.23

12

SPROCKET,CAM CHAIN DRIVE (NT:

12731-19F00

Unavailable

13

GEAR,WATER PUMP DRIVE (NT:17)

17451-17G00

Unavailable

14

GEAR, PRIMARY DRIVE

21111-20F10

Unavailable

15

BOLT, PRIMARY DRIVE GEAR

09103-10338

$8.12
