Description

Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-17G00

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

.GASKET,CLUTCH COVER This part replaces 11482-17G00.

11482-44H00

$18.76

4

PIN

04211-09149

$1.65

5

BOLT

09103-06214

$2.48

6

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

8

COVER, ENGINE SPROCKET

11361-27G00

$87.70

9

BOLT

09103-06224

$2.70

10

COVER, MAGNETO

11351-19F50

$341.18

11

.GASKET,MAGNETO COVER

11483-19F00

$12.78

12

PIN

04211-09149

$1.65

13

BOLT

09103-06214

$2.48

14

BOLT

09103-06239

$2.66

15

GASKET (5.8X13X1.2)

09168-06023

$2.35

16

PLUG

09259-26011

$11.03

17

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

18

PLUG

09248-16012

$4.64

19

GASKET (13.8X18.8X0.4)

09168-16002

$1.91

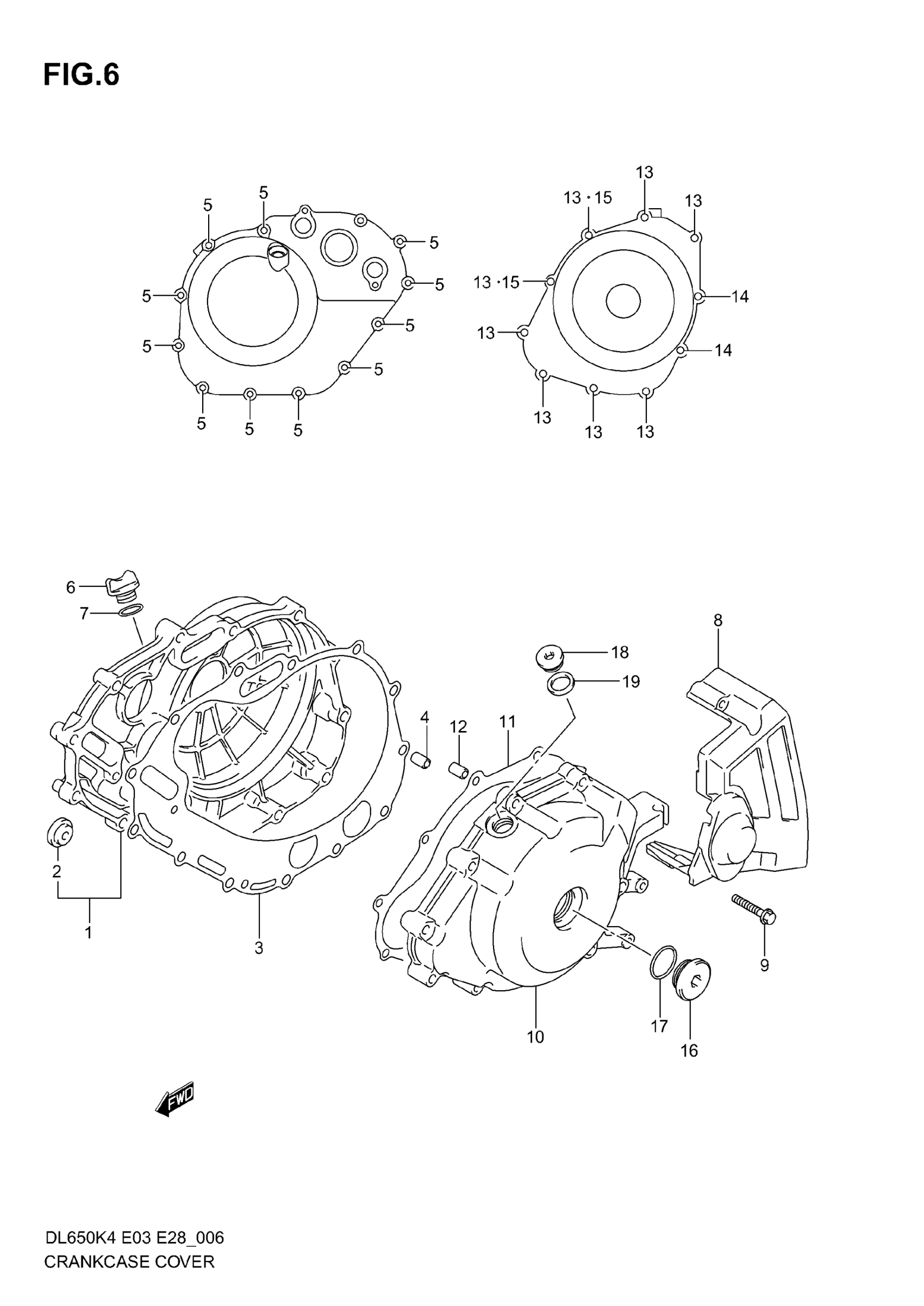

Suzuki DL650 (2006) CRANKCASE COVER Diagram

COVER, CLUTCH | Includes Item(s) 2

LENS, OIL LEVEL CHECK

.GASKET,CLUTCH COVER This part replaces 11482-17G00.

PIN

BOLT

PLUG,ENGINE OIL FILLER

O RING (D:3.1,ID:16.8)

COVER, ENGINE SPROCKET

BOLT

COVER, MAGNETO

.GASKET,MAGNETO COVER

PIN

BOLT

BOLT

GASKET (5.8X13X1.2)

PLUG

O RING (D:3.1,ID:22.7)

PLUG

GASKET (13.8X18.8X0.4)
