Description

Price

1

BODY, COWLING (BLACK) This part replaces 94410-27G00-YAY.

94410-27G01-YAY

$454.28

2

WINDSCREEN | Includes Item(s) 3 This part replaces 94610-27G00-CT5.

94610-27G01-CT5

$524.05

3

TAPE,WINDSCREEN This part replaces 68270-27G00-CT5.

68270-27G01-CT5

$73.40

4

SCREW, LOWER

09139-05075

$2.58

5

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

6

NUT

94619-36A00

$7.85

7

COVER, COWL INNER

94461-27G00

$162.93

8

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

9

WASHER

09161-05017

$3.18

10

NUT

09159-05019

$7.14

11

COVER, WINDSCREEN RH (BLACK) This part replaces 94641-27G00-291.

94601-27G00-291

$16.80

12

COVER, WINDSCREEN LH (BLACK) This part replaces 94642-27G00-291.

94602-27G00-291

$16.80

13

SCREW

09132-05053

$2.28

14

PANEL, METER (BLACK) | Includes Item(s) 15

94630-27G00-291

$149.82

15

CUSHION

44885-38A00

$4.58

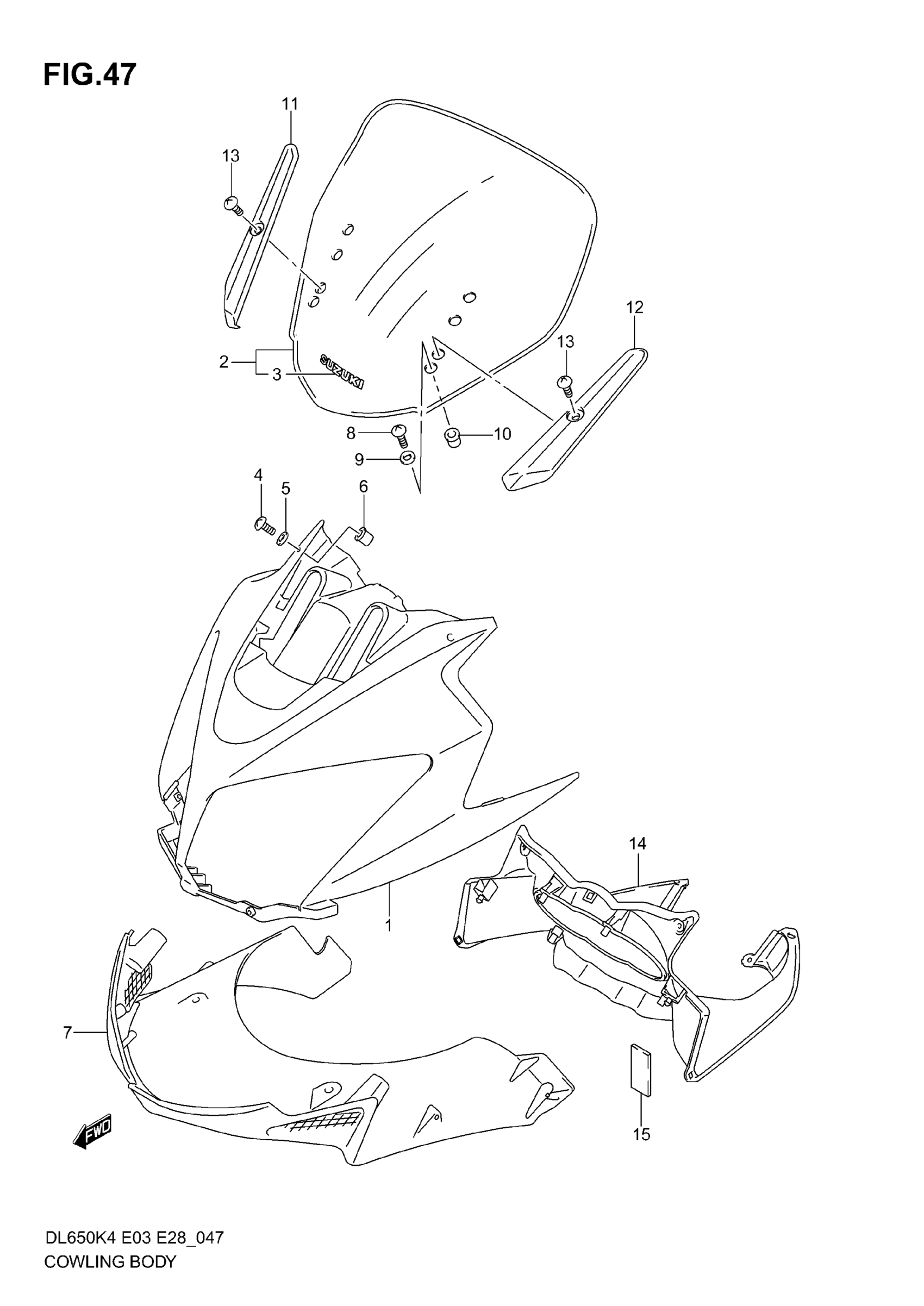

Suzuki DL650 (2006) COWLING BODY Diagram
