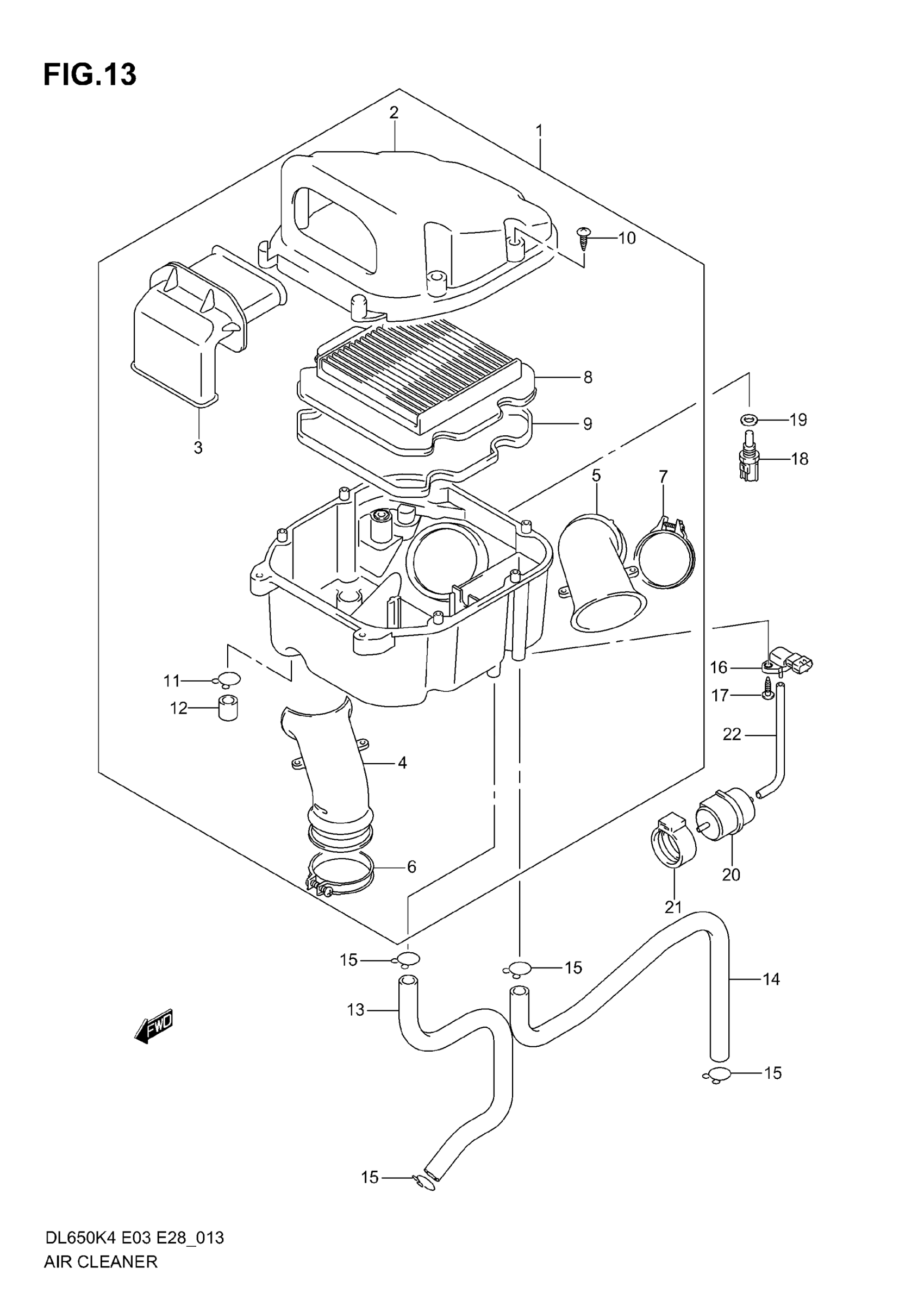

Suzuki DL650 (2006) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-27G00

Unavailable

2

CAP, AIR CLEANER

13740-27G00

Unavailable

3

..TUBE, INLET This part replaces 13891-27G00.

13891-27G01

$44.45

4

TUBE, OUTLET A

13881-27G00

Unavailable

5

TUBE, OUTLET B

13882-27G00

Unavailable

6

CLAMP, CUTLET TUBE FRONT

13826-17G00

$5.64

7

CLAMP, OUTLET TUBE REAR

13826-17G00

$5.64

8

FILTER, AIR CLEANER

13780-06G00

$42.57

9

..GASKET, AIR CLEANER

13746-06G00

$16.58

10

SCREW This part replaces 03142-05163.

03141-0516A

$1.49

11

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

12

CLIP

09401-14301

$2.35

13

TUBE, BREATHER CRANKCASE

13851-27G00

Unavailable

14

TUBE, BREATHER CRANKCASE

13852-27G00

Unavailable

15

CLIP

09401-15101

$2.26

16

SENSOR COMP, BOOST This part replaces 18590-17G00.

18590-17G01

$382.13

17

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

18

SENSOR AIR TEMP

13650-57F00

$121.55

19

GASKET

09168-12017

$1.95

20

CHAMBER, VACUUM

13715-06G00

Unavailable

21

BAND, VACUUM CHAMBER

13912-17G00

Unavailable

22

HOSE (3.5X7.5X600) | L:600!160 This part replaces 09355-35755-600.

09355-35007-600

$6.94
