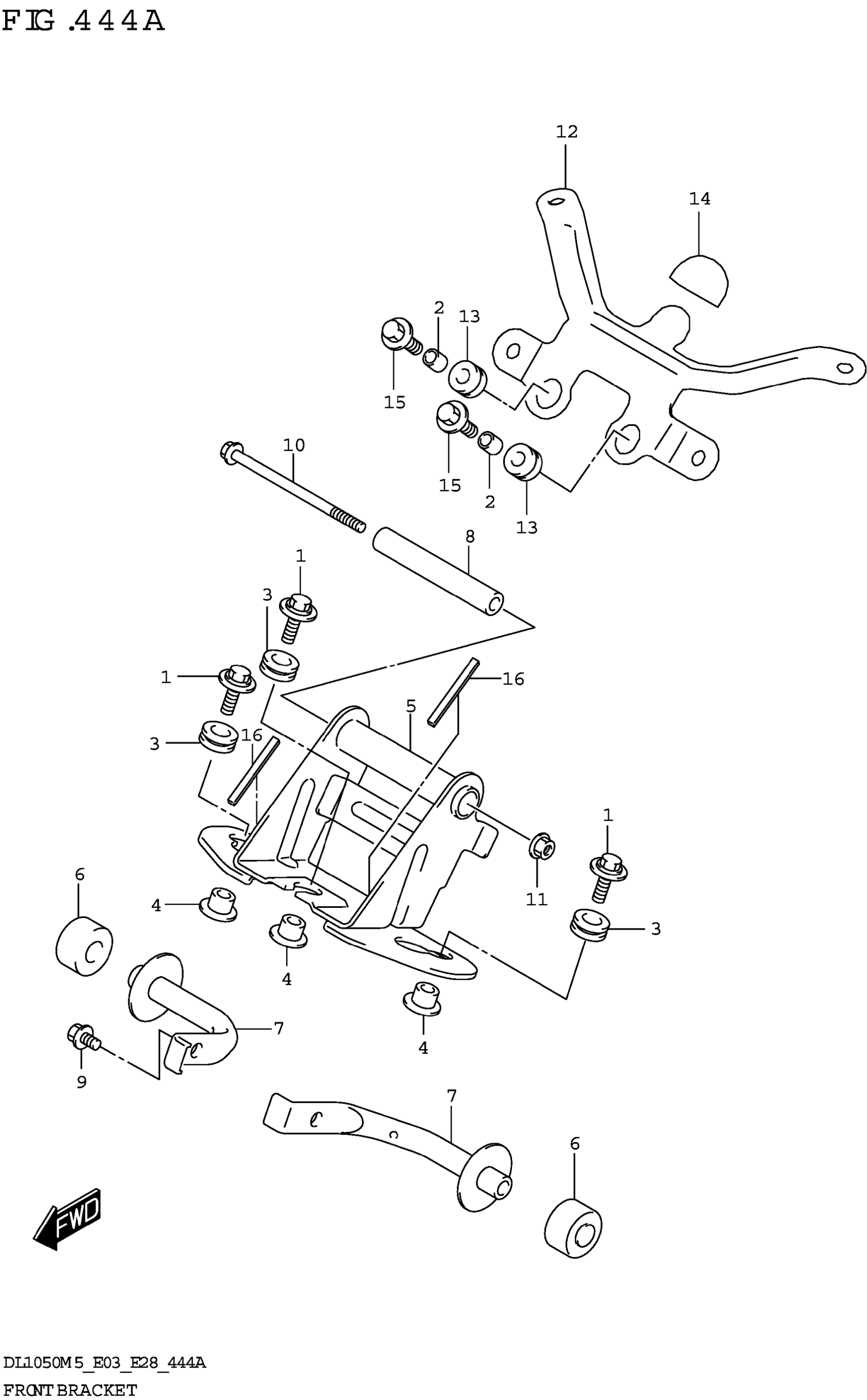

Suzuki DL1050RJM5 (2025) FRONT BRACKET Diagram

#

Description
Price

1

BOLT (6X30)

09118-06112

$2.95

2

SPACER (6.5X9X10.5)

09180-06264

$2.85

3

CUSHION,FUEL TANK FRONT

44511-16G01

$3.77

4

SPACER,FUEL TANK FR

44512-16G00

$6.80

5

BRACKET,FUEL TANK FRONT

44520-31J01

$64.70

6

CUSHION,FRONT SIDE BRKT

44543-31J01

$5.63

7

BRACKET,FRONT SIDE

44560-31J00

$18.72

8

SPACER,FUEL TANK

44561-35F00

$13.06

9

BOLT

01550-0616A

$1.97

10

BOLT

01550-0695A

Unavailable

11

NUT

08319-3106A

$2.01

12

BRACKET,FRONT COVER

44160-06L00

$38.50

13

CUSHION,FUEL TANK COVER BRKT

44164-31J01

$4.17

14

CUSHION,FR COVER BRKT

44542-06L00

$10.67

15

BOLT (6X20)

09116-06009

$2.13

16

MOLDING, FRONT This part replaces 13623-48B00.

68241-04X50-300

$6.89
