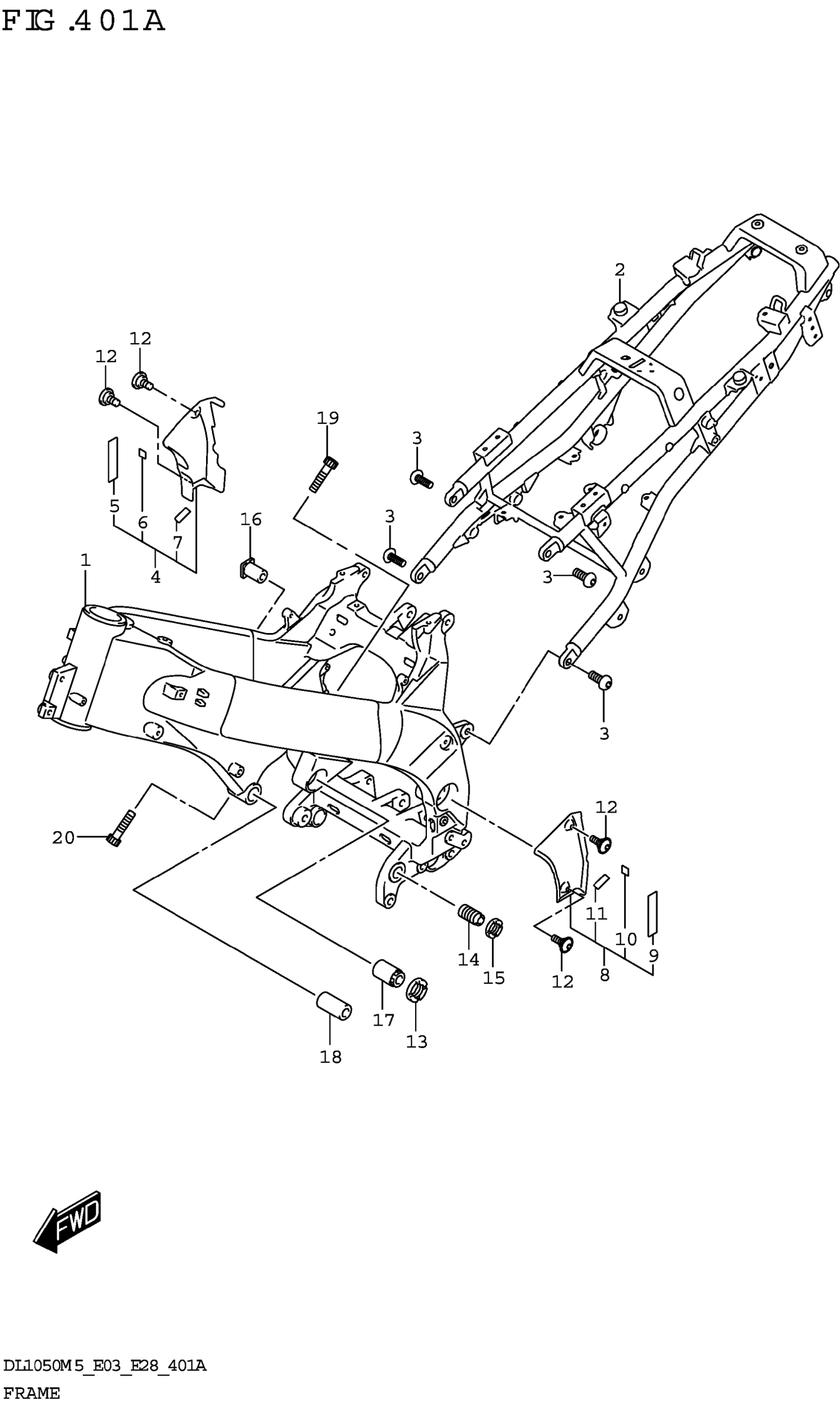

Suzuki DL1050RJM5 (2025) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-31J40-YAP

$3,355.67

2

RAIL,SEAT (BLACK)

41200-31J40-YAP

$624.80

3

BOLT,SEAT RAIL

09139-10006

$4.55

4

COVER,PIVOT RH

43580-31J00

$26.40

5

.PROTECTOR (20X90X2.0)

33652-38A11

$1.93

6

CUSHION (10X10X1)

63115-37H00

$3.42

7

CUSHION (10X30X2)

94429-21E00

$3.47

8

COVER,PIVOT LH

43590-31J00

$26.40

9

.PROTECTOR (20X90X2.0)

33652-38A11

$1.93

10

CUSHION (10X10X1)

63115-37H00

$3.42

11

CUSHION (10X30X2)

94429-21E00

$3.47

12

SCREW (5X13)

09139-05092

$2.22

13

NUT,CRANK CASE ADJUST CTR

41922-19F20

$21.33

14

BOLT,CRANK CASE ADJUST LWR

41921-16G11

$13.47

15

NUT,CRANK CASE ADJUST LWR

41922-33E20

Unavailable

16

SPACER,MOUNTING RR UPR,R

41941-19F01

$45.52

17

BOLT,CRANK CASE ADJUST

41921-47H00

$59.37

18

SPACER,ENG HEAD MTG,RR LH

41942-02F00

$32.40

19

BOLT

07130-0840B

$3.58

20

BOLT

07130-0840B

$3.58
