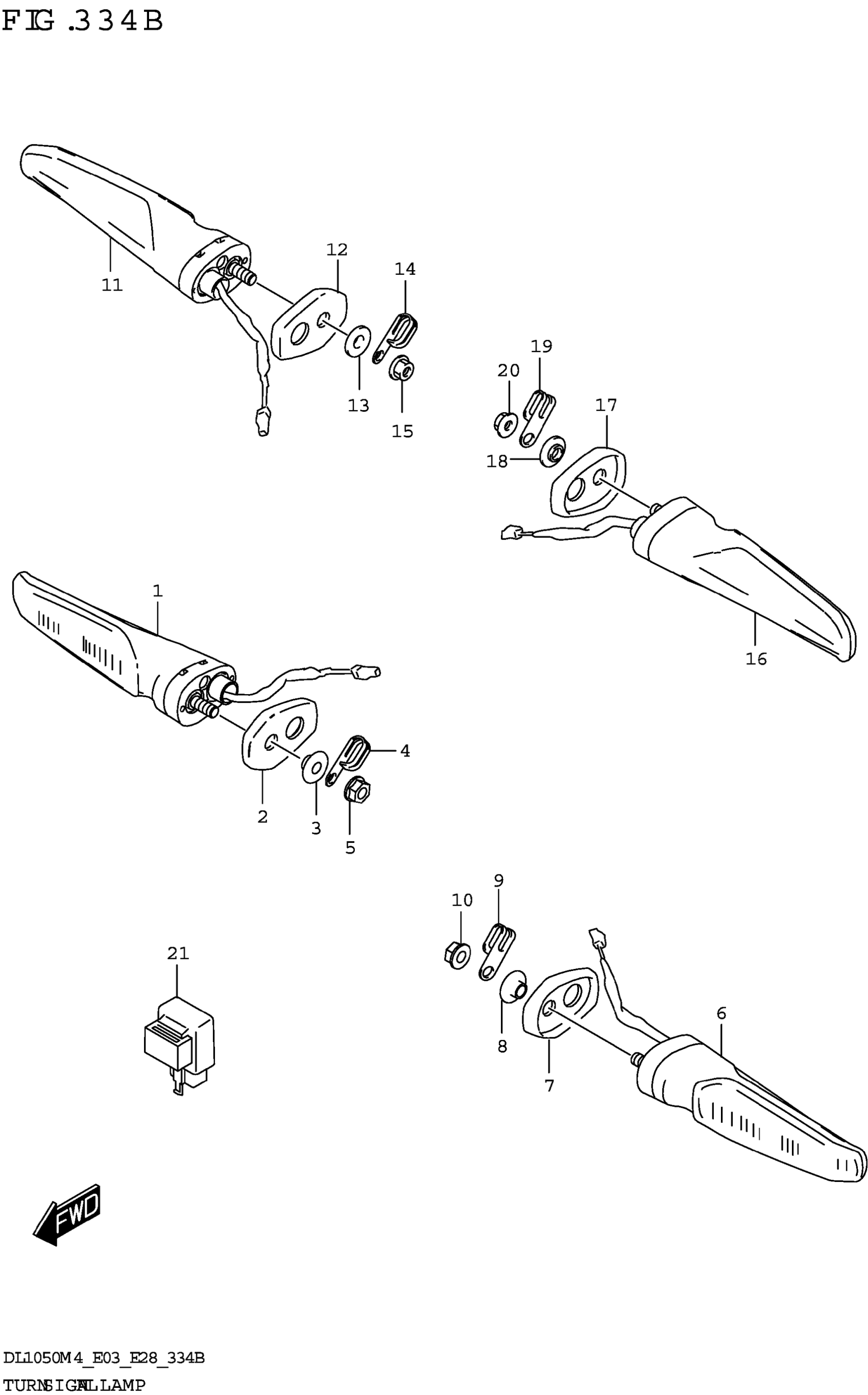

Suzuki DL1050RJM4 (2024) TURNSIGNAL LAMP (DL1050RR) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R This part replaces 35601-06LD0.

35601-06LD1

$129.17

2

CUSHION,TURNSIGNAL

35690-06L00

$7.64

3

WASHER

09169-06098

$4.53

4

CLAMP (L:45)

09404-06429

$1.83

5

NUT (6X12)

08316-1006A

$2.19

6

LAMP ASSY,FRONT TURNSIGNAL,L

35602-06LD0

$151.95

7

CUSHION,TURNSIGNAL

35690-06L00

$7.64

8

WASHER

09169-06098

$4.53

9

CLAMP (L:45)

09404-06429

$1.83

10

NUT (6X12)

08316-1006A

$2.19

11

LAMP ASSY,REAR TURNSIGNAL,R

35603-06LD0

$151.95

12

CUSHION,TURNSIGNAL

35690-06L00

$7.64

13

WASHER

09169-06098

$4.53

14

CLAMP (L:45)

09404-06429

$1.83

15

NUT (6X12)

08316-1006A

$2.19

16

LAMP ASSY,REAR TURNSIGNAL,L

35604-06LD0

$151.95

17

CUSHION,TURNSIGNAL

35690-06L00

$7.64

18

WASHER

09169-06098

$4.53

19

CLAMP (L:45)

09404-06429

$1.83

20

NUT (6X12)

08316-1006A

$2.19

21

RELAY ASSY,TURNSIGNAL This part replaces 38610-06L00.

38610-06L01

$72.60
