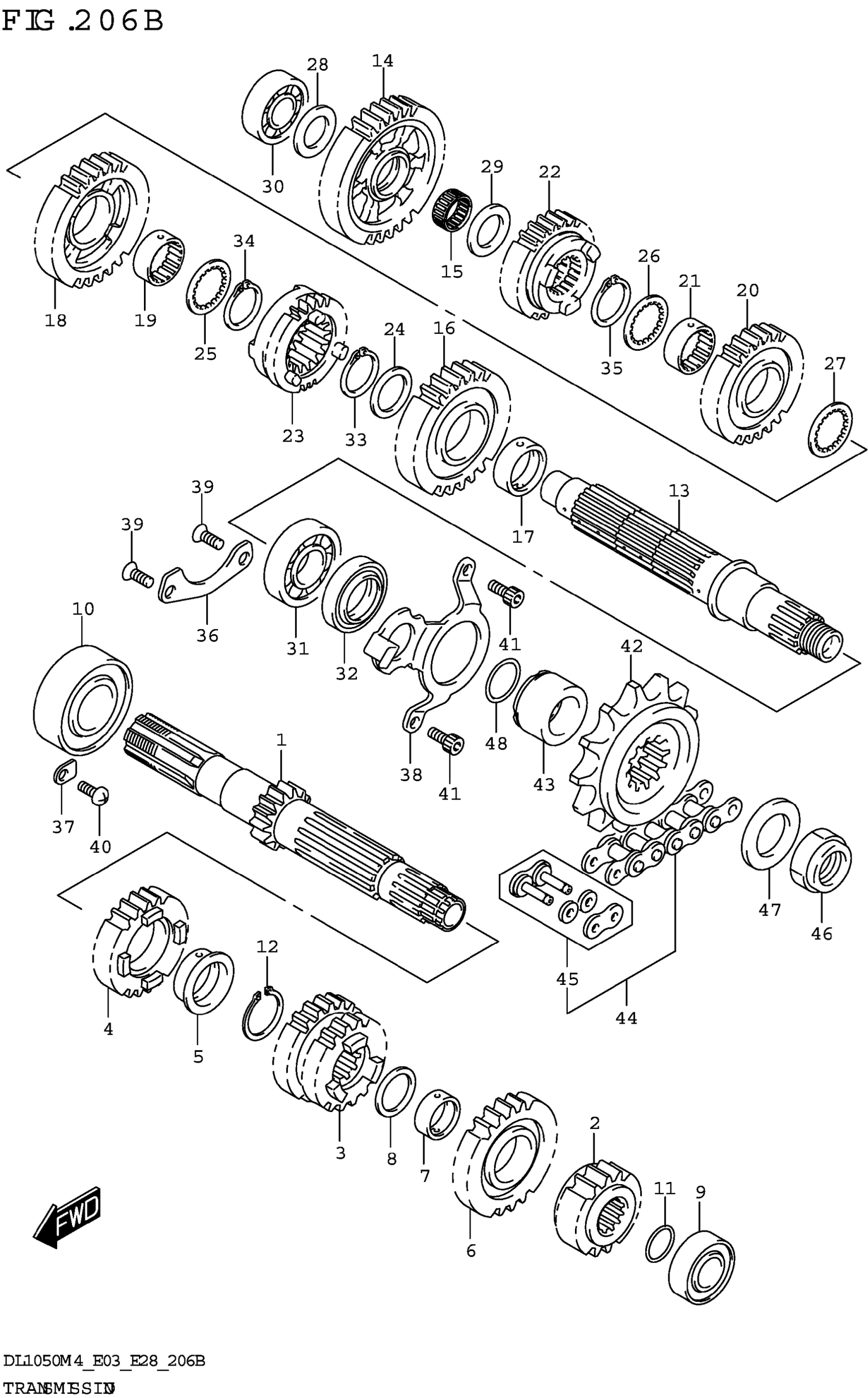

Suzuki DL1050RJM4 (2024) TRANSMISSION (DL1050RJ) Diagram

#

Description
Price

1

SHAFT,COUNTER (NT:12)

24120-06G00

Unavailable

2

GEAR,2ND DRIVE (NT:15)

24221-02F01

Unavailable

3

GEAR,3RD & 4TH DRIVE

24231-02F40

$111.00

4

GEAR,5TH DRIVE (NT:23)

24251-02F11

$164.38

5

BUSH,5TH DRIVE GEAR

24252-02F10

$38.95

6

GEAR,6TH DRIVE (NT:24)

24261-02F20

Unavailable

7

BUSH,6TH DRIVE GEAR

24262-02F00

Unavailable

8

SHIM (22X30X1.0)

09181-22167

$2.96

9

BEARING (20X47X14)

09262-20139

$44.97

10

BEARING (25X62X17)

09262-25073

$25.92

11

O-RING (D:1.9,ID:16.6)

09280-17004

$3.67

12

CIRCLIP

09380-27001

$2.38

13

SHAFT,DRIVE

24130-02F30

$142.95

14

GEAR,1ST DRIVEN (NT:36)

24311-06G00

Unavailable

15

BEARING (22X26X11)

09263-22068

$6.25

16

GEAR,2ND DRIVEN (NT:29)

24321-02F11

Unavailable

17

BUSH,2ND DRIVEN GEAR

24322-02F01

$21.52

18

GEAR,3RD DRIVEN (NT:27)

24331-02F20

Unavailable

19

BUSH,3RD DRIVEN GEAR

24332-17E20

$39.02

20

GEAR,4TH DRIVEN

24341-02F40

$87.83

21

BUSH,3RD DRIVEN GEAR

24332-17E20

$39.02

22

GEAR,5TH DRIVEN (NT:25)

24351-02F20

$123.53

23

GEAR,6TH DRIVEN (NT:24)

24361-02F30

Unavailable

24

WASHER (27X36X1.0)

09160-27008

$3.68

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

$4.99

26

WASHER,3RD & 4TH DRIVEN

24333-02F00

$4.99

27

WASHER,3RD & 4TH DRIVEN GEAR

24333-02F10

$7.02

28

SHIM (20X34X1)

09181-20251

$2.79

29

SHIM (22X34X1)

09181-22223

$3.12

30

BEARING (20X52X15)

09262-20082

$30.63

31

BEARING (28X68X18)

09262-28053

$98.20

32

OIL SEAL (38X52X8)

09283-38028

$23.40

33

CIRCLIP

09380-27001

$2.38

34

CIRCLIP

09380-27001

$2.38

35

CIRCLIP

09380-27001

$2.38

36

RETAINER,DRIVE SHAFT BRG

24741-06G00

$8.05

37

RETAINER

24741-21A00

$2.81

38

RETAINER,DRIVE SHAFT OIL SEAL

24751-06G00

$12.28

39

SCREW (6X12)

09126-06011

$2.03

40

SCREW

02112-0612A

$1.49

41

BOLT

07130-0612A

$2.50

42

SPROCKET,ENGINE (NT:17)

27511-20A21

$47.82

43

SPACER,ENGINE SPROCKET

27531-31J00

$36.65

44

CHAIN ASSY,DRIVE

27600-06L00-120

$228.88

45

.JOINT SET CHAIN

27620-06L00

$11.63

46

NUT

09159-20004

$15.67

47

WASHER (25X41X3)

09160-25009

$5.36

48

O-RING (D:2.4,ID:23.7)

09280-24010

$5.64
