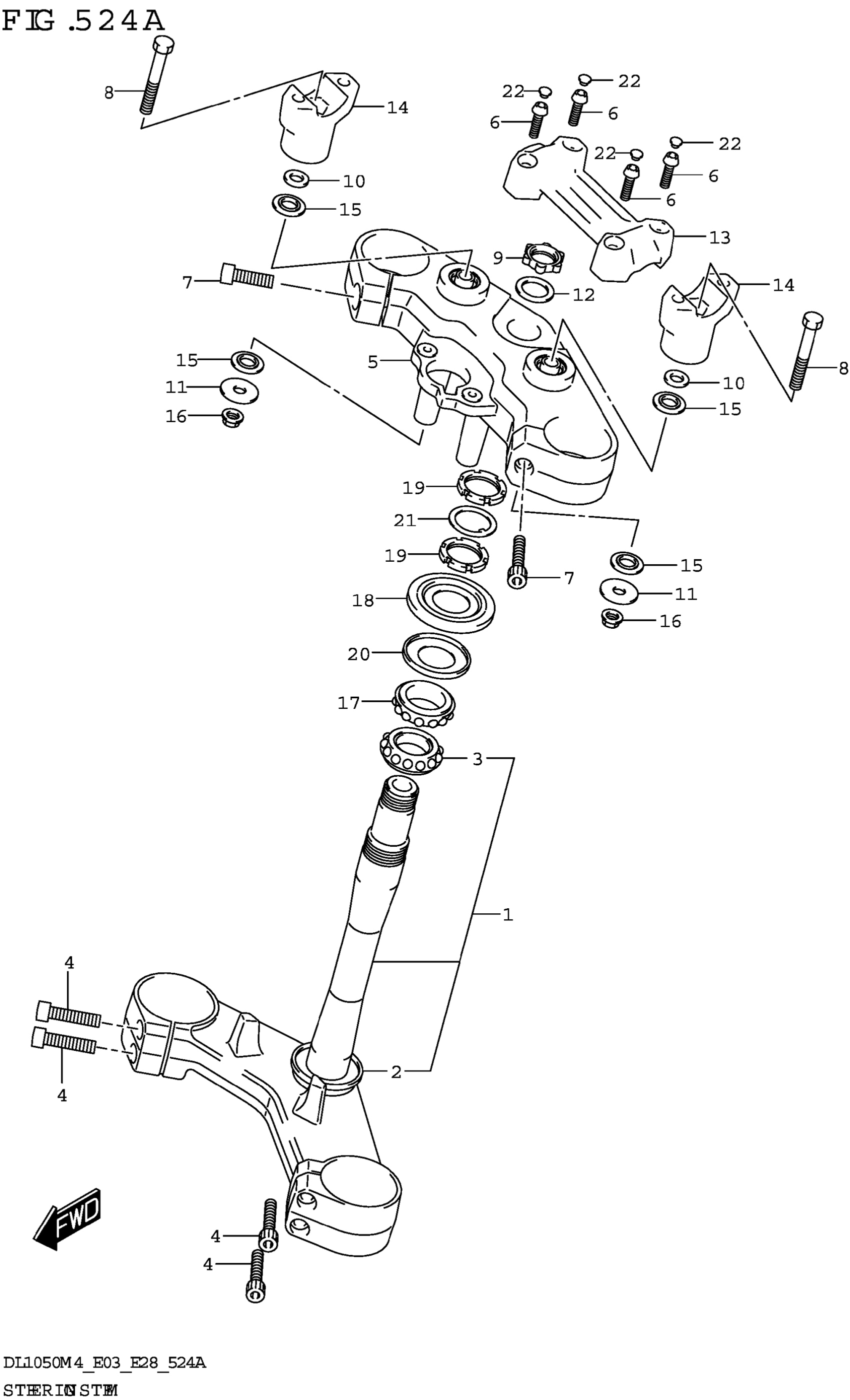

Suzuki DL1050RJM4 (2024) STEERING STEM (DL1050RR) Diagram

#

Description
Price

1

BRACKET,UNDER

51410-31J00

$640.68

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

3

.BEARING (30X55X17)

09267-30010

$43.41

4

BOLT (8X40)

51166-40H20

$7.17

5

BRACKET,UPPER (SILVER)

51310-06L00-QSC

$388.32

6

BOLT (8X40)

51166-40H20

$7.17

7

BOLT (8X40)

51166-40H20

$7.17

8

BOLT,HANDLE HOLDER LOWER

51321-06L00

$10.38

9

NUT

51353-06L00

$36.28

10

WASHER

51354-17H00

$4.90

11

WASHER

51355-16G00

$6.52

12

WASHER

51356-24F50

$7.35

13

HOLDER,HANDLE UPPER (SILVER)

51331-06L00-QSC

$146.85

14

HOLDER,HANDLE LOWER (SILVER)

51332-06L00-QSC

$106.87

15

RUBBER,HANDLE HOLDER

56245-31J00

$3.23

16

NUT

08319-3110A

$2.73

17

.BEARING (30X55X17)

09267-30010

$43.41

18

COVER,STEERING UPR

51643-41G00

$8.20

19

NUT,STEERING STEM

51631-33E00

$21.64

20

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

21

WASHER,STEERING STEM

51641-33E00

$5.67

22

CAP (OD:10.5)

09250-06015

$2.75
