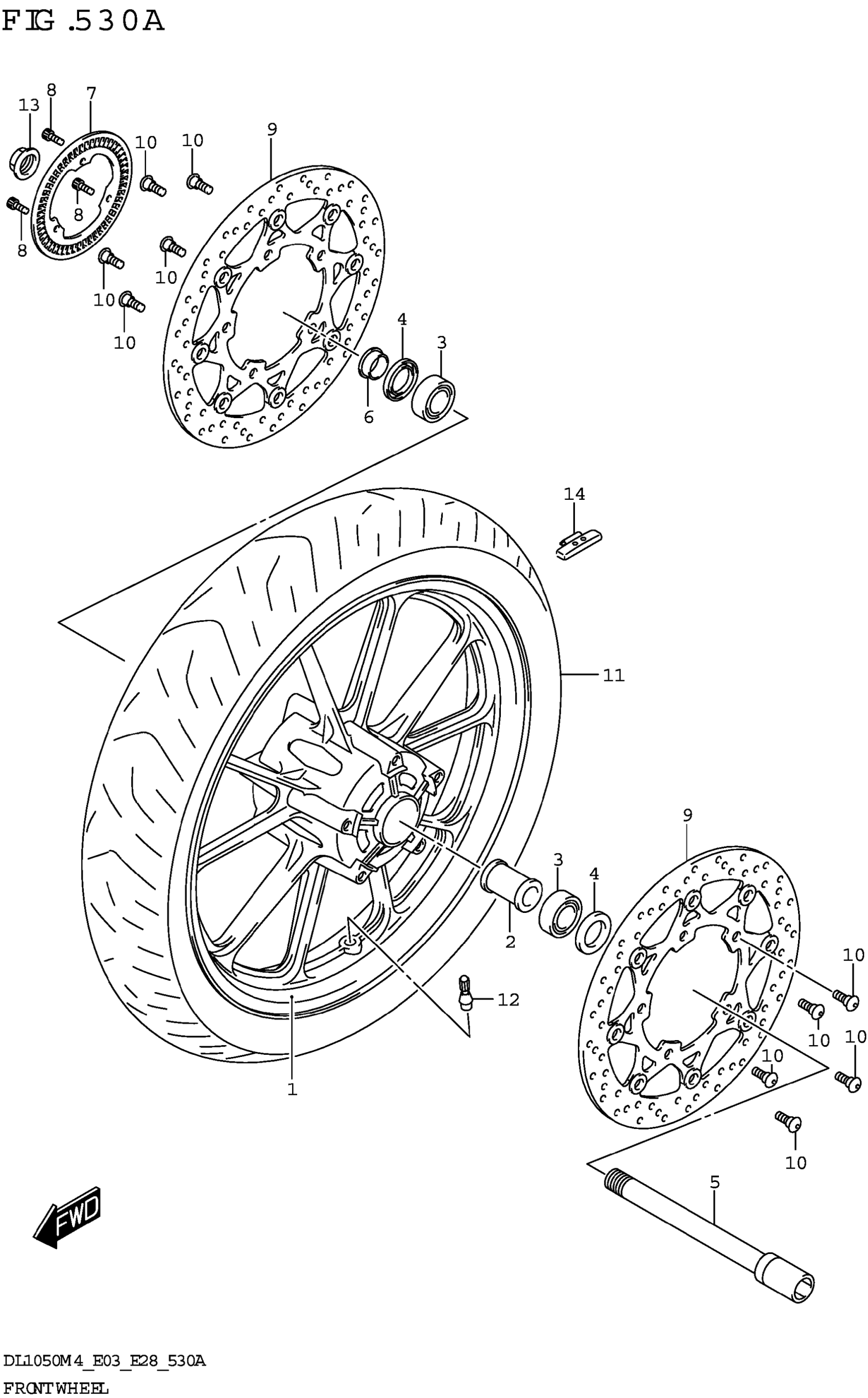

Suzuki DL1050RJM4 (2024) FRONT WHEEL (DL1050RR) Diagram

Description

Price

1-1

WHEEL,FR (BLACK) | BODY COLOR:CGH

54111-31J01-019

$563.17

1-2

WHEEL,FR (BLUE) | BODY COLOR:CGJ,A3X,CQX

54111-31J01-YLY

$532.87

SPACER,FR HUB BEARING

54731-33E20

$55.32

BEARING (25X52X15)

09262-25191

$21.91

.SEAL,OIL (32X52X7)

09285-32004

$7.20

AXLE,FR

54711-31J00

$155.45

SPACER,FR AXLE,R

54751-41G10

$17.99

RING,SPEED SENSOR FR

54162-27G10

$116.12

BOLT

07130-0512A

$2.19

DISC,FRONT BRAKE

59210-31J10

$296.75

BOLT,DISC

09106-08208

$2.70

TIRE,FRONT

55110-06L01

$294.27

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

NUT,FR AXLE

54712-47H00

$46.87

14-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

14-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

14-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93
