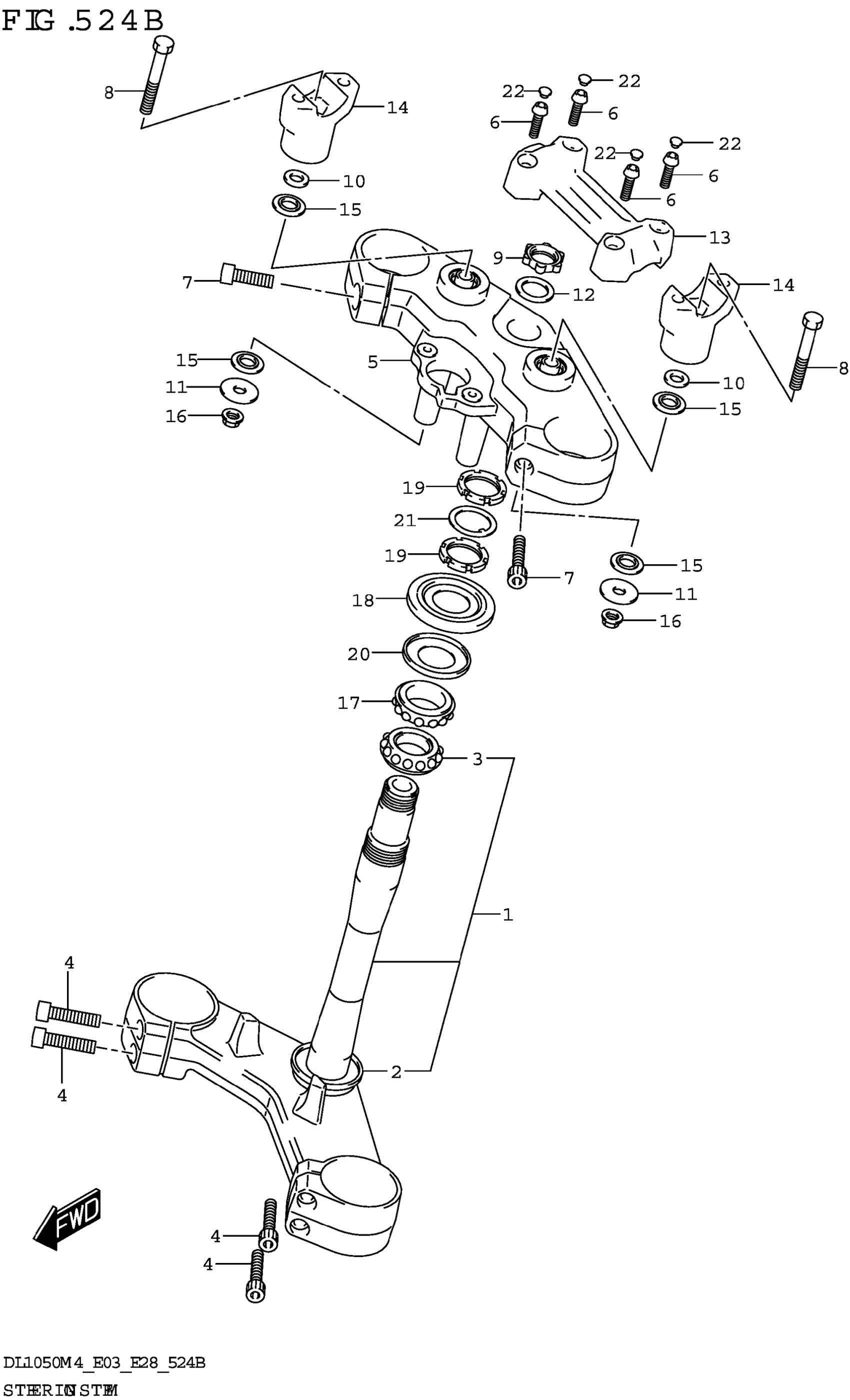

Suzuki DL1050RJM4 (2024) STEERING STEM (DL1050RJ) Diagram

#

Description
Price

1

BRACKET,UNDER

51410-31J00

$586.82

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

3

.BEARING (30X55X17)

09267-30010

$48.11

4

BOLT (8X40)

51166-40H20

$6.35

5

BRACKET,UPPER (SILVER)

51310-06L00-QSC

$352.33

6

BOLT (8X40)

51166-40H20

$6.35

7

BOLT (8X40)

51166-40H20

$6.35

8

BOLT,HANDLE HOLDER LOWER

51321-06L00

$9.20

9

NUT

51353-24F00

$43.68

10

WASHER

51354-17H00

$3.70

11

WASHER

51355-16G00

$5.77

12

WASHER

51356-24F50

$6.52

13

HOLDER,HANDLE UPPER (SILVER)

51331-06L00-QSC

$130.75

14

HOLDER,HANDLE LOWER (SILVER)

51332-06L00-QSC

$95.15

15

RUBBER,HANDLE HOLDER

56245-31J00

$2.85

16

NUT

08319-3110A

$2.73

17

.BEARING (30X55X17)

09267-30010

$48.11

18

COVER,STEERING UPR

51643-41G00

$8.71

19

NUT,STEERING STEM

51631-33E00

$23.64

20

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

21

WASHER,STEERING STEM

51641-33E00

$6.20

22

CAP (OD:10.5)

09250-06015

$2.76
