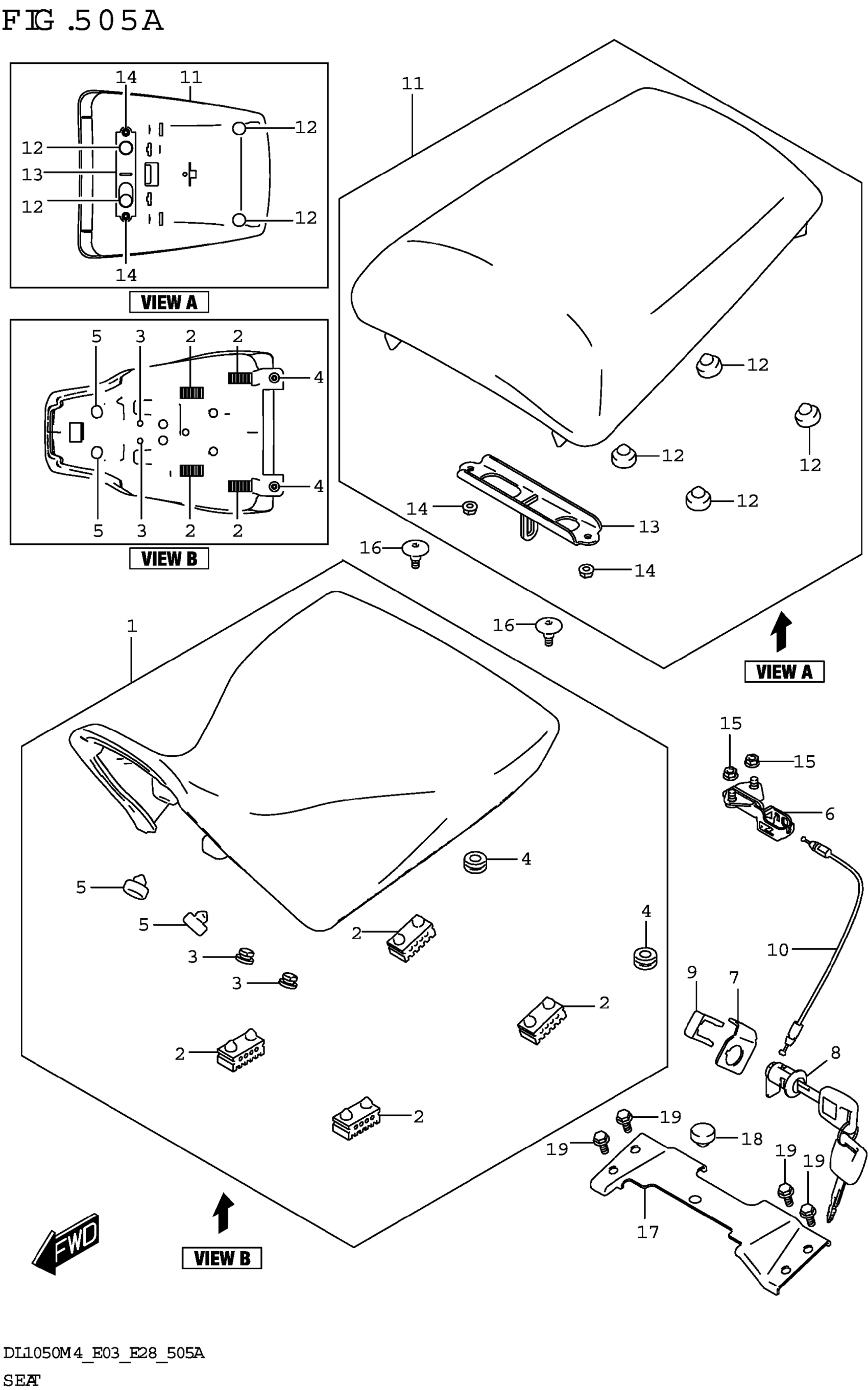

Suzuki DL1050RJM4 (2024) SEAT (DL1050RJ) Diagram

#

Description
Price

1-1

SEAT ASSY (BLUE,BLACK) | BODY COLOR:CD8,JWN

45100-06L20-CGL

$321.72

1-2

SEAT ASSY (GRAY,BLACK) | BODY COLOR:KGL

45100-06L20-B03

$321.72

2

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

3

CUSHION,SEAT MOUNT

45148-27J00

$17.72

4

CUSHION (9X18X10)

09320-09501

$2.03

5

CUSHION

09321-10012

$2.92

6

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

7

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

8

LOCK SET,SEAT

95700-14810

$107.30

9

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

10

CABLE,SEAT LOCK

45280-06L00

$10.43

11-1

SEAT ASSY,PILLION (BLUE,BLACK

45300-06L00-CGL

$142.38

11-2

SEAT ASSY,PILLION (GRAY,BLACK

45300-06L00-B03

$193.10

12

CUSHION

09321-10012

$2.92

13

.STRIKER,SEAT LOCK

45290-17K00

$38.82

14

NUT (6X12)

08316-1006A

$2.19

15

NUT (6X12)

08316-1006A

$2.19

16

SCREW (6X20)

09139-06206

$3.32

17

BRIDGE,SEAT

45121-06L10

$16.95

18

CUSHION

09321-10012

$2.92

19

BOLT

01550-0616A

$1.97
