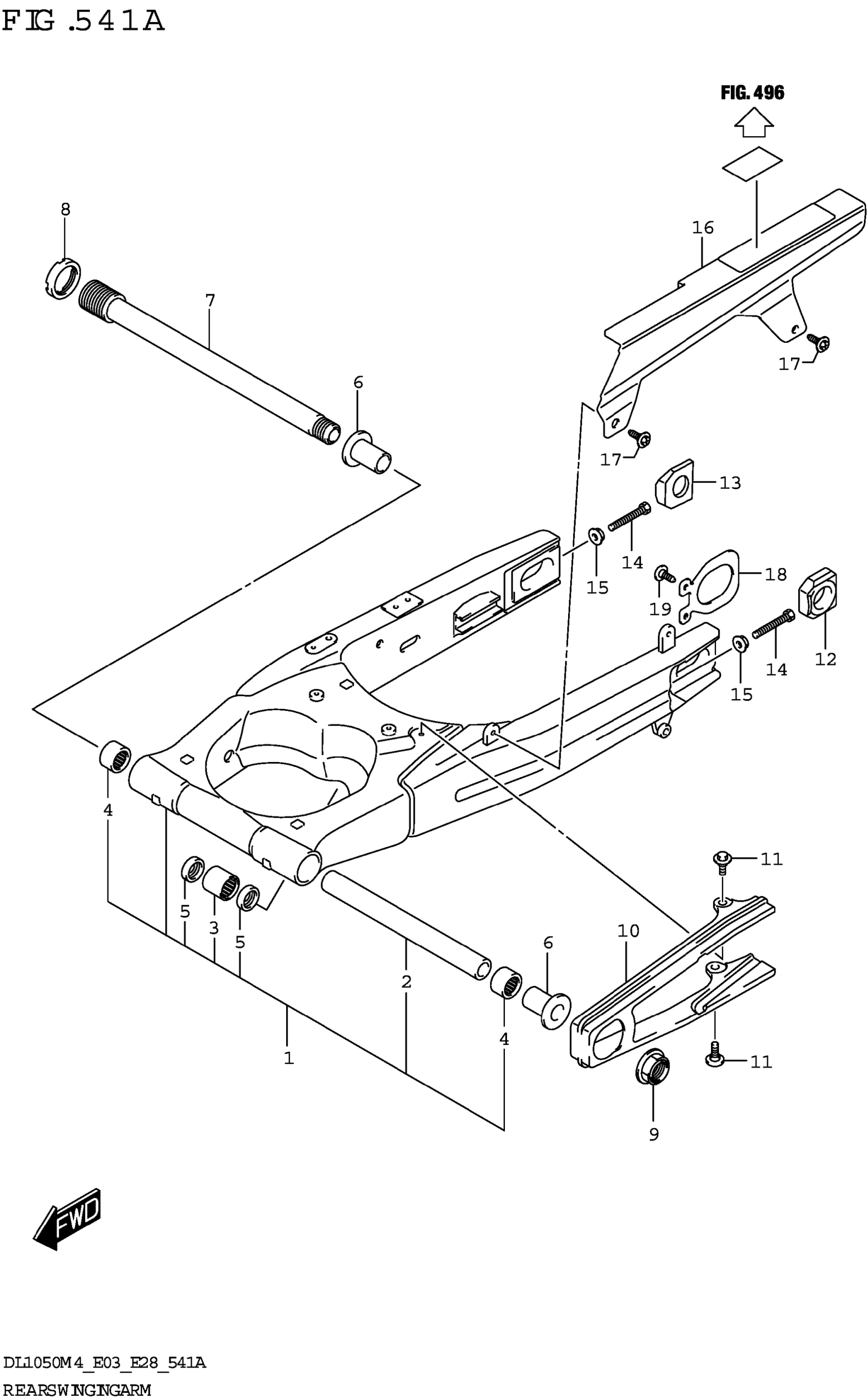

Suzuki DL1050RJM4 (2024) REAR SWINGINGARM (DL1050RJ) Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-31J30-YAP

$1,456.63

2

.SPACER,RR SWGARM PIVOT CTR ( | 0.8X27.2X196.7)

61281-31J00

Unavailable

3

.BEARING,RR CUSHION ROD

09263-20122

$16.55

4

.BEARING (27X35X35)

09263-27015

$24.86

5

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

6

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$36.12

7

SHAFT,RR SWGARM PIVOT

61211-31J00

Unavailable

8

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$48.00

9

NUT

09159-20006

$34.67

10

BUFFER,CHAIN TOUCH DEFENSE

61273-31J10

$32.62

11

SCREW (6X17.8)

09139-06226

$3.67

12

ADJUSTER,CHAIN

61446-40F00

$43.20

13

ADJUSTER,CHAIN

61445-40F00

$43.20

14

BOLT (8X50)

09100-08287

$2.80

15

NUT

08316-1008A

$2.47

16

CASE,CHAIN

61310-16G00

$111.05

17

BOLT (6X12)

09139-06225

$2.80

18

PLATE,RR SWING ARM BRKT

61124-33E00

$6.27

19

SCREW (6X12)

09125-06060

$1.95
