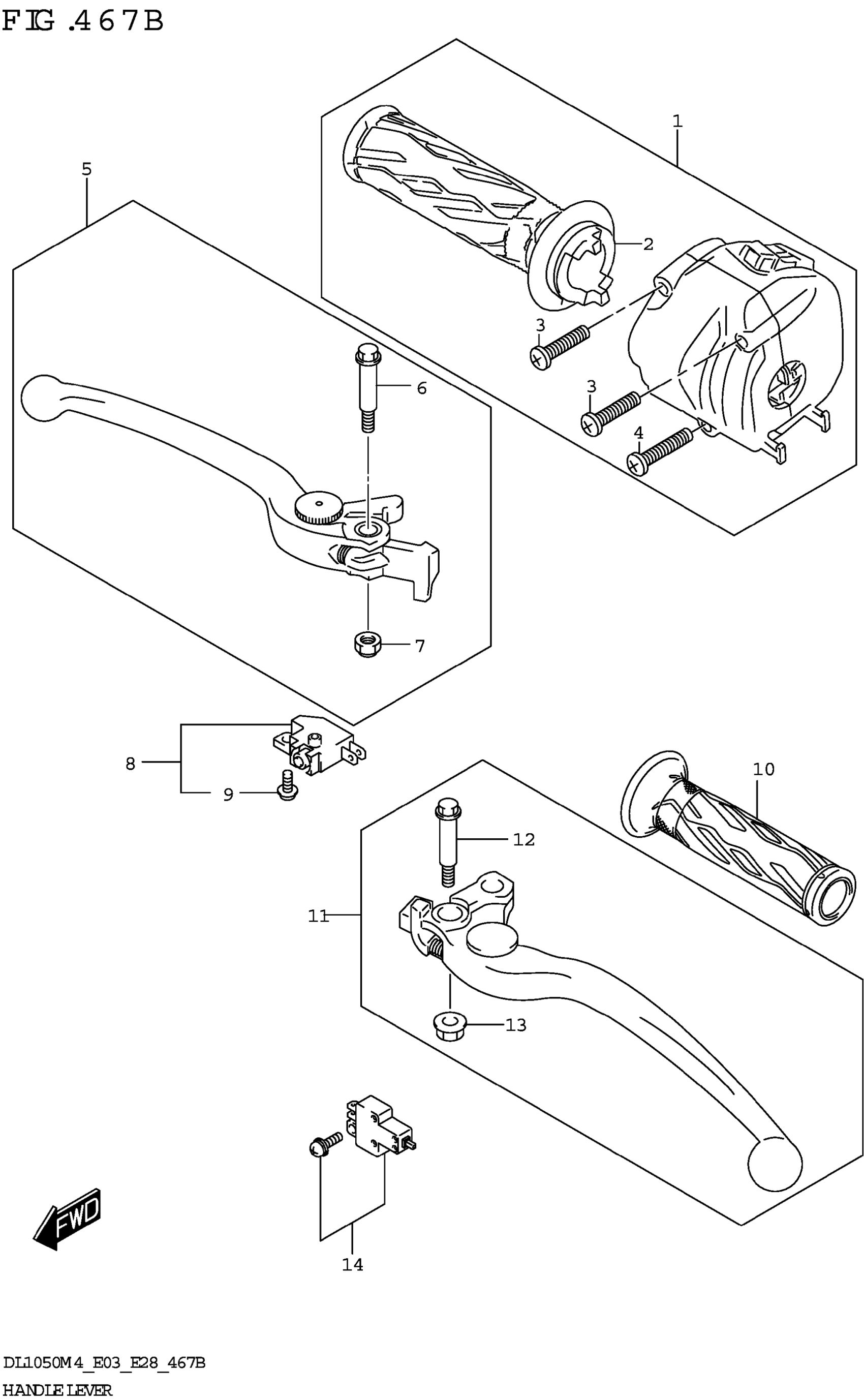

Suzuki DL1050RJM4 (2024) HANDLE LEVER (DL1050RR) Diagram

#

Description

Price

1

GRIP ASSY,THROTTLE This part replaces 57100-06L90.

57100-06L91

$325.75

2

.GRIP,THROTTLE This part replaces 57110-06L00.

57110-06L10

$25.42

3

.SCREW

02112-0530B

$1.49

4

.SCREW

02112-0540B

$2.70

5

LEVER ASSY,FRONT BRAKE

57300-10G40

$67.22

6

.BOLT,LEVER PIVOT

57431-17H02

$7.13

7

.NUT

08319-2106A

$1.91

8

SWITCH ASSY,FR BRAKE

57460-14J02

$38.46

9

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

10

GRIP,L

57211-21H01

$11.13

11

LEVER ASSY, CLUTCH

57500-24F40

$76.60

12

.BOLT,LEVER PIVOT

57431-17H02

$7.13

13

NUT This part replaces 57442-14500.

08316-1006B

$2.50

14

SWITCH ASSY,CLUTCH

57560-02FA0

$23.58
