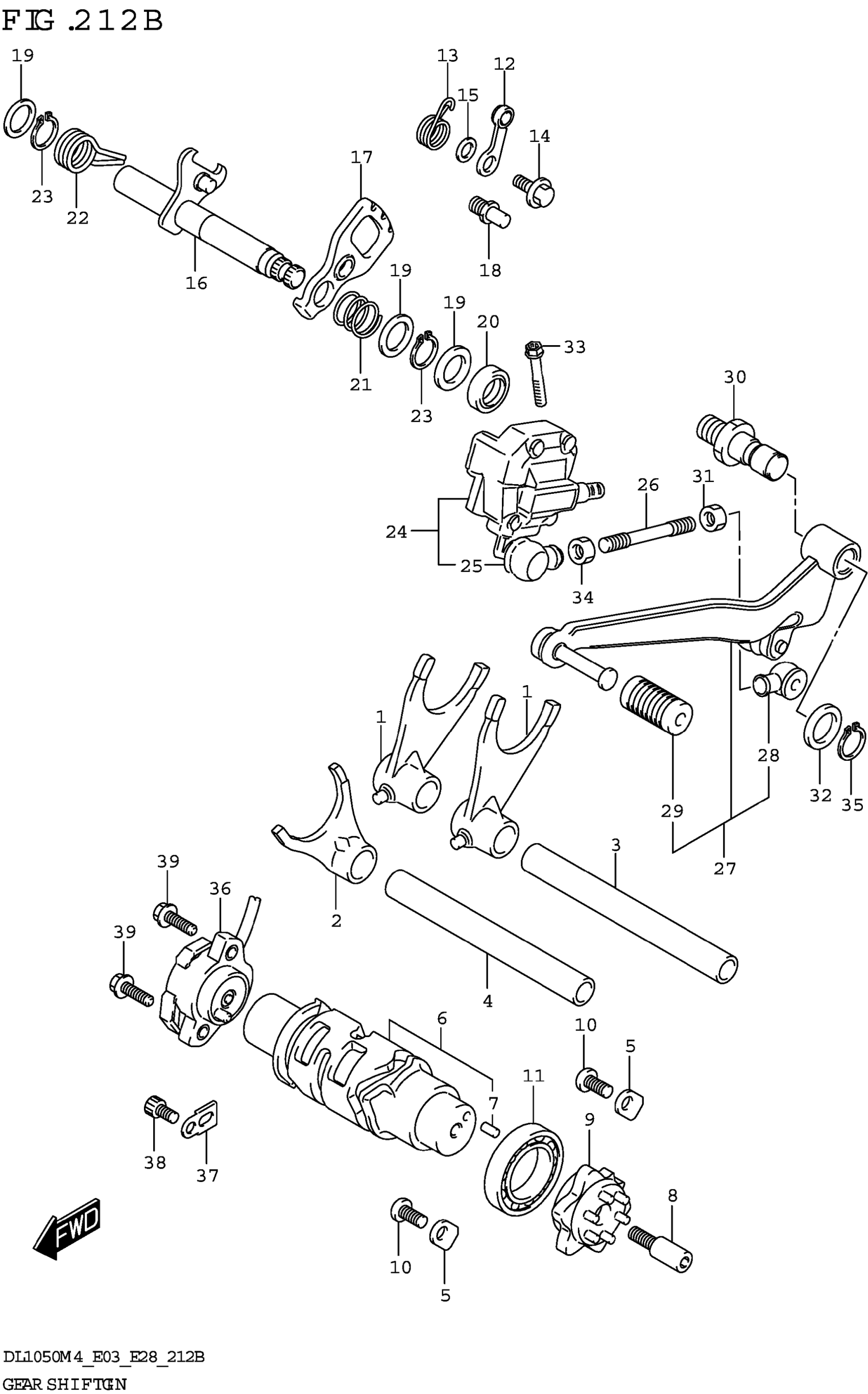

Suzuki DL1050RJM4 (2024) GEAR SHIFTING (DL1050RJ) Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-35F11

$86.59

2

FORK,GEAR SHIFT,NO.3

25231-35F00

$105.82

3

SHIFT,GEAR SHIFT FORK

25411-02F20

$19.55

4

SHIFT,GEAR SHIFT FORK

25411-02F20

$19.55

5

RETAINER

24741-21A00

$2.81

6

CAM,GEAR SHIFT

25310-31J10

$96.80

7

PIN (4X13.8)

04221-04089

$1.49

8

BOLT,GEAR SHIFT CAM PLATE

25312-17K00

$23.08

9

PLATE,GEAR SHIFT CAM

25381-17K00

$43.73

10

SCREW (6X12)

09125-06122

$2.44

11

BEARING

08113-69050

$35.66

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

13

SPRING,GEAR SHIFT CAM STOPPER

25355-38F00

$4.88

14

BOLT (6X14.3)

09111-06041

$2.61

15

WASHER

08211-06141

$1.59

16

SHAFT,GEAR SHIFT

25510-06L00

$58.47

17

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$24.37

18

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

19

SHIM (14X22X1.0)

09181-14167

$2.53

20

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

21

SPRING

09440-17009

$1.71

22

SPRING,GEAR SHIFT SHAFT RETUR

25518-06L00

$4.80

23

CIRCLIP

08331-3114A

$1.91

24

SENSOR ASSY,GEAR SHIFT

25500-48K10

$572.27

25

.COVER, DUST

25526-47001

$5.44

26

ROD,GEAR SHIFT LINK (L:90)

25525-11C00

$8.33

27

LEVER ASSY,GEAR SHIFT

25600-06L10

$83.37

28

.COVER, DUST

25526-47001

$5.44

29

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$5.44

30

SHAFT,GEAR SHIFT LEVER

25617-03F10

$12.33

31

NUT

09140-06025

$2.05

32

WASHER (12.5X20X1.0)

09160-12011

$1.54

33

BOLT (L:35)

09103-06530

$2.10

34

NUT

09140-06020

$2.02

35

CIRCLIP

08331-3112A

$1.78

36

SENSOR ASSY,GEAR POSITION

37730-06L00

$122.63

37

CLAMP,MAGNETO LEAD

31497-45000

$1.92

38

BOLT

07130-0510A

$2.68

39

BOLT (5X16)

09106-05023

$2.92
