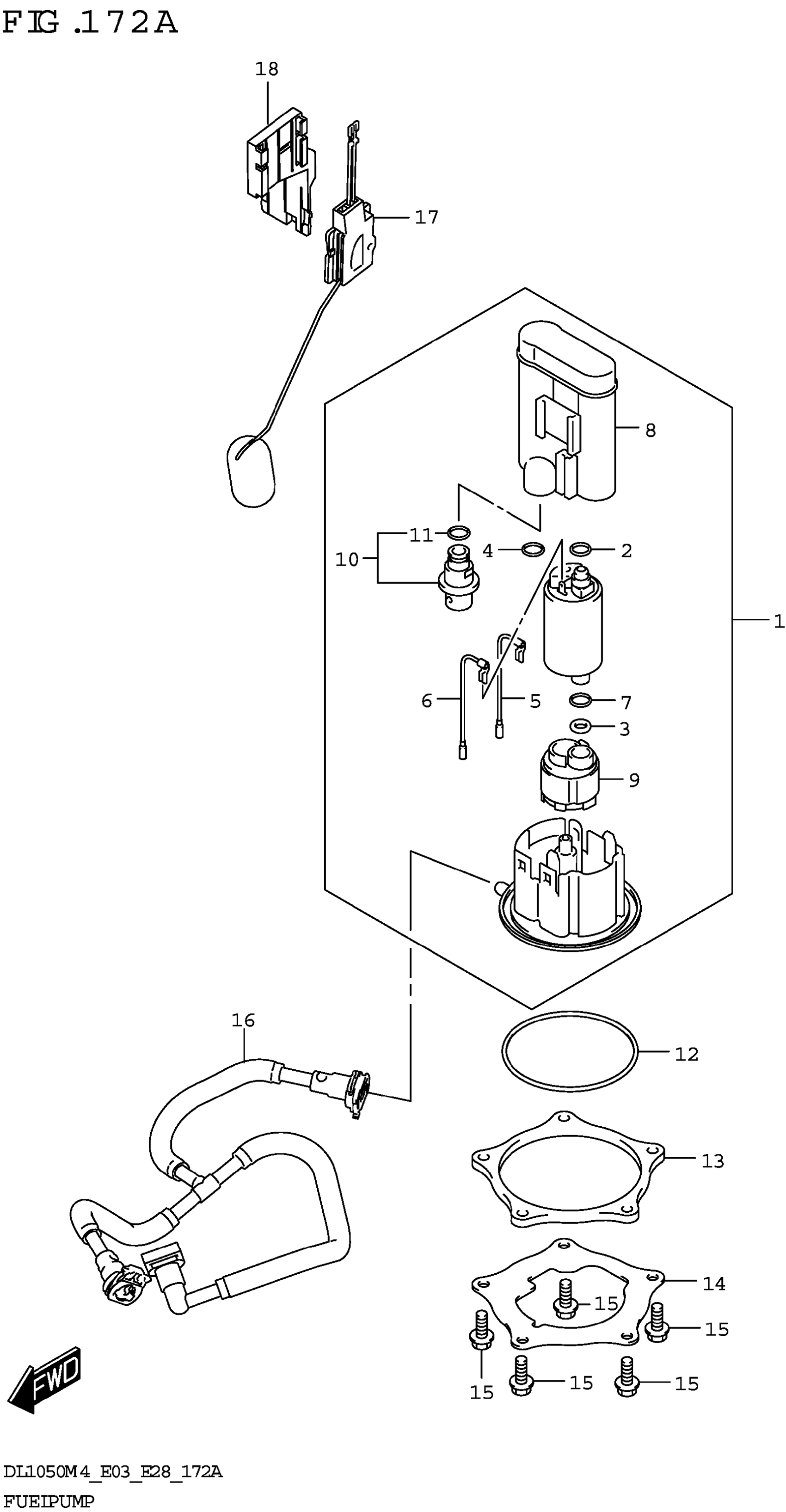

Suzuki DL1050RJM4 (2024) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-28K00

$521.35

2

.O-RING

15113-05H00

$19.98

3

.O-RING

15113-17K00

$31.85

4

.O-RING

15113-35F00

$8.91

5

.WIRE,EARTH

15114-17K00

$40.03

6

.WIRE,LEAD

15115-17K00

$40.03

7

.COLLAR

15116-17K00

$18.27

8

.FILTER

15310-17K00

$78.67

9

.STRAINER

15420-17K00

$99.42

10

.REGULATOR

15610-17K00

Unavailable

11

..O-RING

15113-48H00

$16.97

12

O-RING,FUEL PUMP

15201-07L00

$21.00

13

PLATE,FUEL PUMP INNER

15122-17K00

$43.73

14

PLATE,FUEL PUMP OUTER

15121-28K00

$11.17

15

BOLT

07120-0616A

$2.53

16

HOSE,FUEL

15810-06L00

$108.28

17

GAUGE ASSY,FUEL LEVEL SENDER

34810-06L00

$99.03

18

ATTACHMENT,FUEL LEVEL GAUGE

34815-06L00

$13.25
